Text version of the page
Cutting
Diameter
d1
mm
Length
of Cut
l2
mm
Overall
Length
l1
mm
Shank
Diameter
d2
mm
Reach
l3
mm
Corner
Radius
Ti-NAMITE-A
(AITiN)
EDP
Number
3 4 57 6 15 0,2 46560
4 5 57 6 15 0,3 46561
5 6 57 6 15 0,5 46562
6 7 57 6 15 1 46563
8 10 63 8 25 1 46564
10 12 72 10 30 1 46565
12 15 83 12 35 1 46566
16 20 92 16 45 1,5 46567
20 24 104 20 55 2 46568
Tolerances (mm)
Diameter d1 d2
3 – 6 +0,000/–0,030
6 +0,000/–0,030
6 – 10 h6
> 6 – 10 +0,000/–0,040
> 10 – 20 +0,000/–0,050 h6
Corner Radius Tolerances
+0,000/–0,050
www.sgstool.com
Metric

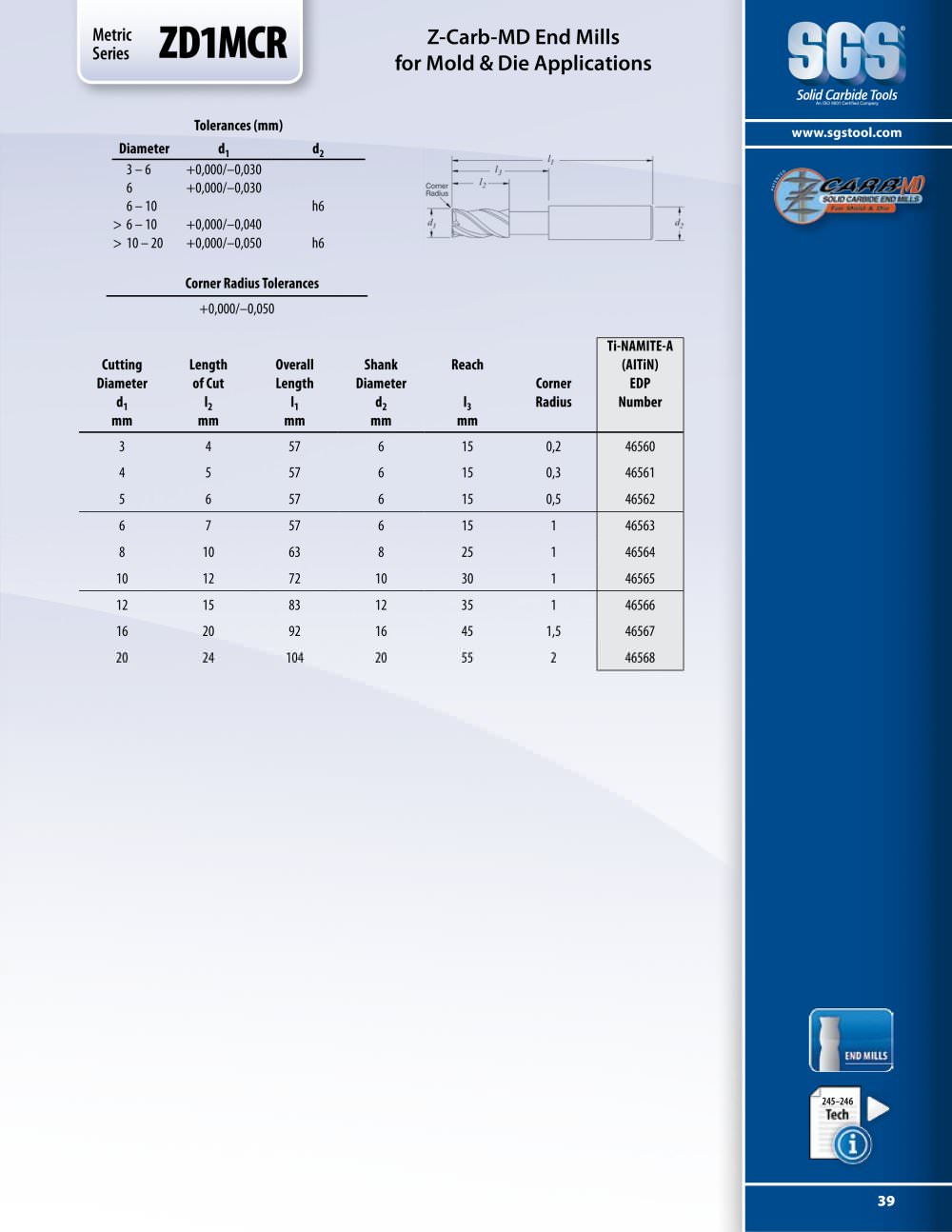

Series ZD1MCR Z-Carb-MD End Mills
for Mold & Die Applications
245–246
39
