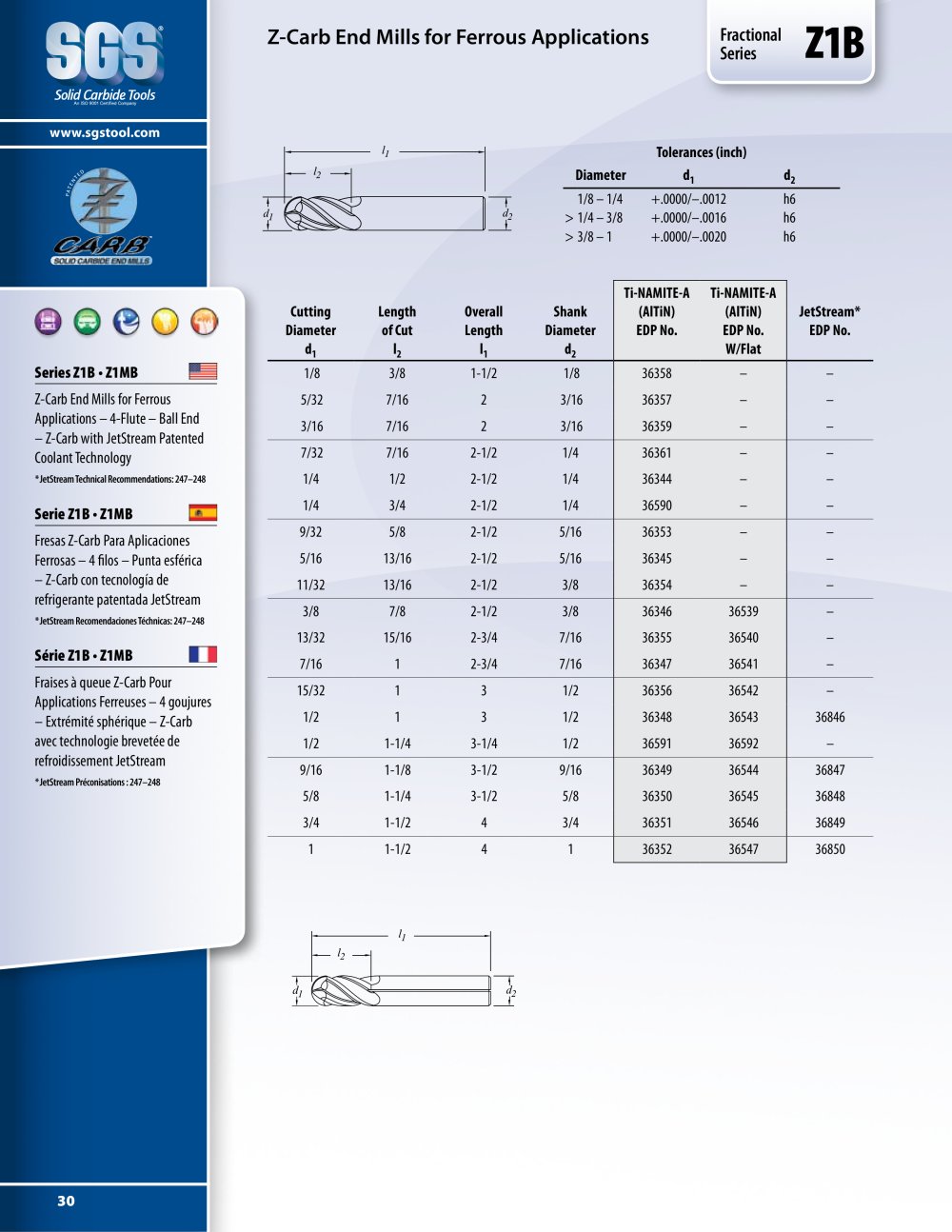

Tolerances (inch) Diameter d1 d2 1/8 – 1/4 +.0000/–.0012 h6 > 1/4 – 3/8 +.0000/–.0016 h6 > 3/8 – 1 +.0000/–.0020 h6 Cutting Diameter d1 Length of Cut l2 Overall Length l1 Shank Diameter d2 Ti-NAMITE-A (AlTiN) EDP No. Ti-NAMITE-A (AlTiN) EDP No. W/Flat JetStream* EDP No. 1/8 3/8 1-1/2 1/8 36358 – – 5/32 7/16 2 3/16 36357 – – 3/16 7/16 2 3/16 36359 – – 7/32 7/16 2-1/2 1/4 36361 – – 1/4 1/2 2-1/2 1/4 36344 – – 1/4 3/4 2-1/2 1/4 36590 – – 9/32 5/8 2-1/2 5/16 36353 – – 5/16 13/16 2-1/2 5/16 36345 – – 11/32 13/16 2-1/2 3/8 36354 – – 3/8 7/8 2-1/2 3/8 36346 36539 – 13/32 15/16 2-3/4 7/16 36355 36540 – 7/16 1 2-3/4 7/16 36347 36541 – 15/32 1 3 1/2 36356 36542 – 1/2 1 3 1/2 36348 36543 36846 1/2 1-1/4 3-1/4 1/2 36591 36592 – 9/16 1-1/8 3-1/2 9/16 36349 36544 36847 5/8 1-1/4 3-1/2 5/8 36350 36545 36848 3/4 1-1/2 4 3/4 36351 36546 36849 1 1-1/2 4 1 36352 36547 36850 www.sgstool.com Series Z1B • Z1MB Z-Carb End Mills for Ferrous Applications – 4-Flute – Ball End – Z-Carb with JetStream Patented Coolant Technology * JetStream Technical Recommendations: 247–248 Serie Z1B • Z1MB Fresas Z-Carb Para Aplicaciones Ferrosas – 4 filos – Punta esférica – Z-Carb con tecnología de refrigerante patentada JetStream * JetStream Recomendaciones Téchnicas: 247–248 Série Z1B • Z1MB Fraises à queue Z-Carb Pour Applications Ferreuses – 4 goujures – Extrémité sphérique – Z-Carb avec technologie brevetée de refroidissement JetStream * JetStream Préconisations : 247–248 Fractional Z1B Series Z-Carb End Mills for Ferrous Applications 30
