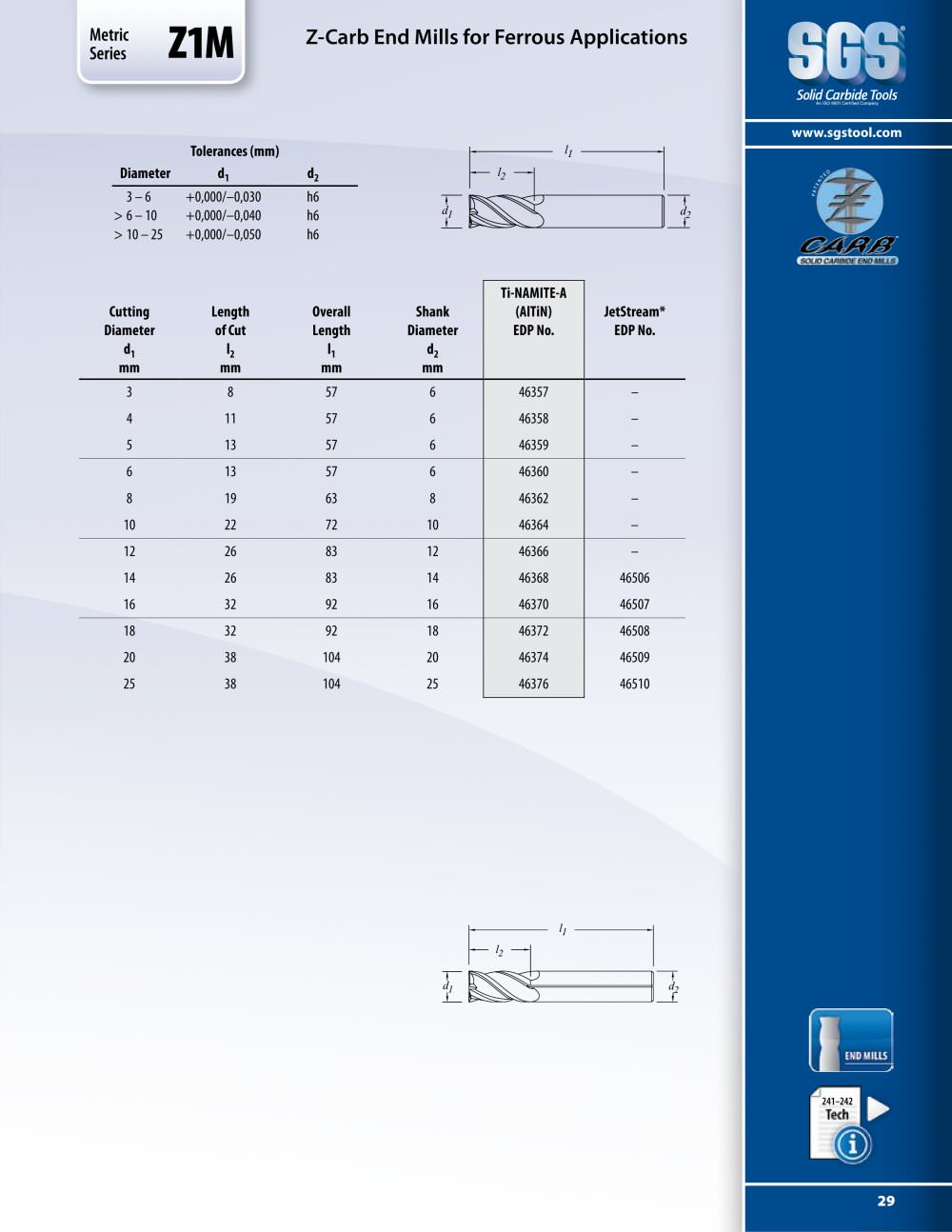

Tolerances (mm)
Diameter d1 d2
3 – 6 +0,000/–0,030 h6
> 6 – 10 +0,000/–0,040 h6
> 10 – 25 +0,000/–0,050 h6
Cutting
Diameter
d1
mm
Length
of Cut
l2
mm
Overall
Length
l1
mm
Shank
Diameter
d2
mm
Ti-NAMITE-A
(AlTiN)
EDP No.
JetStream*
EDP No.
3 8 57 6 46357 –
4 11 57 6 46358 –
5 13 57 6 46359 –
6 13 57 6 46360 –
8 19 63 8 46362 –
10 22 72 10 46364 –
12 26 83 12 46366 –
14 26 83 14 46368 46506
16 32 92 16 46370 46507
18 32 92 18 46372 46508
20 38 104 20 46374 46509
25 38 104 25 46376 46510
www.sgstool.com
Metric Z1M Z-Carb End Mills for Ferrous Applications
