Text version of the page
Nominal
Cutting
Diameter
d1
Actual
Cutting
Diameter
Shank
Diameter
d2
Length
of Cut
l2
Overall
Length
l1
(TiCN)
Ti-NAMITE-C
0.015
EDP No.
(TiCN)
Ti-NAMITE-C
0.020
EDP No.
(TiCN)
Ti-NAMITE-C
0.030
EDP No.
(TiCN)
Ti-NAMITE-C
0.045
EDP No.
(TiCN)
Ti-NAMITE-C
0.060
EDP No.
(TiCN)
Ti-NAMITE-C
0.090
EDP No.
(TiCN)
Ti-NAMITE-C
0.125
EDP No.
Series
Number
1/8 .1240/.1230 1/8 1/2 1-1/2 38315 38316 3CR
3/16 .1865/.1855 3/16 5/8 2 38317 38318 38319 3CR
1/4 .2490/.2480 1/4 3/4 2-1/2 38320 38321 38322 38323 3CR
5/16 .3115/.3105 5/16 13/16 2-1/2 38324 38325 38326 38327 3CR
*3/8 .3740/.3730 3/8 1 2-1/2 38328 38329 38330 38331 3CR
*1/2 .4990/.4980 1/2 1 3 38332 38333 38334 38335 38336 3CR
*5/8 .6240/.6230 5/8 1-1/4 3-1/2 38337 38338 38339 38340 38341 38342 3CR
*3/4 .7490/.7480 3/4 1-1/2 4 38343 38344 38345 38346 38347 38348 38349 3CR
*1 .9990/.9980 1 1-1/2 4 38350 38351 38352 38353 38354 38355 38356 3CR
Nominal
Cutting
Diameter
d1
Actual
Cutting
Diameter
Shank
Diameter
d2
Length
of Cut
l2
Overall
Length
l1
(AlTiN)
Ti-NAMITE-A
0.015
EDP No.
(AlTiN)
Ti-NAMITE-A
0.020
EDP No.
(AlTiN)
Ti-NAMITE-A
0.030
EDP No.
(AlTiN)
Ti-NAMITE-A
0.045
EDP No.
(AlTiN)
Ti-NAMITE-A
0.060
EDP No.
(AlTiN)
Ti-NAMITE-A
0.090
EDP No.
(AlTiN)
Ti-NAMITE-A
0.125
EDP No.
Series
Number
1/8 .1240/.1230 1/8 1/2 1-1/2 38357 38358 3CR
3/16 .1865/.1855 3/16 5/8 2 38359 38360 38361 3CR
1/4 .2490/.2480 1/4 3/4 2-1/2 38362 38363 38364 38365 3CR
5/16 .3115/.3105 5/16 13/16 2-1/2 38366 38367 38368 38369 3CR
*3/8 .3740/.3730 3/8 1 2-1/2 38370 38371 38372 38373 3CR
*1/2 .4990/.4980 1/2 1 3 38374 38375 38376 38377 38378 3CR
*5/8 .6240/.6230 5/8 1-1/4 3-1/2 38379 38380 38381 38382 38383 38384 3CR
*3/4 .7490/.7480 3/4 1-1/2 4 38385 38386 38387 38388 38389 38390 38391 3CR
*1 .9990/.9980 1 1-1/2 4 38392 38393 38394 38395 38396 38397 38398 3CR
TOLERANCES
d1=.001.002
d2=h6
r=+.000.002
www.sgstool.com

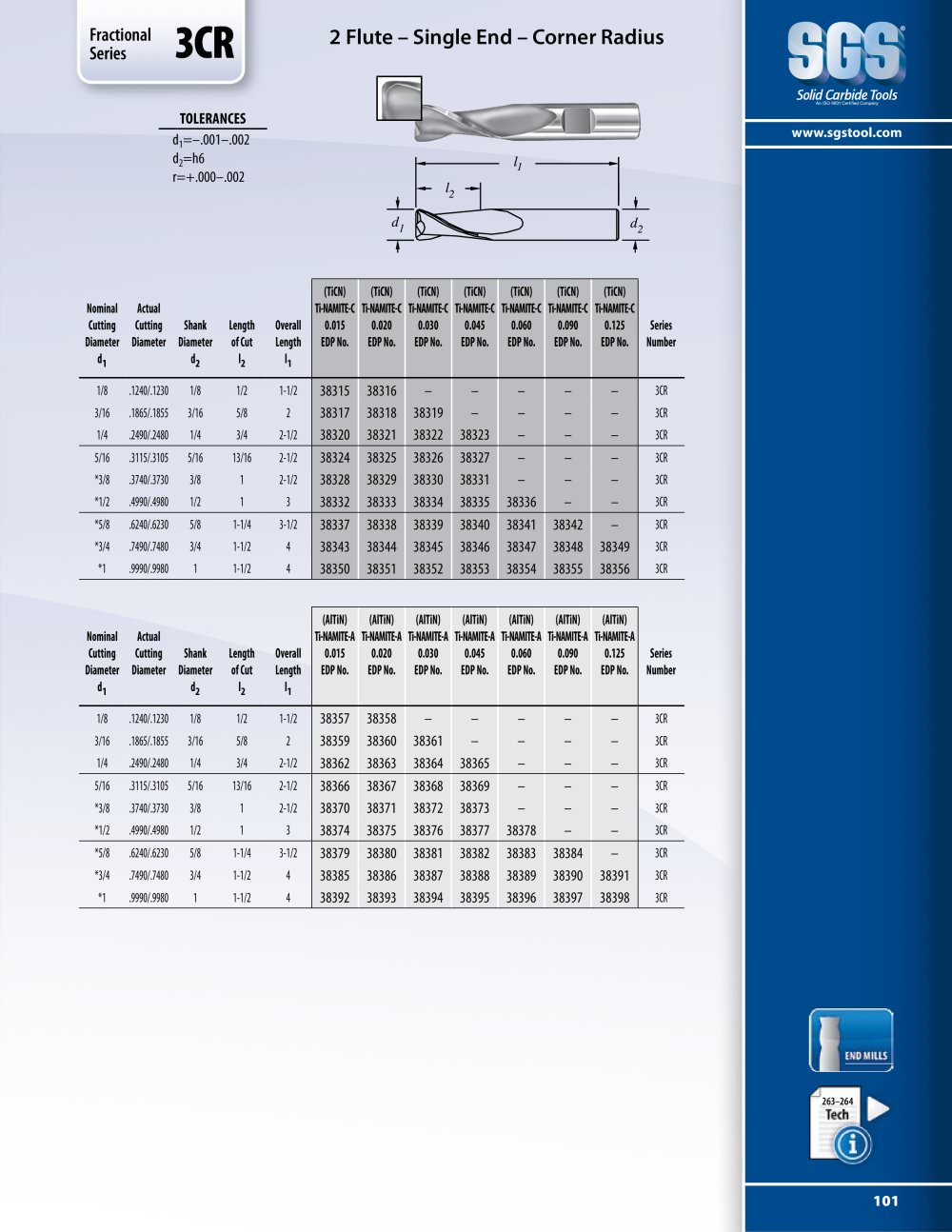

Fractional 2 Flute Single End Corner Radius
Series 3CR
263264
101
