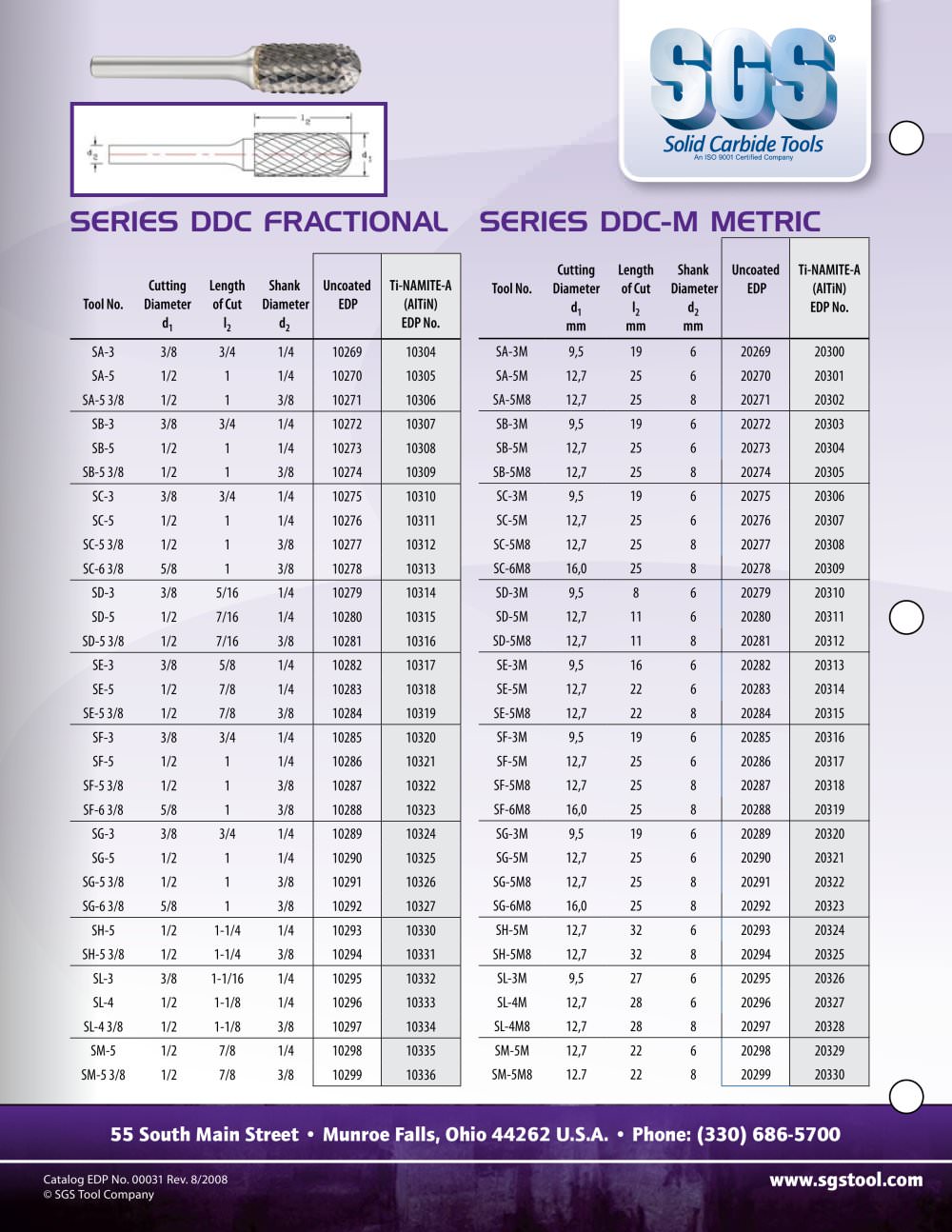

| | | | | | | | | | | | | | | | | | | An ISO 9001 Certified Company | | | | | | | | | | SERIES DDC FRACTIONAL SERIES DDC-M METRIC | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Tool No. | Cutting Diameter d1 | Length of Cut | Shank Diameter d2 | Uncoated EDP | Ti-NAMITE-A (AlTiN) EDP No. | Tool No. | Cutting Diameter mm | Length of Cut l2 mm | Shank Diameter d2 mm | Uncoated EDP | Ti-NAMITE-A (AlTiN) EDP No. | | | | SA-3 | 3/8 | 3/4 | 1/4 | 10269 | 10304 | SA-3M | 9,5 | 19 | 6 | 20269 | 20300 | | | | SA-5 | 1/2 | 1 | 1/4 | 10270 | 10305 | SA-5M | 12,7 | 25 | 6 | 20270 | 20301 | | | | SA-5 3/8 | 1/2 | 1 | 3/8 | 10271 | 10306 | SA-5M8 | 12,7 | 25 | 8 | 20271 | 20302 | | | | SB-3 | 3/8 | 3/4 | 1/4 | 10272 | 10307 | SB-3M | 9,5 | 19 | 6 | 20272 | 20303 | | | | SB-5 | 1/2 | 1 | 1/4 | 10273 | 10308 | SB-5M | 12,7 | 25 | 6 | 20273 | 20304 | | | | SB-5 3/8 | 1/2 | 1 | 3/8 | 10274 | 10309 | SB-5M8 | 12,7 | 25 | 8 | 20274 | 20305 | | | | SC-3 | 3/8 | 3/4 | 1/4 | 10275 | 10310 | SC-3M | 9,5 | 19 | 6 | 20275 | 20306 | | | | SC-5 | 1/2 | 1 | 1/4 | 10276 | 10311 | SC-5M | 12,7 | 25 | 6 | 20276 | 20307 | | | | SC-5 3/8 | 1/2 | 1 | 3/8 | 10277 | 10312 | SC-5M8 | 12,7 | 25 | 8 | 20277 | 20308 | | | | SC-6 3/8 | 5/8 | 1 | 3/8 | 10278 | 10313 | SC-6M8 | 16,0 | 25 | 8 | 20278 | 20309 | | | | SD-3 | 3/8 | 5/16 | 1/4 | 10279 | 10314 | SD-3M | 9,5 | 8 | 6 | 20279 | 20310 | | | | SD-5 | 1/2 | 7/16 | 1/4 | 10280 | 10315 | SD-5M | 12,7 | 11 | 6 | 20280 | 20311 | | | | SD-5 3/8 | 1/2 | 7/16 | 3/8 | 10281 | 10316 | SD-5M8 | 12,7 | 11 | 8 | 20281 | 20312 | | | | SE-3 | 3/8 | 5/8 | 1/4 | 10282 | 10317 | SE-3M | 9,5 | 16 | 6 | 20282 | 20313 | | | | SE-5 | 1/2 | 7/8 | 1/4 | 10283 | 10318 | SE-5M | 12,7 | 22 | 6 | 20283 | 20314 | | | | SE-5 3/8 | 1/2 | 7/8 | 3/8 | 10284 | 10319 | SE-5M8 | 12,7 | 22 | 8 | 20284 | 20315 | | | | SF-3 | 3/8 | 3/4 | 1/4 | 10285 | 10320 | SF-3M | 9,5 | 19 | 6 | 20285 | 20316 | | | | SF-5 | 1/2 | 1 | 1/4 | 10286 | 10321 | SF-5M | 12,7 | 25 | 6 | 20286 | 20317 | | | | SF-5 3/8 | 1/2 | 1 | 3/8 | 10287 | 10322 | SF-5M8 | 12,7 | 25 | 8 | 20287 | 20318 | | | | SF-6 3/8 | 5/8 | 1 | 3/8 | 10288 | 10323 | SF-6M8 | 16,0 | 25 | 8 | 20288 | 20319 | | | | SG-3 | 3/8 | 3/4 | 1/4 | 10289 | 10324 | SG-3M | 9,5 | 19 | 6 | 20289 | 20320 | | | | SG-5 | 1/2 | 1 | 1/4 | 10290 | 10325 | SG-5M | 12,7 | 25 | 6 | 20290 | 20321 | | | | SG-5 3/8 | 1/2 | 1 | 3/8 | 10291 | 10326 | SG-5M8 | 12,7 | 25 | 8 | 20291 | 20322 | | | | SG-6 3/8 | 5/8 | 1 | 3/8 | 10292 | 10327 | SG-6M8 | 16,0 | 25 | 8 | 20292 | 20323 | | | | SH-5 | 1/2 | 1-1/4 | 1/4 | 10293 | 10330 | SH-5M | 12,7 | 32 | 6 | 20293 | 20324 | | | | SH-5 3/8 | 1/2 | 1-1/4 | 3/8 | 10294 | 10331 | SH-5M8 | 12,7 | 32 | 8 | 20294 | 20325 | | | | SL-3 | 3/8 | 1-1/16 | 1/4 | 10295 | 10332 | SL-3M | 9,5 | 27 | 6 | 20295 | 20326 | | | | SL-4 | 1/2 | 1-1/8 | 1/4 | 10296 | 10333 | SL-4M | 12,7 | 28 | 6 | 20296 | 20327 | | | | SL-4 3/8 | 1/2 | 1-1/8 | 3/8 | 10297 | 10334 | SL-4M8 | 12,7 | 28 | 8 | 20297 | 20328 | | | | SM-5 | 1/2 | 7/8 | 1/4 | 10298 | 10335 | SM-5M | 12,7 | 22 | 6 | 20298 | 20329 | | | | SM-5 3/8 | 1/2 | 7/8 | 3/8 | 10299 | 10336 | SM-5M8 | 12.7 | 22 | 8 | 20299 | 20330 | | | | | | | | | | | | | | | | | | | | | | | | | | | 55 South Main Street • Munroe Falls, Ohio 44262 U.S.A. • Phone: (330) 686-5700 Catalog EDP No. 00031 Rev. 8/2008 . B ' . ./'.V** r. WWW.SgStOOl.COm © SGS Tool Company | | | | | | | | | | | | | | | | | | |
|
