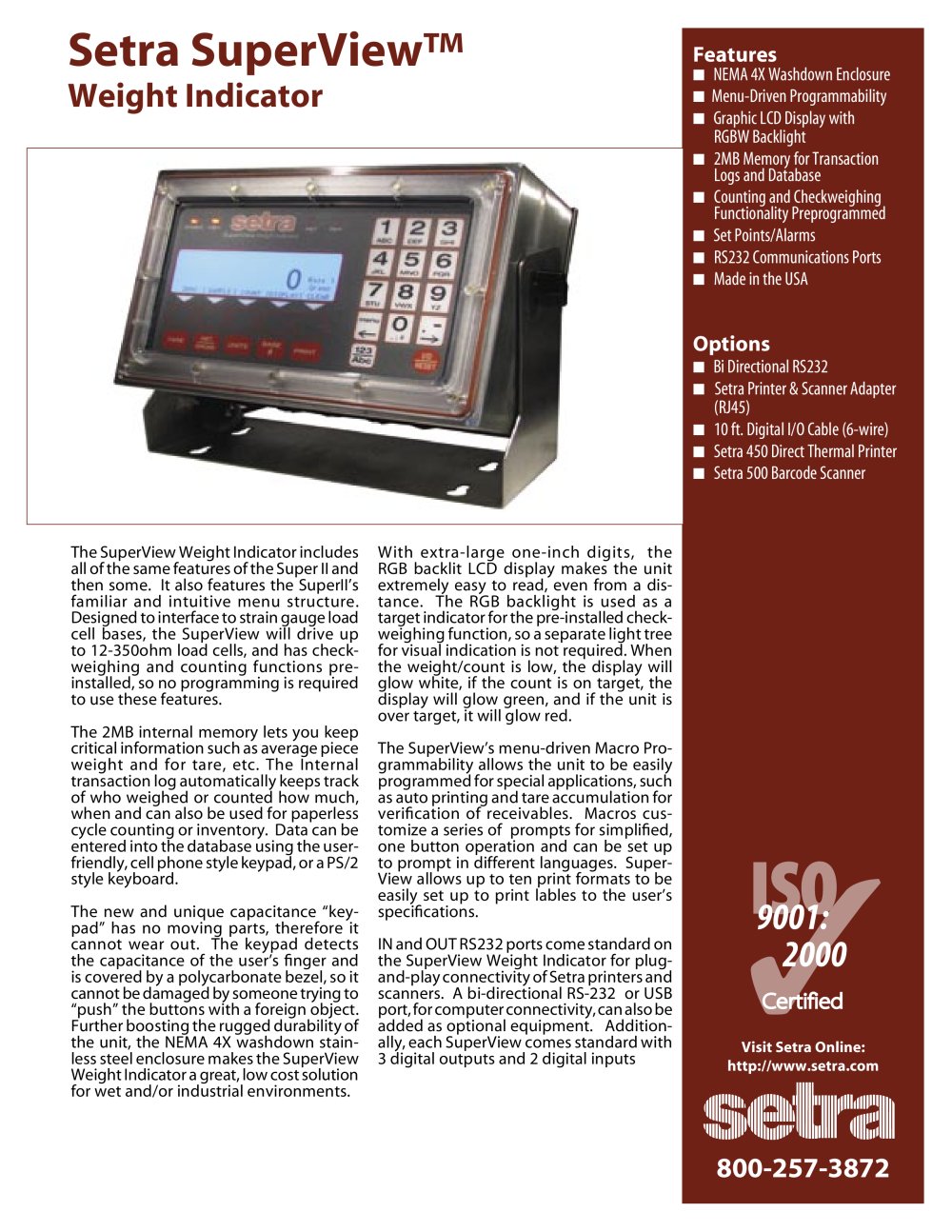

| Setra SuperView™ Weight Indicator | | |||||||||
| Features ■ NEMA 4X Washdown Enclosure ■ Menu-Driven Programmability ■ Graphic LCD Display with RGBW Backlight ■ 2MB Memory for Transaction Logs and Database ■ Counting and Checkweighing Functionality Preprogrammed ■ Set Points/Alarms ■ RS232 Communications Ports ■ Made in the USA | | |||||||||
| | m 'S S I | | ||||||||
| | ||||||||||
| | Options ■ Bi Directional RS232 ■ Setra Printer & Scanner Adapter (RJ45) ■ 10 ft. Digital I/O Cable (6-wire) ■ Setra 450 Direct Thermal Printer ■ Setra 500 Barcode Scanner | | ||||||||
| | ||||||||||
| | ||||||||||
| The SuperView Weight Indicator includes all of the same features of the Super II and then some. It also features the Superll's familiar and intuitive menu structure. Designed to interface to strain gauge load cell bases, the SuperView will drive up to 12-350ohm load cells, and has check-weighing and counting functions pre-installed, so no programming is required to use these features. The 2MB internal memory lets you keep critical information such as average piece weight and for tare, etc. The Internal transaction log automatically keeps track of who weighed or counted how much, when and can also be used for paperless cycle counting or inventory. Data can be entered into the database using the user-friendly, cell phone style keypad, or a PS/2 style keyboard. The new and unique capacitance "keypad" has no moving parts, therefore it cannot wear out. The keypad detects the capacitance of the user's finger and is covered by a polycarbonate bezel, so it cannot be damaged by someone trying to "push" the buttons with a foreign object. Further boosting the rugged durability of the unit, the NEMA 4X washdown stainless steel enclosure makes the SuperView Weight Indicator a great, low cost solution for wet and/or industrial environments. | With extra-large one-inch digits, the RGB backlit LCD display makes the unit extremely easy to read, even from a distance. The RGB backlight is used as a target indicator for the pre-installed check-weighing function, so a separate light tree for visual indication is not required. When the weight/count is low, the display will glow white, if the count is on target, the display will glow green, and if the unit is over target, it will glow red. The SuperView's menu-driven Macro Programmability allows the unit to be easily programmed for special applications, such as auto printing and tare accumulation for verification of receivables. Macros customize a series of prompts for simplified, one button operation and can be set up to prompt in different languages. Super-View allows up to ten print formats to be easily set up to print lables to the user's specifications. IN and OUT RS232 ports come standard on the SuperView Weight Indicator for plug-and-play connectivity of Setra printers and scanners. A bi-directional RS-232 or USB port, for computer connectivity, can also be added as optional equipment. Additionally, each SuperView comes standard with 3 digital outputs and 2 digital inputs | |||||||||
| | ||||||||||
| | 800-257-3872 | | ||||||||
| | ||||||||||
