POWER ADAPTER 16VDC @ 1000 mA USAfor 120 VAC, 60 Hz Optional 12 VDC @ 500mA EC for 230 VAC, 50 Hz DIMENSIONS (25- 50 Kg) Platform13 “ W x 15” D(33 x 38 cm)Controller10.75” W x 4.38” D x 2.5” H(27 x 11 x 6 cm)Overall13” W x 19.38” D x 4.5” H(33 x 48 x 11.5 cm) DIMENSIONS (12 - 16 Kg) Platform11.5 “ W x 9.5” D(29 x 24 cm)Controller10.75” W x 4.38” D x 2.5” H(27 x 11 x 6 cm)Overall11.5” W x 14” D x 4.75” H(29 x 35 x 12 cm)

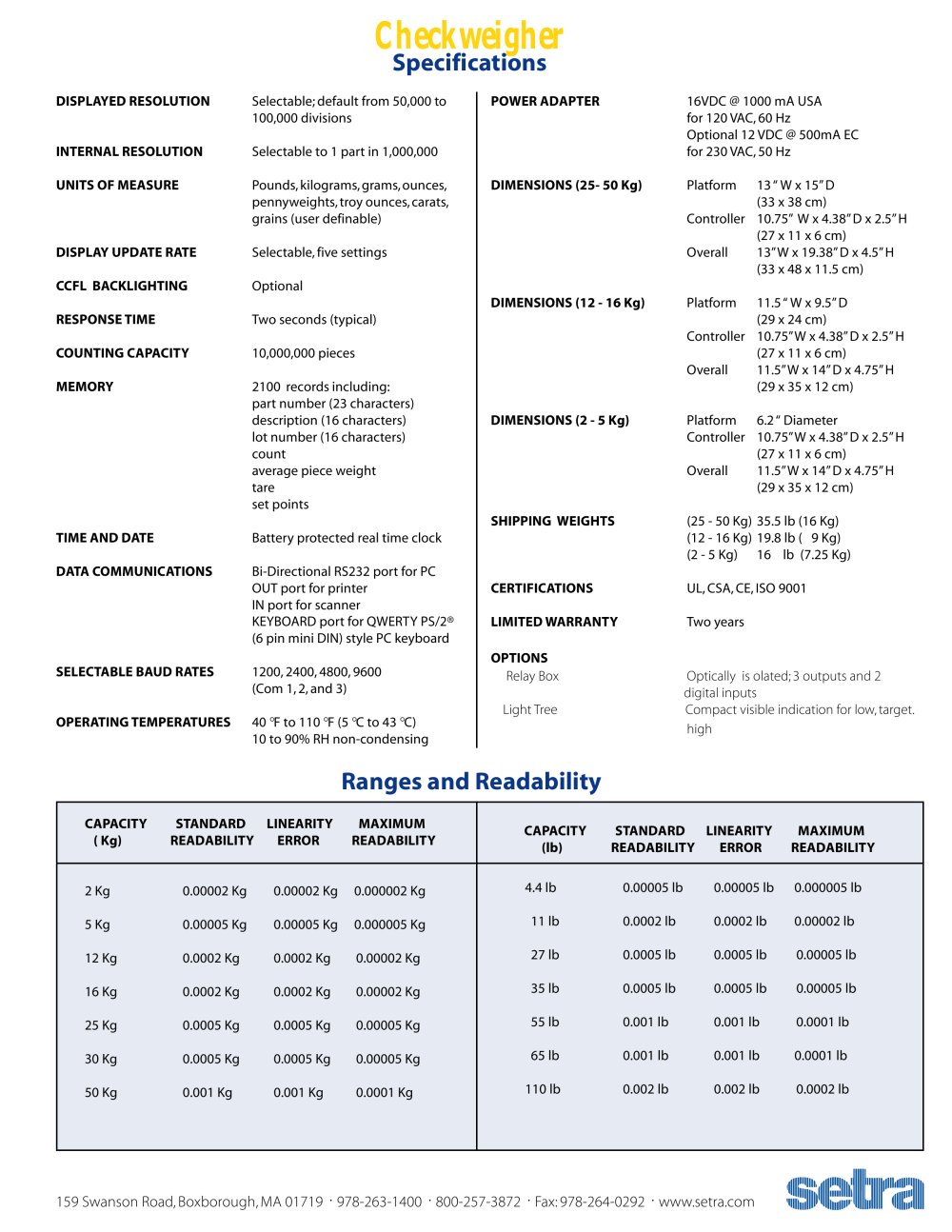

checkweigher - 11629 Checkweigher

Specifications

DIMENSIONS (2 - 5 Kg) Platform6.2 “ DiameterController10.75” W x 4.38” D x 2.5” H(27 x 11 x 6 cm)Overall11.5” W x 14” D x 4.75” H(29 x 35 x 12 cm) DISPLAYED RESOLUTION Selectable; default from 50,000 to100,000 divisions INTERNAL RESOLUTION Selectable to 1 part in 1,000,000 CAPACITYSTANDARDLINEARITY MAXIMUM UNITS OF MEASURE Pounds, kilograms, grams, ounces,pennyweights, troy ounces, carats, grains (user definable) SHIPPING WEIGHTS (lb) READABILITY ERROR READABILITY (25 - 50 Kg)35.5 lb (16 Kg)(12 - 16 Kg)19.8 lb ( 9 Kg) (2 - 5 Kg)16 lb (7.25 Kg) DISPLAY UPDATE RATE Selectable, five settings CERTIFICATIONS UL, CSA, CE, ISO 9001 CCFL BACKLIGHTING Optional LIMITED WARRANTY Two years RESPONSE TIME Two seconds (typical) OPTIONS TIME AND DATE Battery protected real time clock Relay BoxOptically is olated; 3 outputs and 2 digital inputs Light Tree Compact visible indication for low, target.high COUNTING CAPACITY 10,000,000 pieces DATA COMMUNICATIONS Bi-Directional RS232 port for PCOUT port for printer IN port for scannerKEYBOARD port for QWERTY PS/2®(6 pin mini DIN) style PC keyboard MEMORY 2100 records including:part number (23 characters) description (16 characters) lot number (16 characters) count average piece weight tare set points SELECTABLE BAUD RATES 1200, 2400, 4800, 9600(Com 1, 2, and 3) OPERATING TEMPERATURES 40 ° F to 110 ° F (5 ° C to 43 ° C)10 to 90% RH non-condensing

Ranges and Readability

CAPACITYSTANDARDLINEARITY MAXIMUM ( Kg) READABILITYERROR READABILITY 2 Kg0.00002 Kg0.00002 Kg0.000002 Kg5 Kg0.00005 Kg0.00005 Kg0.000005 Kg 12 Kg0.0002 Kg0.0002 Kg 0.00002 Kg 16 Kg0.0002 Kg0.0002 Kg 0.00002 Kg 25 Kg0.0005 Kg0.0005 Kg 0.00005 Kg 30 Kg0.0005 Kg0.0005 Kg 0.00005 Kg 50 Kg0.001 Kg0.001 Kg 0.0001 Kg 4.4 lb0.00005 lb0.00005 lb0.000005 lb 11 lb0.0002 lb0.0002 lb0.00002 lb 27 lb0.0005 lb0.0005 lb 0.00005 lb 35 lb0.0005 lb0.0005 lb 0.00005 lb 55 lb0.001 lb0.001 lb 0.0001 lb 65 lb0.001 lb0.001 lb0.0001 lb 110 lb0.002 lb0.002 lb 0.0002 lb

159 Swanson Road, Boxborough, MA 01719

.

978-263-1400

.

800-257-3872

.

Fax: 978-264-0292

.

www.setra.com
