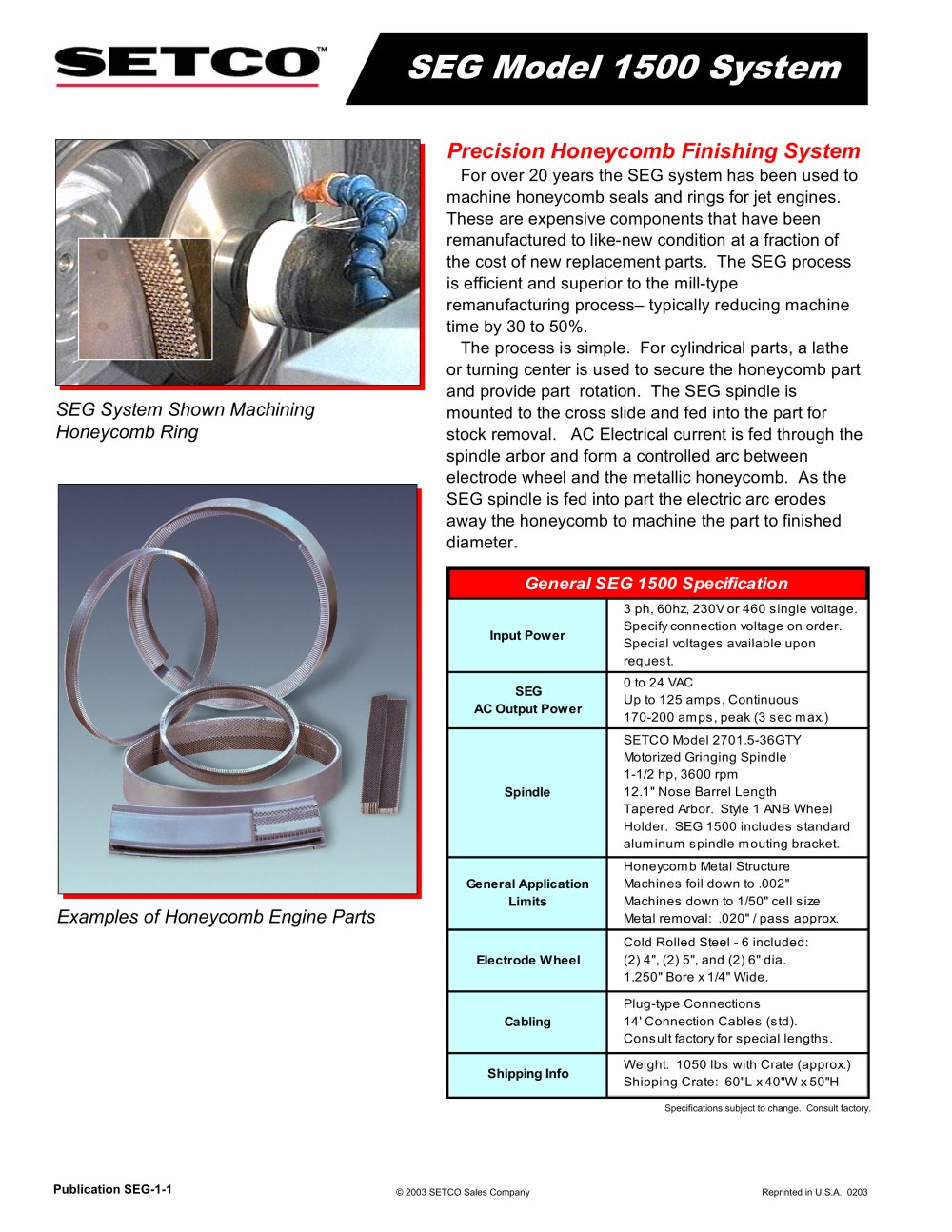

SEG Model 1500 System
For over 20 years the SEG system has been used to machine honeycomb seals and rings for jet engines. These are expensive components that have been remanufactured to like-new condition at a fraction of the cost of new replacement parts. The SEG process is efficient and superior to the mill-type remanufacturing process–typically reducing machine time by 30 to 50%. The process is simple. For cylindrical parts, a lathe or turning center is used to secure the honeycomb part and provide part rotation. The SEG spindle is mounted to the cross slide and fed into the part for stock removal. AC Electrical current is fed through the spindle arbor and form a controlled arc between industrial electrode wheel and the metallic honeycomb. As the SEG spindle is fed into part the electric arc erodes away the honeycomb to machine the part to finished diameter.
SEG System Shown Machining Honeycomb Ring
Examples of Honeycomb Engine Parts
General SEG 1500 Specification
3 ph, 60hz, 230V or 460 single voltage.Specify connection voltage on order.Special voltages available upon request. Input Power SEG AC Output Power 0 to 24 VACUp to 125 amps, Continuous170-200 amps, peak (3 sec max.) SETCO Model 2701.5-36GTYMotorized Gringing Spindle1-1/2 hp, 3600 rpm 12.1" Nose Barrel LengthTapered Arbor. Style 1 ANB Wheel Holder. SEG 1500 includes standardaluminum spindle mouting bracket. Spindle Honeycomb Metal StructureMachines foil down to .002"Machines down to 1/50" cell size
Metal removal: .020" / pass approx. General Application Limits Cold Rolled Steel - 6 included:(2) 4", (2) 5", and (2) 6" dia.1.250" Bore x 1/4" Wide. Electrode Wheel Plug-type Connections14' Connection Cables (std).
Consult factory for special lengths. Cabling Shipping Info Weight: 1050 lbs with
Industrial crate (approx.)
Shipping crate: 60"L x 40"W x 50"H
Specifications subject to change. Consult factory. Publication SEG-1-1 ©2003 SETCO Sales Company Reprinted in U.S.A. 0203
