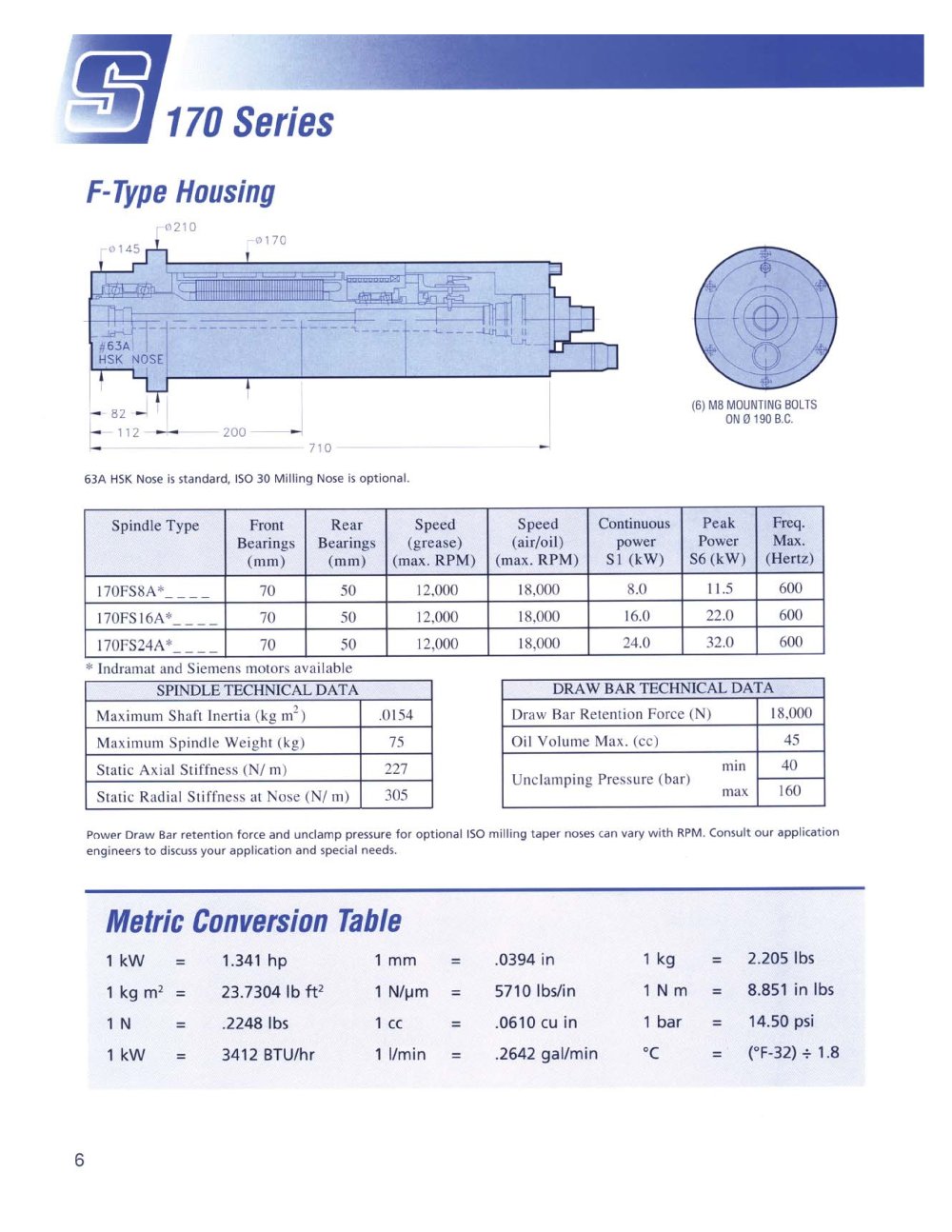

| | | 170 Series | | |
| | | |
| | | F-Type Housing | | |
| | | |
| | | ■O210 | | |
| | | |
| | | -Ol 70 | | |
| | | e 145 | | |
| | | |
| | | |
| | | 3 | | |
| | | |
| | | ■V63A HSK NOSE ■ 52 -*4 1 112 | | |
| | | [6J MB MOUNTING BOLTS ON 0 19G &.C | | |
| | | |
| | | 200 | | |
| | | |
| | | 710 | | |
| | | |
| | | 63A HSK Nose is standard, ISO 30 Milling Nose is optional. | | |
| | | |
| | | | | | | | | | | | | | | | Spindle Type | Front Bearings (mm) | Rear Bearings (mm) | Speed (grease) (max. RPM) | Speed (air/oil) (max. RPM) | Continuous power SI (kW) | Peak Power S6(kW) | Freq. Max. (Hertz) | | | | I70FS8A*____ | 70 | 51) | 12,000 | 18,000 | 8.0 | ! 1.5 | 600 | | | | 170FSI6A*__ | 70 | 50 | 12,000 | 18,000 | 16.0 | 22.0 | 600 | | | | 170FS24A*____ | 70 | 50 | 12,000 | IS.000 | 24.0 | 32.0 | 600 | | | | | | | | | | | | | | | |
| | | |
| | | Indramat and Siemens motors available | | |
| | | |
| | | | | | | | | | DRAW BAR TECHNICAL DATA | | | | Draw Bar Retention Force (N} | 1 K.000 | | | | Oil Volume Max. (cc) | 45 | | | | min Unclampine Pressure (bar) max | 40 | | | | 160 | | | | | | | | | |
| | | | | | | | | | SPINDLE TECHNICAL DATA | | | | Maximum Shaft Inertia (kg m ) | .0154 | | | | Maximum Spindle WeighL (kg) | 75 | | | | Static Axial Stiffness (N/ m) | 227 | | | | Static Radial Stiffness at Nose (N/ in) | 305 | | | | | | | | | |
| | | |
| | | |
| | | Pnvu^r Draw Bar retention force and undamp pressure for optional ISO milling taper noses can vary with RPM. Consult our application engineers to discuss your application and special neeoV | | |
| | | |
| | | Metric Conversion Tabie 1 kW = 1.341 hp 1 mm .0394 in 1 kg 2.205 lbs 1kg m2 = 23.7304 lb ft2 1 N/um = 5710 lbs/in 1 N m = 8.851 in lbs 1N = .2248 lbs 1 cc = .0610 cu in 1 bar = 14.50 psi 1 kW 3412 BTU/hr 1 l/min = .2642 gal/min °C = (°F-32) -f 1.8 | | |
| | | |
| | | 6 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
