| | | Standard Features | | |
| | | |
| | | Smart Spindle | | |
| | | |
| | | 1. Designed for reversible rotation. 2. Bearings lubricated with grease or optional air/metered oil. 3. Heavy duty anti-friction angular contact ABEC 9 super precision hybrid ceramic ball bearings front and rear {Optional tapered bore cylindrical roller bearings are available on all sizes) | | |
| | | |
| | | 4. | | Vibration specifications:
| |
| | | TWO STANDARD HOUSING STYLES • Flanged Cartridge • Block | | |
| | | Displacement: 1 urn Max. (peak to peak) Velocity: 1 mm/sec (peak) Acceleration: 1 G's (peak) | | |
| | | |
| | | |
| | | 5, | | Dynamic pre-balancing of all rotating parts
| |
| | | |
| | | and completed spindle trim balanced to ultra precision levels at the maximum rated spindle RPM. | | |
| | | |
| | | 6. 7. S. 9. | | Standard HSK - DIN 69893 tool interface. Liquid cooled motor, Non-rotating power draw bar with air blast. Encoder wheel and encoder. | | |
| | | |
| | | 11. Hard metric design. 12. O' rings and seals made from Viton. | | |
| | | |

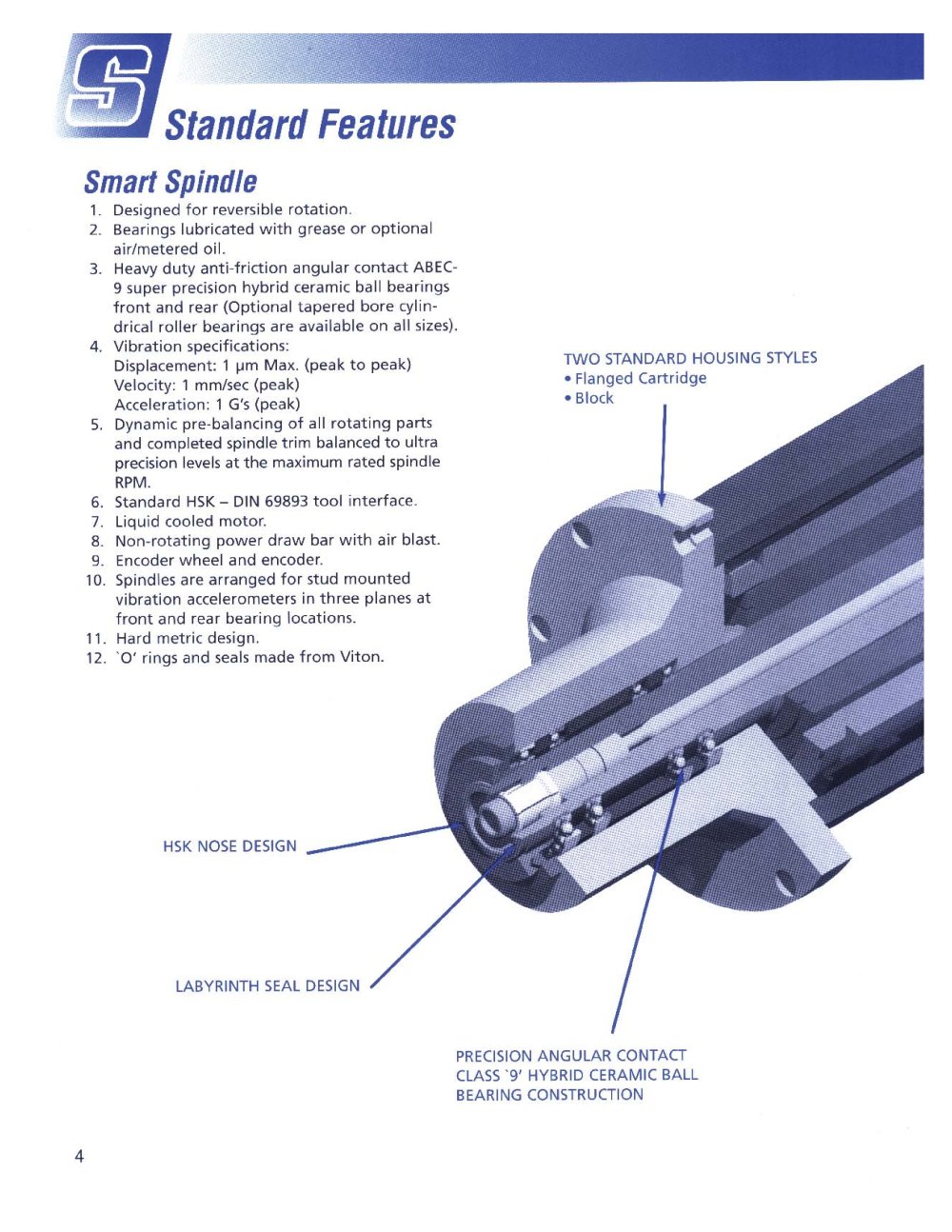

| | | HSK NOSE DESIGN | | |
| | | |
| | | | | |
| | | |
| | | PRECISION ANGULAR CONTACT CLASS '9' HYBRID CERAMIC BALL BEARING CONSTRUCTION | | |
| | | |
