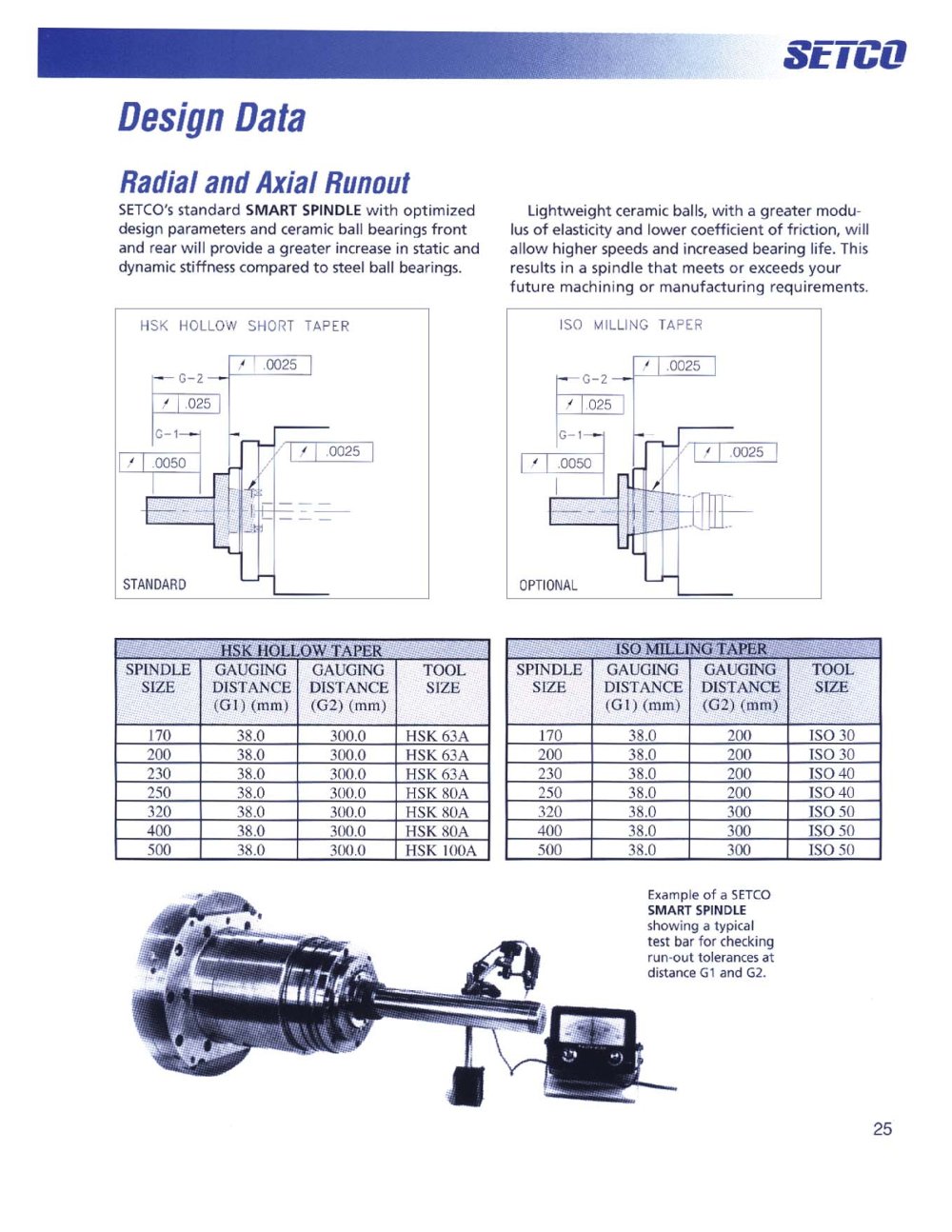

| | | Design Data | | |
| | | |
| | | Radial and Axial Runout SETCO's standard SMART SPINDLE with optimized design parameters and ceramic ball bearings front and rear will provide a greater increase in static and dynamic stiffness compared to steel ball bearings. | | |
| | | Lightweight ceramic balls, with a greater modulus of elasticity and lower coefficient of friction, will allow higher speeds and increased bearing life. This results in a spindle that meets or exceeds your future machining or manufacturing requirements. | | |
| | | |
| | | |
| | | ISO WILLING TAPER | | |
| | | HSK HOLLOW SHORT TAPER FT1IÌS | | |
| | | |
| | | ' I .0025 | | |
| | | | | |
| | | | | |
| | | |
| | | / I 0025 | | |
| | | 0025 | | |
| | | |
| | | |
| | | |
| | | .0050 | | |
| | | .0050 | | |
| | | |
| | | |
| | | |
| | | STANDARO | | |
| | | OPTIONAL | | |
| | | |
| | | |
| | | | | | | | | | | | HSK HOLLOW TAPER | | | | SPINDLE | GAUGING | GAUGING | TOOL | | | | SIZE | DISTANCE | DISTANCE | SIZE | | | | | (GI) (mm) | (G2) (mm) | | | | | 170 | 38.0 | 300.0 | HSK 63A | | | | 200 | 38.0 | 300.0 | HSK 63A | | | | 230 | 38.0 | 300.0 | HSK 63A | | | | 25(1 | 38.0 | 300.0 | HSK 80A | | | | 320 | 38.0 | 300.0 | HSK S0A | | | | 400 | 38.0 | 300.0 | HSK S0A | | | | 500 | 38.0 | 300.0 | HSK 100A | | | | | | | | | | | | | | | | | | | | ISO MILLI | NG TAPER | | | | SPINDLE SIZE | GAUGING DISTANCE (Gl) {mm) | GAUGING DISTANCE (G2) (mm) | TOOL SIZE | | | | 170 | 38.0 | 200 | ISO 30 | | | | 200 | 38.0 | 200 | ISO 30 | | | | 230 | 38.0 | 200 | ISO 40 | | | | 250 | 3K.0 | 200 | ISO 40 | | | | 320 | 3S,0 | 300 | ISO 50 | | | | 400 | 3S,0 | 300 | ISO 50 | | | | 500 | 38.0 | 300 | ISO 50 | | | | | | | | | | | |
| | | |
| | | |
| | | Example of a SETCO SMART SPINDLE showing a typical test bar for checking run-out tolerances at ____f-4___l t—t | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
