J

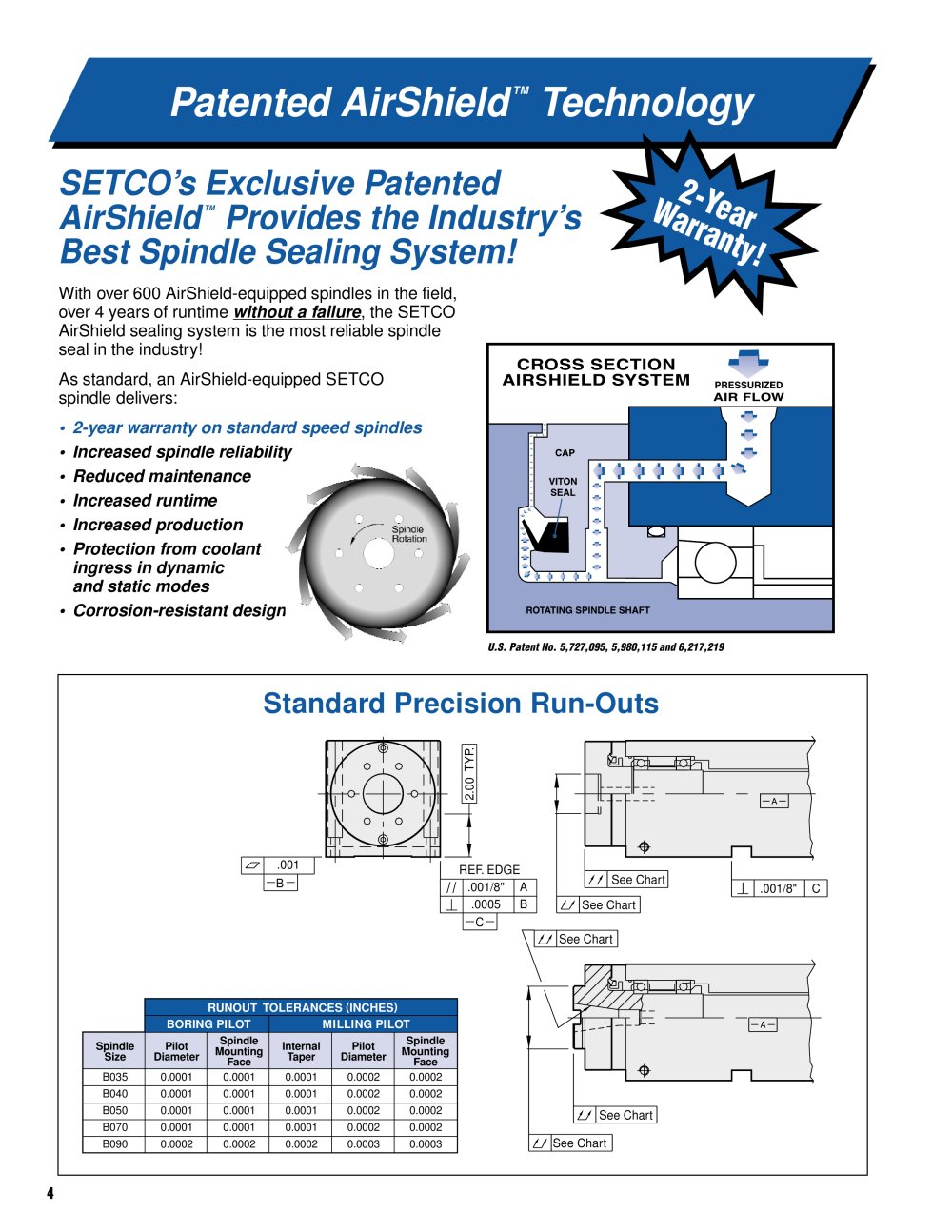

Best Spindle Sealing system!
With over 600 AirShield-equipped spindles in the field, over 4 years of runtime without a failure, the SETCO AirShield sealing system is the most reliable spindle seal in the industry!
As standard, an AirShield-equipped SETCO spindle delivers:
• 2-year warranty on standard speed spindles
• Increased spindle reliability
• Reduced maintenance
• Increased runtime
• Increased production
• Protection from coolant ingress in dynamic and static modes
• Corrosion-resistant design
CROSS SECTION AIRSHIELD SYSTEM
ROUT1NQ SPINDLE SHAFT
U.S. Patent No. 5,727,095, 5,980,115 and 6,217,219
Standard Precision Run-Outs
OLERANCE
BORING PILOT
MILLING PILOT
Spmdle
Dimeter
Spindle Mounting
Intepeal
Diameter
Spindle
Mounting
B035
0.0001
0.0001
0.0001
0.0002
0.0002
B040
0.0001
0.0001
0.0001
0.0002
0.0002
B050
0.0001
0.0001
0.0001
0.0002
0.0002
B070
0.0001
0.0001
0.0001
0.0002
0.0002
B090
0.0002
0.0002
0.0002
0.0003
0.0003
£/|See Chart I Z/|See Chart]
4
