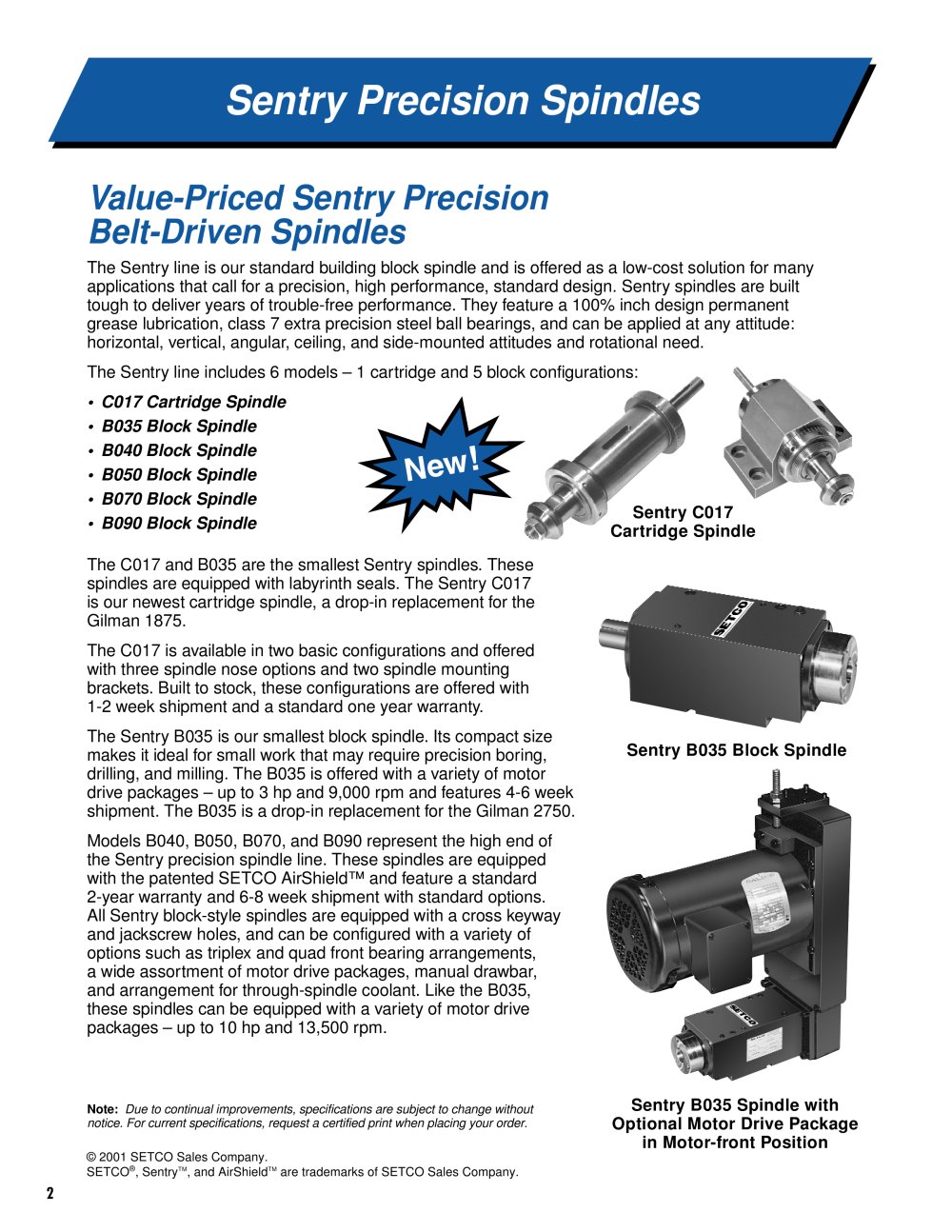

Sentry Precision Spindles

Value-Priced Sentry Precision Belt-Driven Spindles

The Sentry line is our standard building block spindle and is offered as a low-cost solution for manyapplications that call for a precision, high performance, standard design. Sentry spindles are built tough to deliver years of trouble-free performance. They feature a 100% inch design permanent grease lubrication, class 7 extra precision steel ball bearings, and can be applied at any attitude: horizontal, vertical, angular, ceiling, and side-mounted attitudes and rotational need.The Sentry line includes 6 models – 1 cartridge and 5 block configurations: The C017 and B035 are the smallest Sentry spindles. Thesespindles are equipped with labyrinth seals. The Sentry C017 is our newest cartridge spindle, a drop-in replacement for the Gilman 1875. The C017 is available in two basic configurations and offered with three spindle nose options and two spindle mounting brackets. Built to stock, these configurations are offered with 1-2 week shipment and a standard one year warranty.The Sentry B035 is our smallest block spindle. Its compact sizemakes it ideal for small work that may require precision boring, drilling, and milling. The B035 is offered with a variety of motor drive packages – up to 3 hp and 9,000 rpm and features 4-6 week shipment. The B035 is a drop-in replacement for the Gilman 2750.Models B040, B050, B070, and B090 represent the high end ofthe Sentry precision spindle line. These spindles are equipped with the patented SETCO AirShield™and feature a standard 2-year warranty and 6-8 week shipment with standard options. All Sentry block-style spindles are equipped with a cross keyway and jackscrew holes, and can be configured with a variety of options such as triplex and quad front bearing arrangements, a wide assortment of motor drive packages, manual drawbar, and arrangement for through-spindle coolant. Like the B035, these spindles can be equipped with a variety of motor drive packages – up to 10 hp and 13,500 rpm. •C017 Cartridge Spindle?B035 Block Spindle ?B040 Block Spindle ?B050 Block Spindle ?B070 Block Spindle ?B090 Block Spindle

Note: Due to continual improvements, specifications are subject to change withoutnotice. For current specifications, request a certified print when placing your order.

Sentry B035 Spindle withOptional Motor Drive Packagein Motor-front Position Sentry B035 Block Spindle Sentry C017Cartridge Spindle
