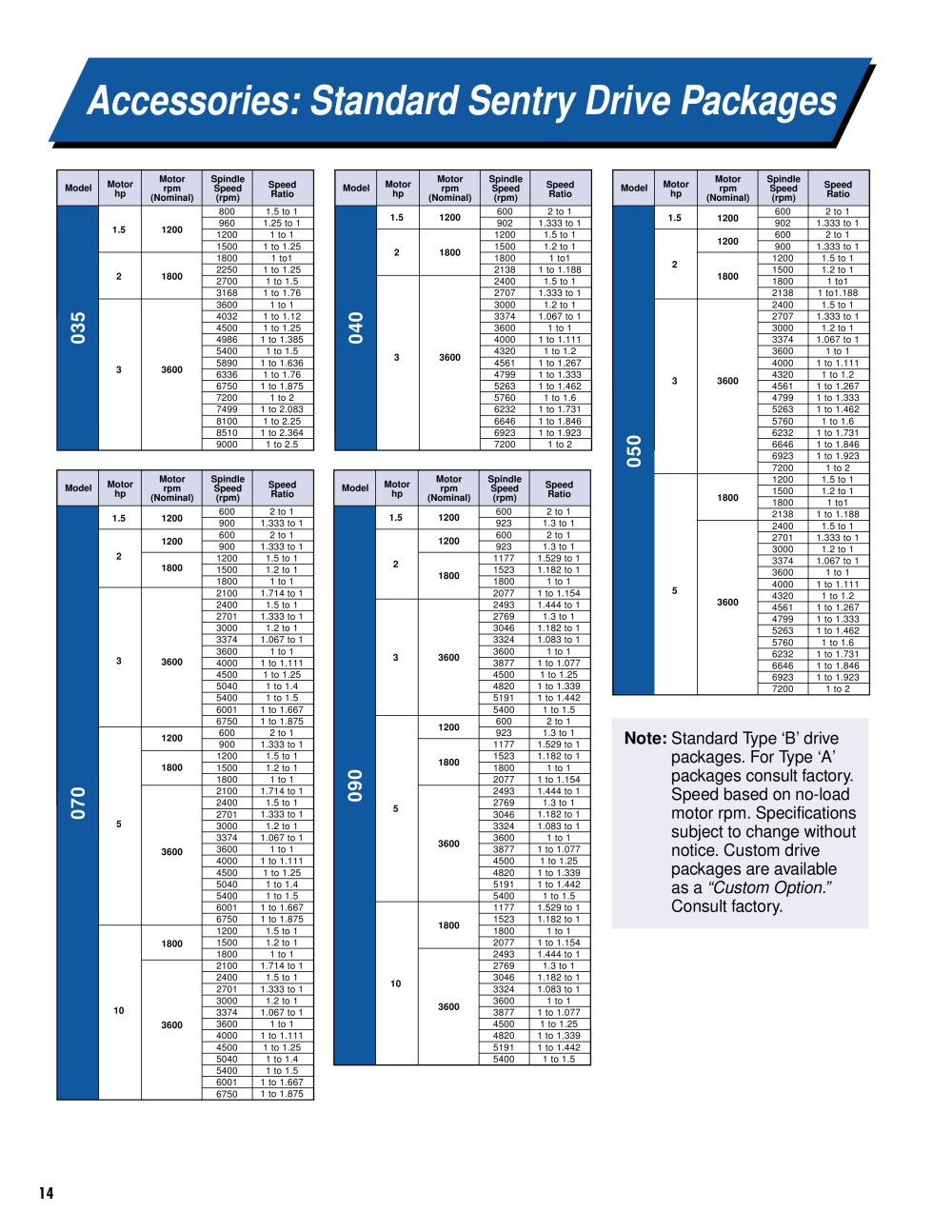

ccessories: Standard Sentry Drive Packag


Model	Motor hp	Motor rpm (Nominal)	Spindle Speed (rpm)	Speed Ratio
			800	1.5 to 1
	1.5	1200	960	1.25 to 1
	1.5	1200	1200	1 to 1
			1500	1 to 1.25
			1800	1 to1
	2	1800	2250	1 to 1.25
	2	1800	2700	1 to 1.5
			3168	1 to 1.76
			3600	1 to 1
			4032	1 to 1.12
			4500	1 to 1.25
			4986	1 to 1.385
			5400	1 to 1.5
	3	3600	5890	1 to 1.636
	3	3600	6336	1 to 1.76
			6750	1 to 1.875
			7200	1 to 2
			7499	1 to 2.083
			8100	1 to 2.25
			8510	1 to 2.364
			9000	1 to 2.5


Model	Motor hp	Motor rpm (Nominal)	Spindle Speed (rpm)	Speed Ratio
	1.5	1200	600	2 to 1
	1.5	1200	902	1.333 to 1
			1200	1.5 to 1
	2	1800	1500	1.2 to 1
	2	1800	1800	1 to1
			2138	1 to 1.188
			2400	1.5 to 1
			2707	1.333 to 1
			3000	1.2 to 1
			3374	1.067 to 1
			3600	1 to 1
			4000	1 to 1.111
	3	3600	4320	1 to 1.2
	3	3600	4561	1 to 1.267
			4799	1 to 1.333
			5263	1 to 1.462
			5760	1 to 1.6
			6232	1 to 1.731
			6646	1 to 1.846
			6923	1 to 1.923
			7200	1 to 2


Model	Motor hp	Motor rpm (Nominal)	Spindle Speed (rpm)	Speed Ratio
	1.5	1200	600	2 to 1
	1.5	1200	902	1.333 to 1
		1200	600	2 to 1
		1200	900	1.333 to 1
	2		1200	1.5 to 1
	2	1800	1500	1.2 to 1
		1800	1800	1 to1
			2138	1 to1.188
			2400	1.5 to 1
			2707	1.333 to 1
			3000	1.2 to 1
			3374	1.067 to 1
			3600	1 to 1
			4000	1 to 1.111
	3	3600	4320	1 to 1.2
	3	3600	4561	1 to 1.267
			4799	1 to 1.333
			5263	1 to 1.462
			5760	1 to 1.6
			6232	1 to 1.731
			6646	1 to 1.846
			6923	1 to 1.923
			7200	1 to 2
			1200	1.5 to 1
		1800	1500	1.2 to 1
		1800	1800	1 to1
			2138	1 to 1.188
			2400	1.5 to 1
			2701	1.333 to 1
			3000	1.2 to 1
			3374	1.067 to 1
			3600	1 to 1
	5		4000	1 to 1.111
	5	3600	4320	1 to 1.2
		3600	4561	1 to 1.267
			4799	1 to 1.333
			5263	1 to 1.462
			5760	1 to 1.6
			6232	1 to 1.731
			6646	1 to 1.846
			6923	1 to 1.923
			7200	1 to 2


Model	Motor hp	Motor rpm (Nominal)	Spindle Speed (rpm)	Speed Ratio	Model	Motor hp	Motor rpm (Nominal)	Spindle Speed (rpm)	Speed Ratio
	1.5	1200	600	2 to 1		1.5	1200	600	2 to 1
	1.5	1200	900	1.333 to 1		1.5	1200	923	1.3 to 1
		1200	600	2 to 1			1200	600	2 to 1
		1200	900	1.333 to 1			1200	923	1.3 to 1
	2		1200	1.5 to 1		2		1177	1.529 to 1
		1800	1500	1.2 to 1		2	1800	1523	1.182 to 1
			1800	1 to 1			1800	1800	1 to 1
			2100	1.714 to 1				2077	1 to 1.154
			2400	1.5 to 1				2493	1.444 to 1
			2701	1.333 to 1				2769	1.3 to 1
			3000	1.2 to 1				3046	1.182 to 1
			3374	1.067 to 1				3324	1.083 to 1
			3600	1 to 1		3	3600	3600	1 to 1
	3	3600	4000	1 to 1.111		3	3600	3877	1 to 1.077
			4500	1 to 1.25				4500	1 to 1.25
			5040	1 to 1.4				4820	1 to 1.339
			5400	1 to 1.5				5191	1 to 1.442
			6001	1 to 1.667				5400	1 to 1.5
			6750	1 to 1.875			1200	600	2 to 1
		1200	600	2 to 1			1200	923	1.3 to 1
		1200	900	1.333 to 1				1177	1.529 to 1
			1200	1.5 to 1			1800	1523	1.182 to 1
		1800	1500	1.2 to 1			1800	1800	1 to 1
			1800	1 to 1				2077	1 to 1.154
			2100	1.714 to 1				2493	1.444 to 1
			2400	1.5 to 1		5		2769	1.3 to 1
			2701	1.333 to 1		5		3046	1.182 to 1
	5		3000	1.2 to 1				3324	1.083 to 1
			3374	1.067 to 1			3600	3600	1 to 1
		3600	3600	1 to 1			3600	3877	1 to 1.077
		3600	4000	1 to 1.111				4500	1 to 1.25
			4500	1 to 1.25				4820	1 to 1.339
			5040	1 to 1.4				5191	1 to 1.442
			5400	1 to 1.5				5400	1 to 1.5
			6001	1 to 1.667				1177	1.529 to 1
			6750	1 to 1.875			1800	1523	1.182 to 1
			1200	1.5 to 1			1800	1800	1 to 1
		1800	1500	1.2 to 1				2077	1 to 1.154
			1800	1 to 1				2493	1.444 to 1
			2100	1.714 to 1				2769	1.3 to 1
			2400	1.5 to 1		10		3046	1.182 to 1
			2701	1.333 to 1		10		3324	1.083 to 1
			3000	1.2 to 1			3600	3600	1 to 1
	10		3374	1.067 to 1			3600	3877	1 to 1.077
		3600	3600	1 to 1				4500	1 to 1.25
			4000	1 to 1.111				4820	1 to 1.339
			4500	1 to 1.25				5191	1 to 1.442
			5040	1 to 1.4				5400	1 to 1.5
			5400	1 to 1.5
			6001	1 to 1.667
			6750	1 to 1.875

Note: Standard Type 'B' drive packages. For Type 'A' packages consult factory. Speed based on no-load motor rpm. Specifications subject to change without notice. Custom drive packages are available as a "Custom Option." Consult factory.
