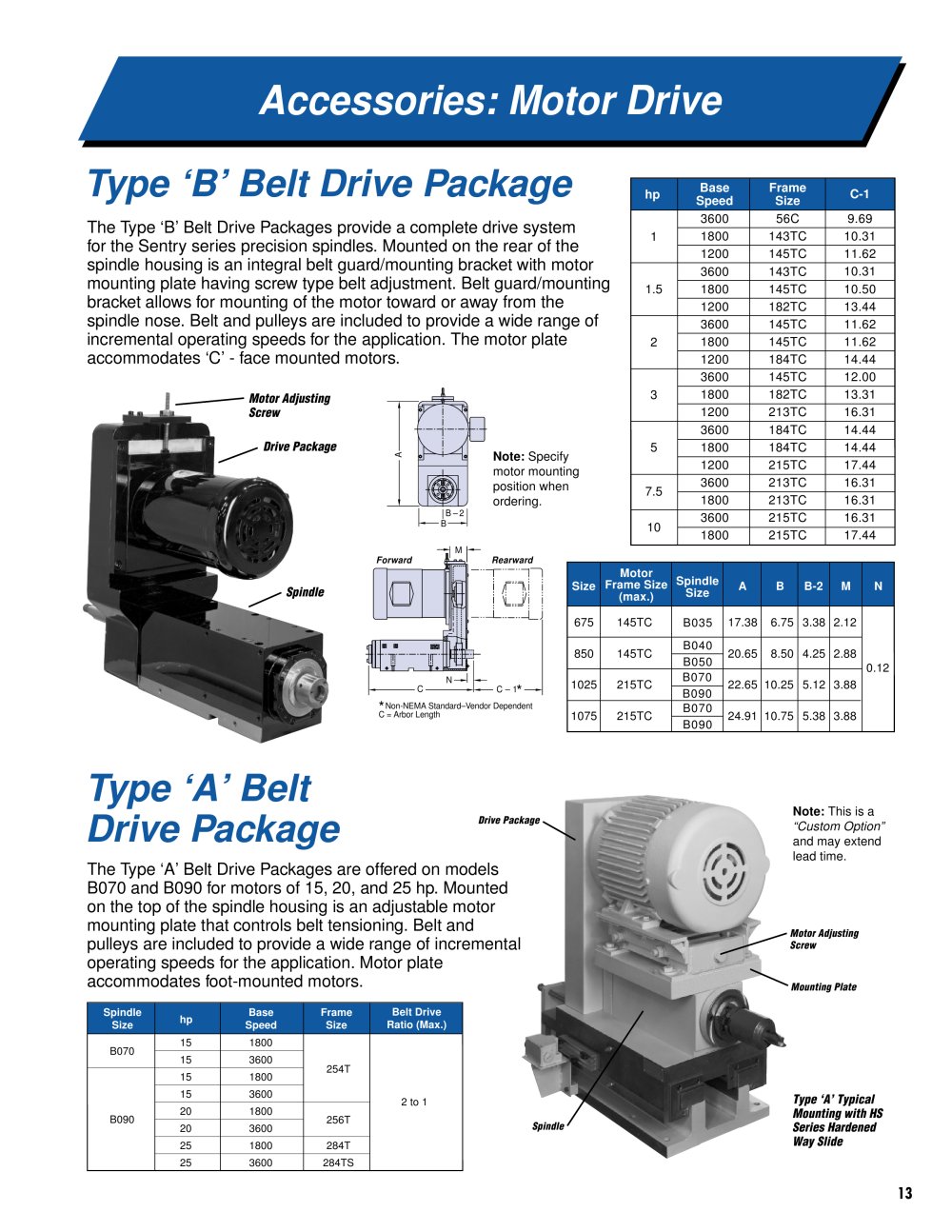

| | | Accessories: Motor Drive | | |
| | | |
| | | Type B' Belt Drive Package The Type 'B' Belt Drive Packages provide a complete drive system for the Sentry series precision spindles. Mounted on the rear of the spindle housing is an integral belt guard/mounting bracket with motor mounting plate having screw type belt adjustment. Belt guard/mounting bracket allows for mounting of the motor toward or away from the spindle nose. Belt and pulleys are included to provide a wide range of incremental operating speeds for the application. The motor plate accommodates 'C' - face mounted motors. | | |
| | | | | | | | | | | | | | | | | | | 1 | 3600 | 56C | 9.69 | | | | 1800 | 143TC | 10.31 | | | | 1200 | 145TC | 11.62 | | | | 1.5 | 3600 | 143TC | 10.31 | | | | 1800 | 145TC | 10.50 | | | | 1200 | 182TC | 13.44 | | | | 2 | 3600 | 145TC | 11.62 | | | | 1800 | 145TC | 11.62 | | | | 1200 | 184TC | 14.44 | | | | 3 | 3600 | 145TC | 12.00 | | | | 1800 | 182TC | 13.31 | | | | 1200 | 213TC | 16.31 | | | | 5 | 3600 | 184TC | 14.44 | | | | 1800 | 184TC | 14.44 | | | | 1200 | 215TC | 17.44 | | | | 7.5 | 3600 | 213TC | 16.31 | | | | 1800 | 213TC | 16.31 | | | | 10 | 3600 | 215TC | 16.31 | | | | 1800 | 215TC | 17.44 | | | | | | | | | | | |
| | | |
| | | Motor Adjusting Screw | | |
| | | B | | |
| | | |
| | | | |
| | | Drive Package | | |
| | A | | |
| | | Note: Specify motor mounting position when ordering. | | |
| | | < | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | -¡1 M I— Forward Rearward | | |
| | | | | | | | | | | | | | | | | | | | | | | | | 675 | 145TC | B035 | 17.38 | 6.75 | 3.38 | 2.12 | | | | 850 | 145TC | B040 | 20.65 | 8.50 | 4.25 | 2.88 | | | | B050 | | | | 1025 | 215TC | B070 | 22.65 | 10.25 | 5.12 | 3.88 | | | | B090 | | | | 1075 | 215TC | B070 | 24.91 | 10.75 | 5.38 | 3.88 | | | | B090 | | | | | | | | | | | | | | |
| | | |
| | | 0.12 | | |
| | | |
| | | N | | |
| | | |
| | | C | | |
| | | |
| | | * Non-NEMA Standard-Vendor Dependent C = Arbor Length | | |
| | | |
| | | |
| | | Type 'A' Belt Drive Packag | | |
| | | Note: This is a "Custom Option" and may extend lead time. | | |
| | | Drive Package | | |
| | | |
| | | |
| | | |
| | | The Type 'A' Belt Drive Packages are offered on models B070 and B090 for motors of 15, 20, and 25 hp. Mounted on the top of the spindle housing is an adjustable motor mounting plate that controls belt tensioning. Belt and pulleys are included to provide a wide range of incremental operating speeds for the application. Motor plate accommodates foot-mounted motors. | | |
| | | Motor Adjusting Screw | | |
| | | |
| | | Mounting Plate | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | B070 | 15 | 1800 | 254T | 2 to 1 | | | | 15 | 3600 | | | | B090 | 15 | 1800 | | | | 15 | 3600 | | | | 20 | 1800 | 256T | | | | 20 | 3600 | | | | 25 | 1800 | 284T | | | | 25 | 3600 | 284TS | | | | | | | | | | | | |
| | | | | |
| | | |
| | | |
| | | 13 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
