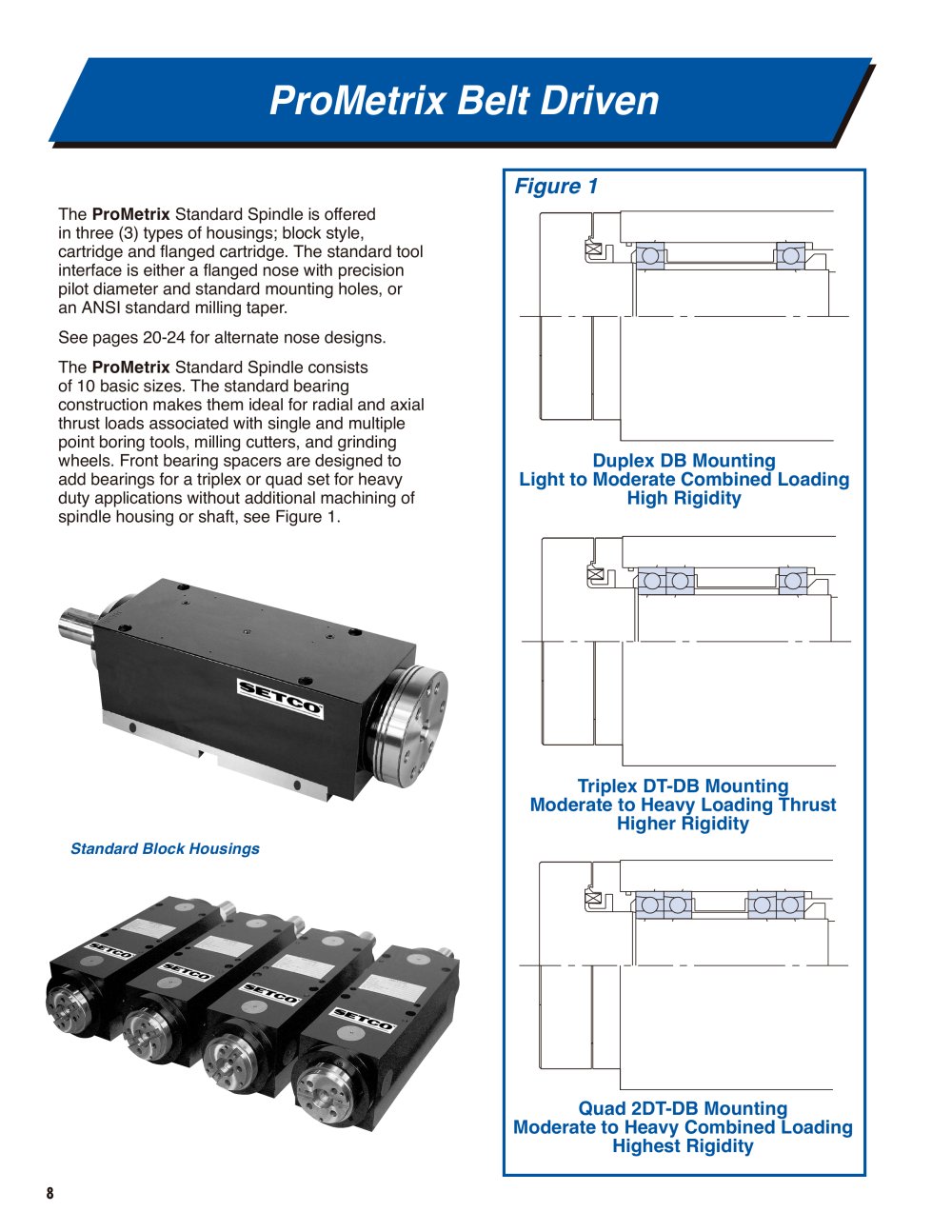

ProMetrix Belt Driven
ProMetrix Standard
Spindle consistsof 10 basic sizes. The standard bearing
construction makes them ideal for radial and axial
thrust loads associated with single and multiple
point
boring tools,
milling cutters, and
grinding wheels manufacturer. Front bearing spacers are designed to
add bearings for a triplex or quad set for heavy
duty applications without additional machining of
spindle housing or shaft, see Figure 1.
Figure 1
The ProMetrix Standard Spindle is offered in three (3) types of housings; block style,
cartridge and flanged cartridge. The standard tool interface is either a flanged nose with precision pilot diameter and standard mounting holes, or an ANSI standard milling taper.See pages 20-24 for alternate nose designs.
The
Duplex DB MountingLight to Moderate Combined LoadingHigh Rigidity
Triplex DT-DB MountingModerate to Heavy Loading ThrustHigher Rigidity
Standard Block Housings Quad 2DT-DB MountingModerate to Heavy Combined LoadingHighest Rigidity
8
