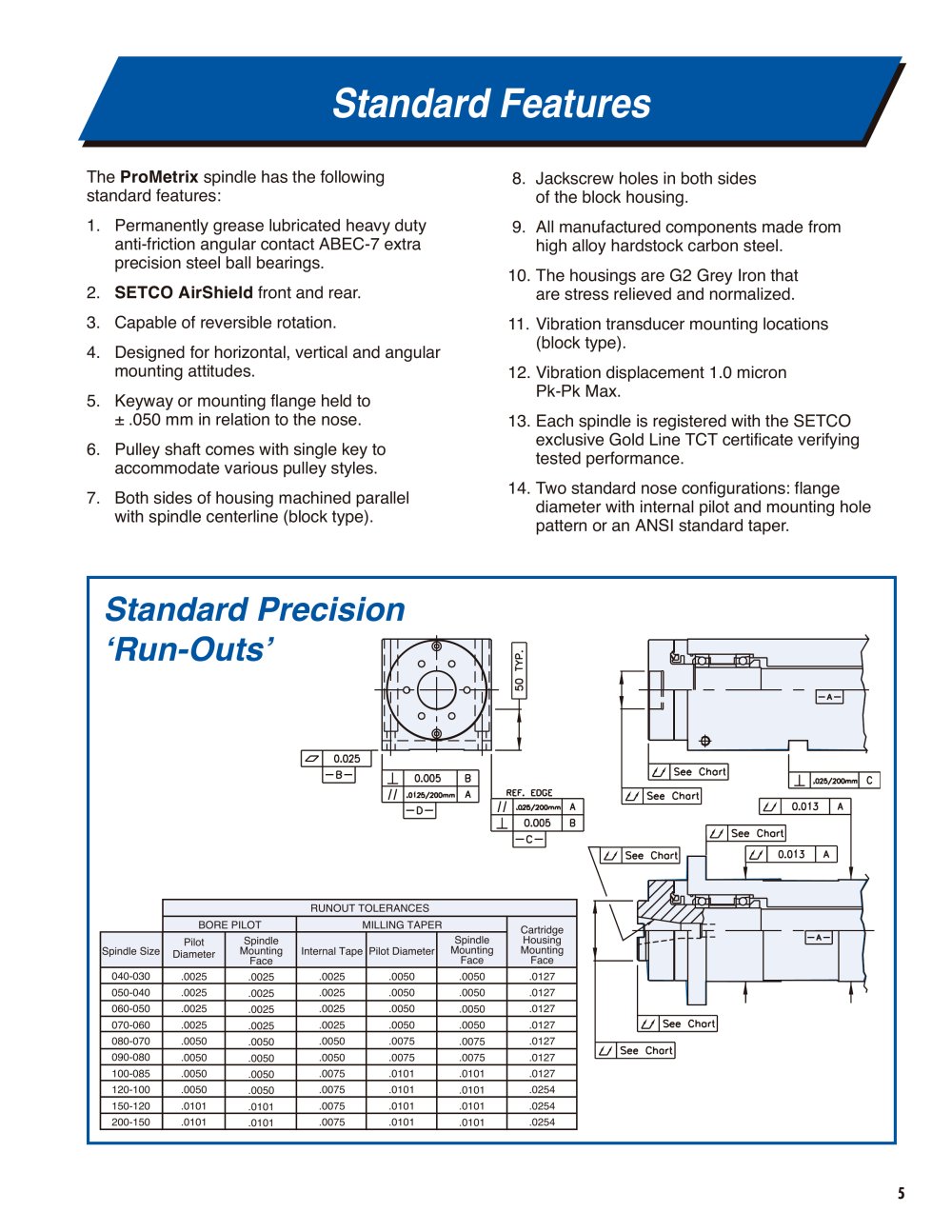

Standard Features

The ProMetrix spindle has the following standard features:

1. Permanently grease lubricated heavy duty anti-friction angular contact ABEC-7 extra precision steel ball bearings manufacturer.

2. SETCO AirShield front and rear.

3. Capable of reversible rotation.

4. Designed for horizontal, vertical and angular mounting attitudes.

5. Keyway or mounting flange held to ± .050 mm in relation to the nose.

6. Pulley shaft comes with single key to accommodate various pulley styles.

7. Both sides of housing machined parallel with spindle centerline (block type).

8. Jackscrew holes in both sides of the block housing.

9. All manufactured components made from high alloy hardstock carbon steel.

10. The housings are G2 Grey Iron that are stress relieved and normalized.

11. Vibration transducer mounting locations (block type).

12. Vibration displacement 1.0 micron Pk-Pk Max.

13. Each spindle is registered with the SETCO exclusive Gold Line TCT certificate verifying tested performance.

14. Two standard nose configurations: flange diameter with internal pilot and mounting hole pattern or an ANSI standard taper.

Standard Precision 'Run-Outs'

EET

Z/|See Chorï]

|_ J J2a/200mm| C |

Z/|See Chart]

0.015 I A !

I / tÛ2&/200mm A

T 0.005 ~B~

l=£=l '

UI See Chôrt]

U\ 0.015 |"Â~|

|Z/|See Chart]


		RUNOUT TOLERANCES
		BORE PILOT		MILLING TAPER			Cartridge Housing Mounting Face
Spindle Size		Pilot Diameter	Spindle Mounting Face	Internal Tape	Pilot Diameter	Spindle Mounting Face	Cartridge Housing Mounting Face
	040-030	.0025	.0025	.0025	.0050	.0050	.0127
	050-040	.0025	.0025	.0025	.0050	.0050	.0127
	060-050	.0025	.0025	.0025	.0050	.0050	.0127
	070-060	.0025	.0025	.0025	.0050	.0050	.0127
_	080-070	.0050	.0050	.0050	.0075	.0075	.0127
	090-080	.0050	.0050	.0050	.0075	.0075	.0127
	00-085	.0050	.0050	.0075	.0101	.0101	.0127
	20-100	.0050	.0050	.0075	.0101	.0101	.0254
	50-120	.0101	.0101	.0075	.0101	.0101	.0254
200-150		.0101	.0101	.0075	.0101	.0101	.0254
