ccessone

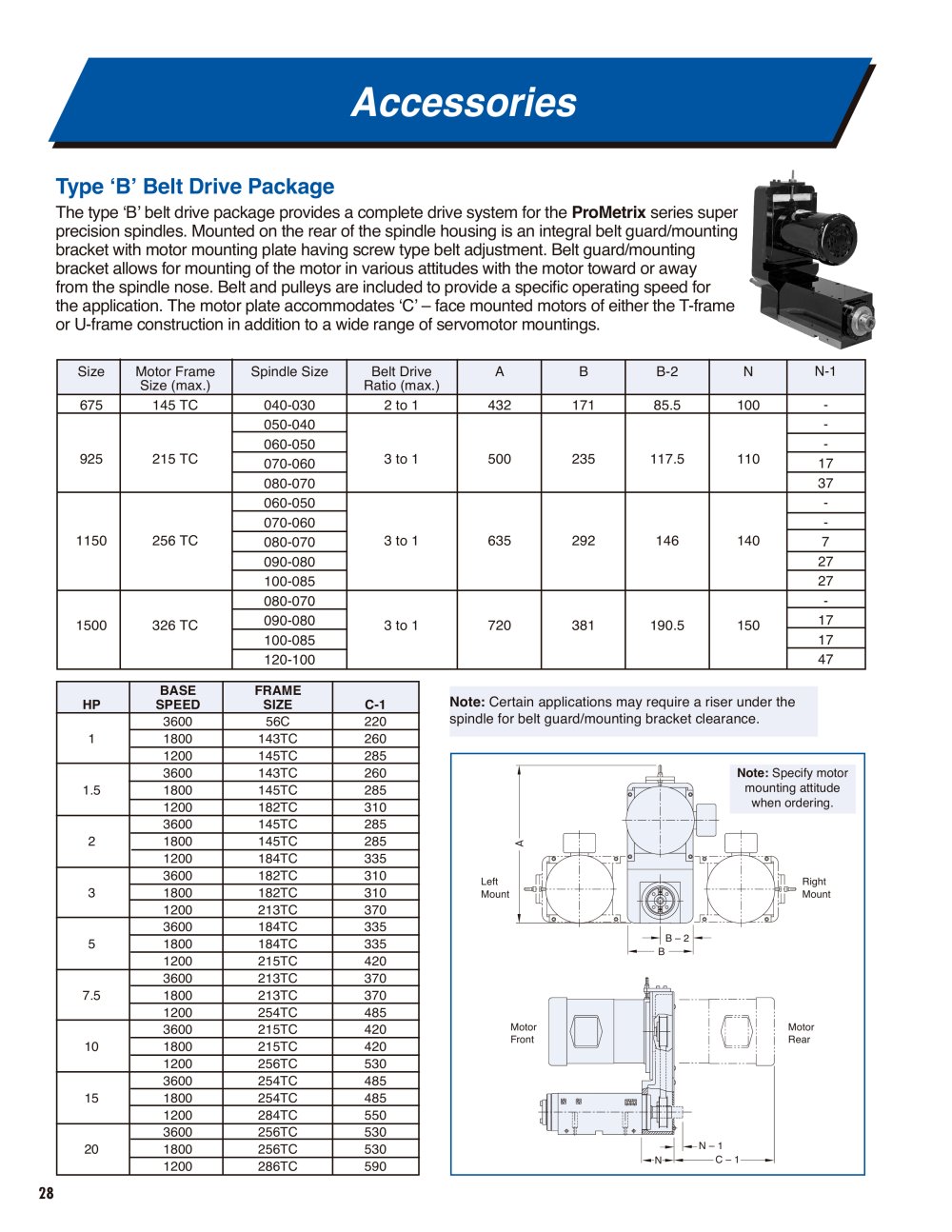

The type 'B' belt drive package provides a complete drive system for the ProMetrix series super precision spindles. Mounted on the rear of the spindle housing is an integral belt guard/mounting bracket with motor mounting plate having screw type belt adjustment. Belt guard/mounting bracket allows for mounting of the motor in various attitudes with the motor toward or away from the spindle nose. Belt and pulleys are included to provide a specific operating speed for the application. The motor plate accommodates 'C' - face mounted motors of either the T-frame or U-frame construction in addition to a wide range of servomotor mountings.


Size	Motor Frame Size (max.)	Spindle Size	Belt Drive Ratio (max.)	A	B	B-2	N	N-1
675	145 TC	040-030	2 to 1	432	171	85.5	100	-
925	215 TC	050-040	3 to 1	500	235	117.5	110	-
		060-050						-
		070-060						17
		080-070						37
1150	256 TC	060-050	3 to 1	635	292	146	140	-
		070-060						_-
		080-070						7
		090-080						27
		100-085						27
1500	326 TC	080-070	3 to 1	720	381	190.5	150	_-
		090-080						17
		100-085						17
		120-100						47


HP	BASE SPEED	FRAME SIZE	C-1
1	3600	56C	220
1	1800	143TC	260
1.5	3600	1 1 143TC	¿.00 260
1.5	1800 ₁₂₀₀	145TC 182TC	285 ₃₁₀
2	3600	1 OtL. 1 O 145TC	O 1 u 285
	1800	145TC	285
	1200	184TC	335
3	3600 -t onn	182TC -t QOTP	310 OHA
3	1 oUU 1200	\Od 1 O 213TC	ol U 370
5	3600	184TC	335
	1800	184TC	335
	1200	215TC	420
7.5	3600 1800	213TC 213TC	370 370
7.5	1200	254TC	485
10	3600	215TC	420
	1800	215TC	420
	1200	256TC	530
15	3600	254TC	485
	1800	254TC	485
	1200	284TC	550
20	3600 1800	256TC 256TC	530 530
20	1200	286TC	590

Note: Certain applications may require a riser under the spindle for belt guard/mounting bracket clearance.
