| | | ccessories | | |
| | | |

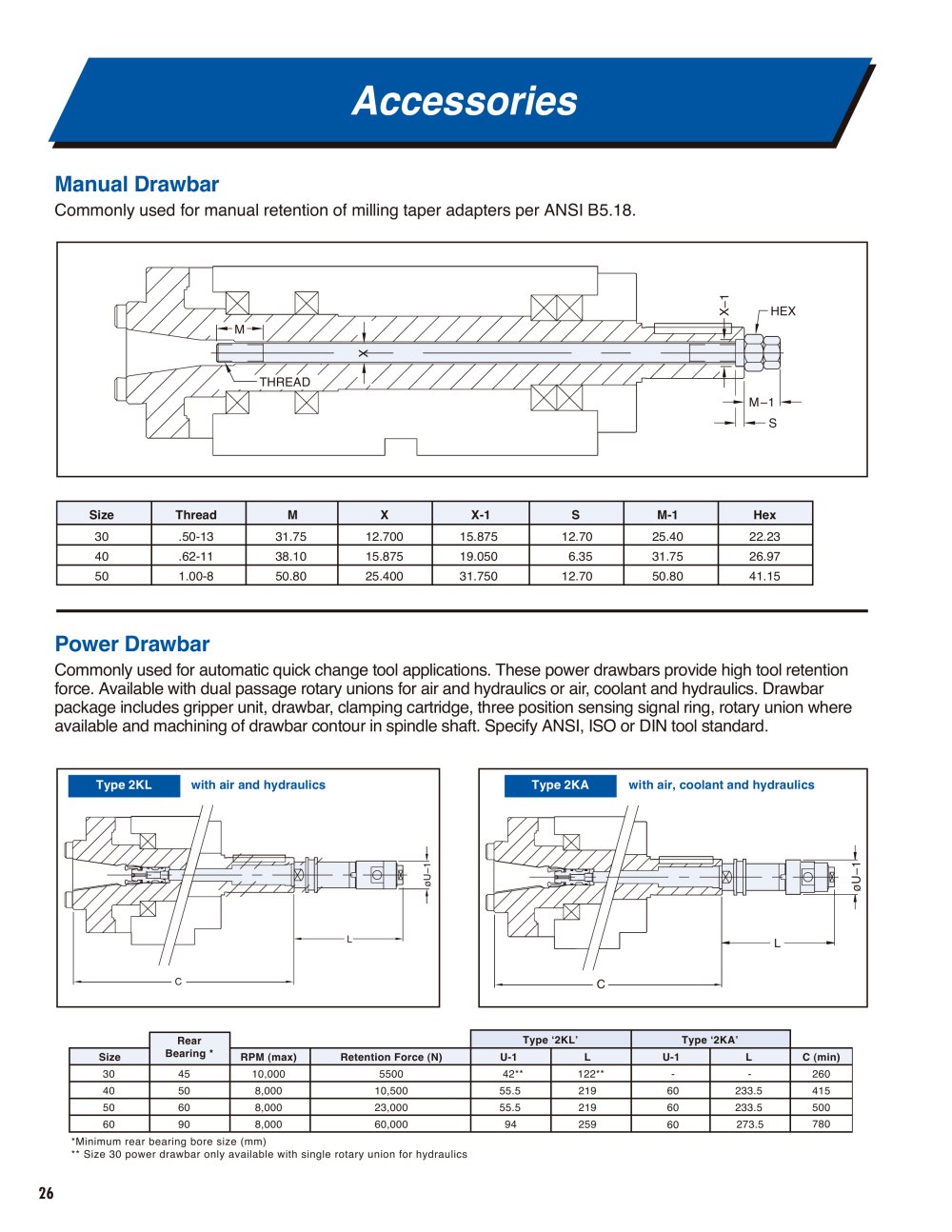

| | | Commonly used for manual retention of milling taper adapters per ANSI B5.18. | | |
| | | |
| | | | | | | | | | | | | | | | Size | Thread | M | X | X-1 | S | M-1 | Hex | | | | 30 | .50-13 | 31.75 | 12.700 | 15.875 | 12.70 | 25.40 | 22.23 | | | | 40 | .62-11 | 38.10 | 15.875 | 19.050 | 6.35 | 31.75 | 26.97 | | | | 50 | 1.00-8 | 50.80 | 25.400 | 31.750 | 12.70 | 50.80 | 41.15 | | | | | | | | | | | | | | | |
| | | |
| | | Power Drawbar Commonly used for automatic quick change tool applications. These power drawbars provide high tool retention force. Available with dual passage rotary unions for air and hydraulics or air, coolant and hydraulics. Drawbar | | |
| | | |
| | | | | | | | | | | | | | | | | | Be^ng * | | Type '2KL' | Type '2KA' | | | | | Size | RPM (max) | Retention Force (N) | U-1 | L | U-1 | L | C (min) | | | | 30 | 45 | 10,000 | 5500 | 42** | 122** | - | - | 260 | | | | 40 | 50 | 8,000 | 10,500 | 55.5 | 219 | 60 | 233.5 | 415 | | | | 50 | 60 | 8,000 | 23,000 | 55.5 | 219 | 60 | 233.5 | 500 | | | | 60 | 90 | 8,000 | 60,000 | 94 | 259 | 60 | 273.5 | 780 | | | | | | | | | | | | | | | | |
| | | |
| | | *Minimum rear bearing bore size (mm) ** Size 30 power drawbar only available with single rotary union for hydraulics | | |
| | | |
