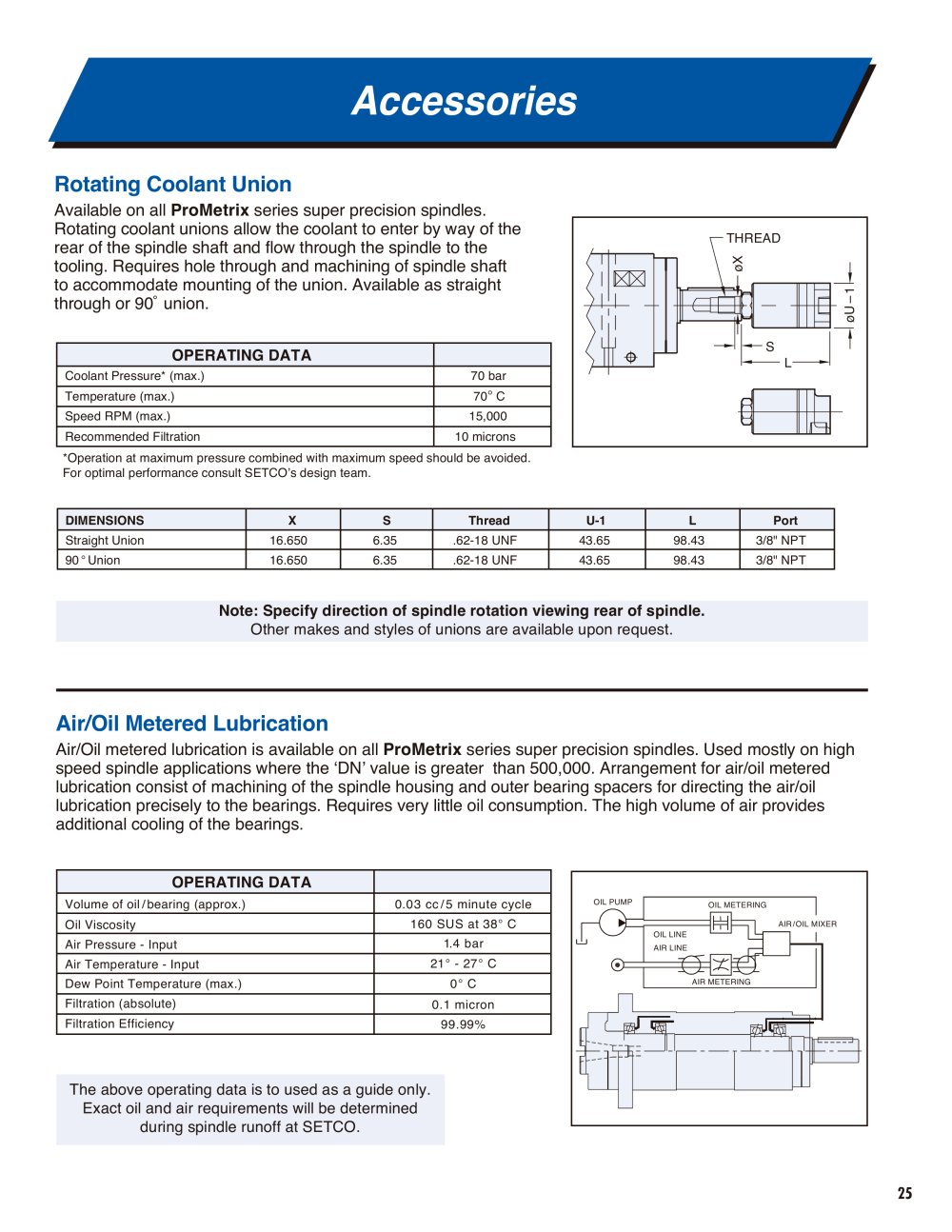

Accessories Rotating Coolant Union

Available on all ProMetrix series super precision spindles.Rotating coolant unions allow the coolant to enter by way of the rear of the spindle shaft and flow through the spindle to the tooling. Requires hole through and machining of spindle shaft to accommodate mounting of the union. Available as straight through or 90Ëš union.

THREADSL

øXøU – 1

OPERATING DATA

Coolant Pressure* (max.)70 barTemperature (max.)70

°

CSpeed RPM (max.)15,000Recommended Filtration10 microns *Operation at maximum pressure combined with maximum speed should be avoided. For o p timal p erformance consult SETCO’s desi g n team. DIMENSIONSXSThreadU-1LPort Straight Union16.6506.35.62-18 UNF43.6598.433/8" NPT90 ° Union16.6506.35.62-18 UNF43.6598.433/8" NPT

Note: Specify direction of spindle rotation viewing rear of spindle. Other makes and styles of unions are available upon request.

Air/Oil Metered Lubrication

Air/Oil metered lubrication is available on all ProMetrix series super precision spindles. Used mostly on highspeed spindle applications where the ‘DN’ value is greater than 500,000. Arrangement for air/oil metered lubrication consist of machining of the spindle housing and outer bearing spacers for directing the air/oil lubrication precisely to the bearings. Requires very little oil consumption. The high volume of air provides additional cooling of the bearings.

OPERATING DATA

Volume of oil / bearing (approx.)0.03 cc / 5 minute cycle160 SUS at 38
OIL METERINGAIR METERINGAIR/OIL MIXEROIL PUMPOIL LINEAIR LINE ° C1.4 bar21 ° - 27 ° C0 ° C0.1 micron99.99%Oil ViscosityAir Pressure - Input Air Temperature - InputDew Point Temperature (max.)Filtration (absolute)Filtration Efficiency

The above operating data is to used as a guide only.Exact oil and air requirements will be determined during spindle runoff at SETCO. 25
