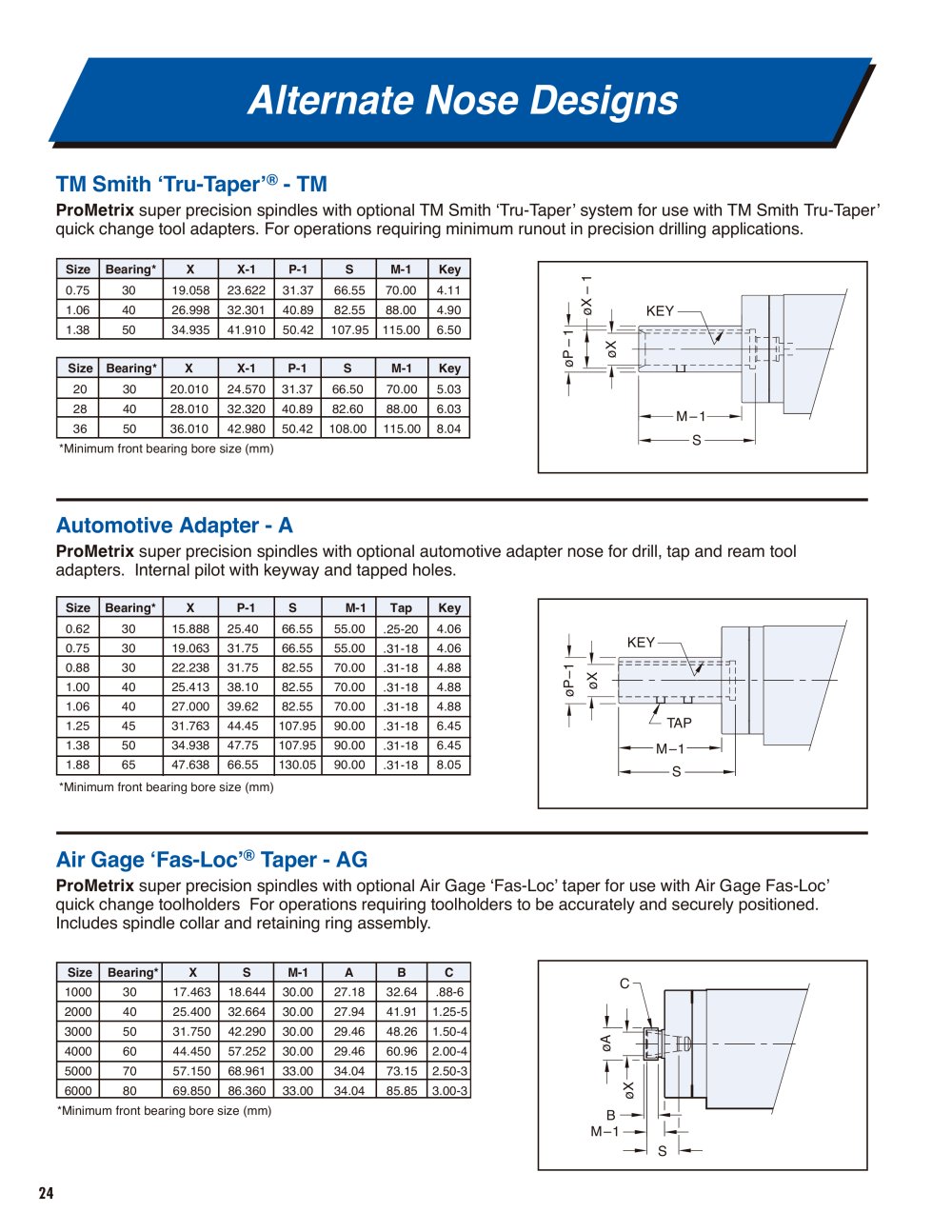

Iternate Nose Designs
ProMetrix super precision spindles with optional TM Smith 'Tru-Taper' system for use with TM Smith Tru-Taper' quick change tool adapters. For operations requiring minimum runout in precision drilling applications.
Size
Bearing*
X
X-1
P-1
S
M-1
Key
0.75
30
19.058
23.622
31.37
66.55
70.00
4.11
1.06
40
26.998
32.301
40.89
82.55
88.00
4.90
1.38
50
34.935
41.910
50.42
107.95
115.00
6.50
Size
Bearing*
X
X-1
P-1
S
M-1
Key
20
30
20.010
24.570
31.37
66.50
70.00
5.03
28
40
28.010
32.320
40.89
82.60
88.00
6.03
36
50
36.010
42.980
50.42
108.00
115.00
8.04
'Minimum front bearing bore size (mm)
Automotive Adapter - A
ProMetrix super precision spindles with optional automotive adapter nose for drill, tap and ream tool adapters. Internal pilot with keyway and tapped holes.
Size
Bearing*
X
P-1
S
M-1
Tap
Key
0.62
30
15.888
25.40
66.55
55.00
.25-20
4.06
0.75
30
19.063
31.75
66.55
55.00
.31-18
4.06
0.88
30
22.238
31.75
82.55
70.00
.31-18
4.88
1.00
40
25.413
38.10
82.55
70.00
.31-18
4.88
1.06
40
27.000
39.62
82.55
70.00
.31-18
4.88
1.25
45
31.763
44.45
107.95
90.00
.31-18
6.45
1.38
50
34.938
47.75
107.95
90.00
.31-18
6.45
1.88
65
47.638
66.55
130.05
90.00
.31-18
8.05
'Minimum front bearing bore size (mm)
Air Gage 'Fas-Loc'® Taper - AG
ProMetrix super precision spindles with optional Air Gage 'Fas-Loc' taper for use with Air Gage Fas-Loc' quick change toolholders For operations requiring toolholders to be accurately and securely positioned. Includes spindle collar and retaining ring assembly.
Size
Bearing*
X
S
M-1
A
B
C
1000
30
17.463
18.644
30.00
27.18
32.64
.88-6
2000
40
25.400
32.664
30.00
27.94
41.91
1.25-5
3000
50
31.750
42.290
30.00
29.46
48.26
1.50-4
4000
60
44.450
57.252
30.00
29.46
60.96
2.00-4
5000
70
57.150
68.961
33.00
34.04
73.15
2.50-3
6000
80
69.850
86.360
33.00
34.04
85.85
3.00-3
'Minimum front bearing bore size (mm)
