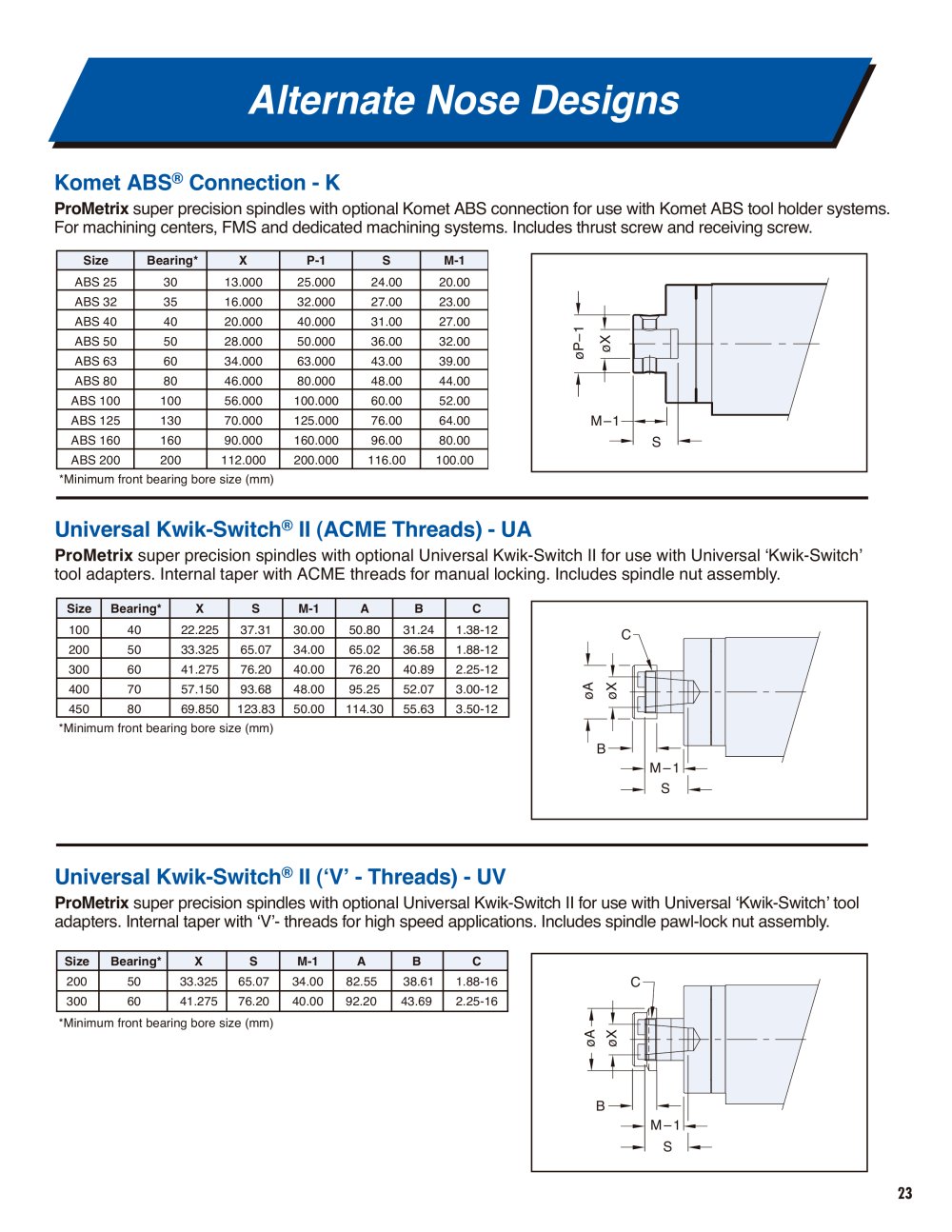

| | | Iternate Nose Designs | | |
| | | |
| | | ProMetrix super precision spindles with optional Komet ABS connection for use with Komet ABS tool holder systems. For machining centers, FMS and dedicated machining systems. Includes thrust screw and receiving screw. | | |
| | | |
| | | | | | | | | | | | | | Size | Bearing* | X | P-1 | S | M-1 | | | | ABS 25 | 30 | 13.000 | 25.000 | 24.00 | 20.00 | | | | ABS 32 | 35 | 16.000 | 32.000 | 27.00 | 23.00 | | | | ABS 40 | 40 | 20.000 | 40.000 | 31.00 | 27.00 | | | | ABS 50 | 50 | 28.000 | 50.000 | 36.00 | 32.00 | | | | ABS 63 | 60 | 34.000 | 63.000 | 43.00 | 39.00 | | | | ABS 80 | 80 | 46.000 | 80.000 | 48.00 | 44.00 | | | | ABS 100 | 100 | 56.000 | 100.000 | 60.00 | 52.00 | | | | ABS 125 | 130 | 70.000 | 125.000 | 76.00 | 64.00 | | | | ABS 160 | 160 | 90.000 | 160.000 | 96.00 | 80.00 | | | | ABS 200 | 200 | 112.000 | 200.000 | 116.00 | 100.00 | | | | | | | | | | | | | |
| | | |
| | | 'Minimum front bearing bore size (mm) | | |
| | | |
| | | Universal Kwik-Switch® II (ACME Threads) - UA ProMetrix super precision spindles with optional Universal Kwik-Switch II for use with Universal 'Kwik-Switch' tool adapters. Internal taper with ACME threads for manual locking. Includes spindle nut assembly. | | |
| | | |
| | | | | | | | | | | | | | | | Size | Bearing* | X | S | M-1 | A | B | C | | | | 100 | 40 | 22.225 | 37.31 | 30.00 | 50.80 | 31.24 | 1.38-12 | | | | 200 | 50 | 33.325 | 65.07 | 34.00 | 65.02 | 36.58 | 1.88-12 | | | | 300 | 60 | 41.275 | 76.20 | 40.00 | 76.20 | 40.89 | 2.25-12 | | | | 400 | 70 | 57.150 | 93.68 | 48.00 | 95.25 | 52.07 | 3.00-12 | | | | 450 | 80 | 69.850 | 123.83 | 50.00 | 114.30 | 55.63 | 3.50-12 | | | | | | | | | | | | | | | |
| | | |
| | | 'Minimum front bearing bore size (mm) | | |
| | | |
| | | Universal Kwik-Switch® II ('V' - Threads) - UV ProMetrix super precision spindles with optional Universal Kwik-Switch II for use with Universal 'Kwik-Switch' tool adapters. Internal taper with 'V'- threads for high speed applications. Includes spindle pawl-lock nut assembly. | | |
| | | |
| | | | | | | | | | | | | | | | Size | Bearing* | X | S | M-1 | A | B | C | | | | 200 | 50 | 33.325 | 65.07 | 34.00 | 82.55 | 38.61 | 1.88-16 | | | | 300 | 60 | 41.275 | 76.20 | 40.00 | 92.20 | 43.69 | 2.25-16 | | | | | | | | | | | | | | | |
| | | |
| | | 'Minimum front bearing bore size (mm) | | |
| | | |
| | | 23 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | |
