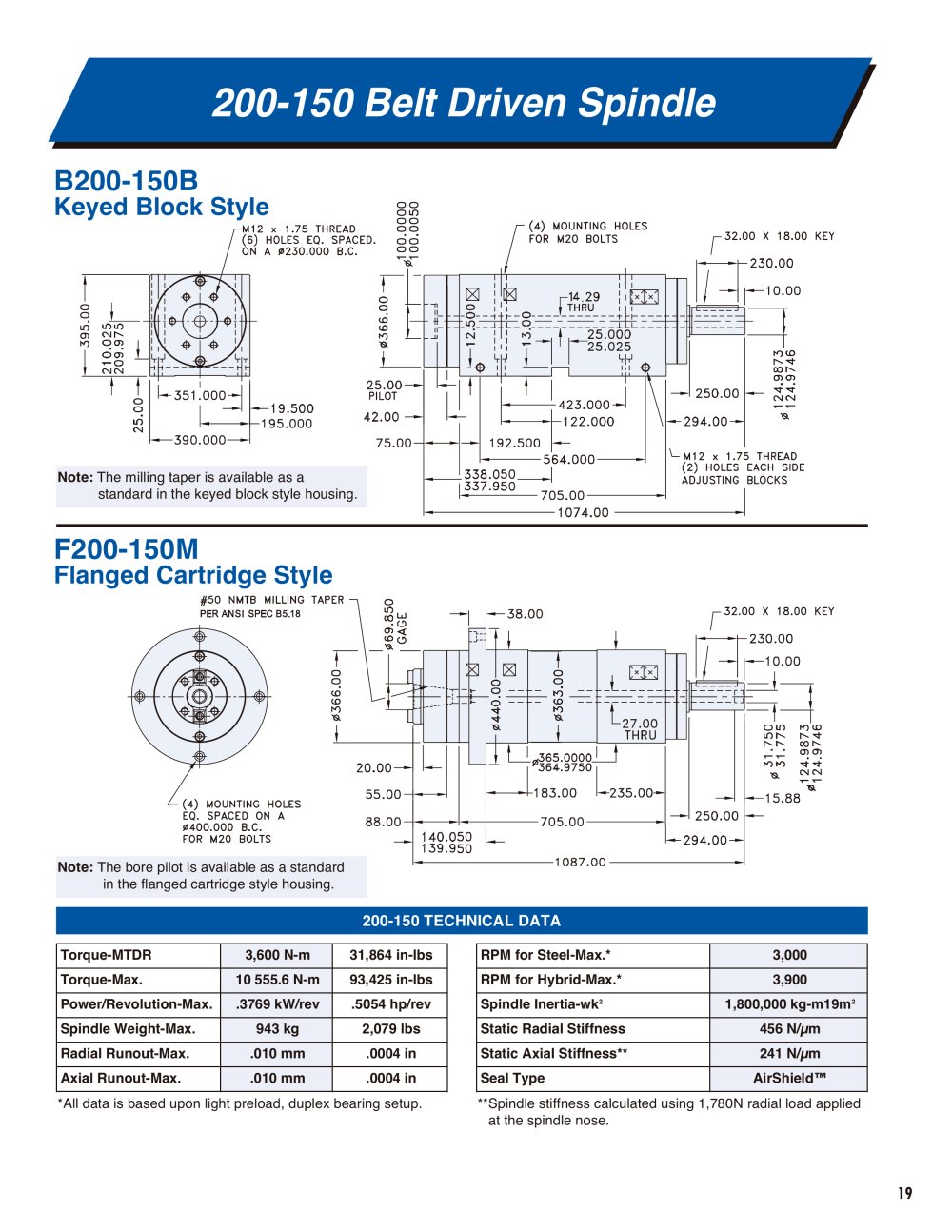

200-150 Belt Driven Spindle

B200-150B

Keyed Block Style

Note: The milling taper is available as astandard in the keyed block style housing.

F200-150M

Flanged Cartridge Style

Note: The bore pilot is available as a standardin the flanged cartridge style housing.

200-150 TECHNICAL DATA

Torque-MTDR 3,600 N-m 31,864 in-lbs RPM for Steel-Max.* 3,000 Torque-Max. 10 555.6 N-m 93,425 in-lbs RPM for Hybrid-Max.* 3,900 Power/Revolution-Max. .3769 kW/rev .5054 hp/rev Spindle Inertia-wk
2 1,800,000 kg-m19m
2 Spindle Weight-Max. 943 kg 2,079 lbs Static Radial Stiffness 456 N/µm Radial Runout-Max. .010 mm .0004 in Static Axial Stiffness** 241 N/µm Axial Runout-Max. .010 mm .0004 in Industrial seal Type AirShield™ *All data is based upon light preload, duplex bearing setup. **Spindle stiffness calculated using 1,780N radial load appliedat the spindle nose.

19
