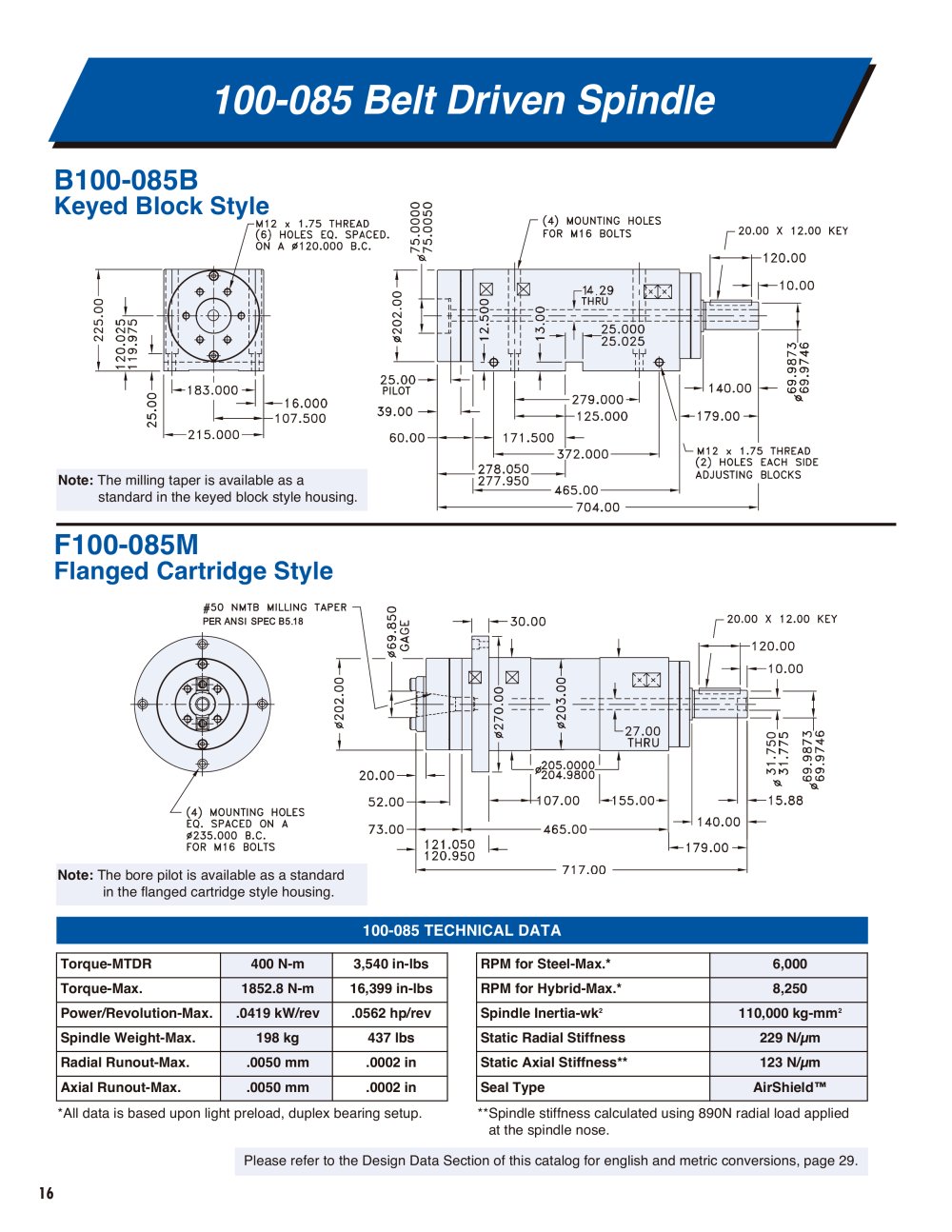

100-085 Belt Driven Spindle

B100-085B

Keyed Block Style

Note: The milling taper is available as astandard in the keyed block style housing.

F100-085M

Flanged Cartridge Style

Note: The bore pilot is available as a standardin the flanged cartridge style housing.

100-085 TECHNICAL DATA

Torque-MTDR 400 N-m 3,540 in-lbs RPM for Steel-Max.* 6,000 Torque-Max. 1852.8 N-m 16,399 in-lbs RPM for Hybrid-Max.* 8,250 Power/Revolution-Max. .0419 kW/rev .0562 hp/rev Spindle Inertia-wk
2 110,000 kg-mm
2 Spindle Weight-Max. 198 kg 437 lbs Static Radial Stiffness 229 N/µm Radial Runout-Max. .0050 mm .0002 in Static Axial Stiffness** 123 N/µm Axial Runout-Max. .0050 mm .0002 in Industrial seal Type AirShield™ *All data is based upon light preload, duplex bearing setup. **Spindle stiffness calculated using 890N radial load applied at the spindle nose. Please refer to the Design Data Section of this catalog for english and metric conversions, page 29.

16
