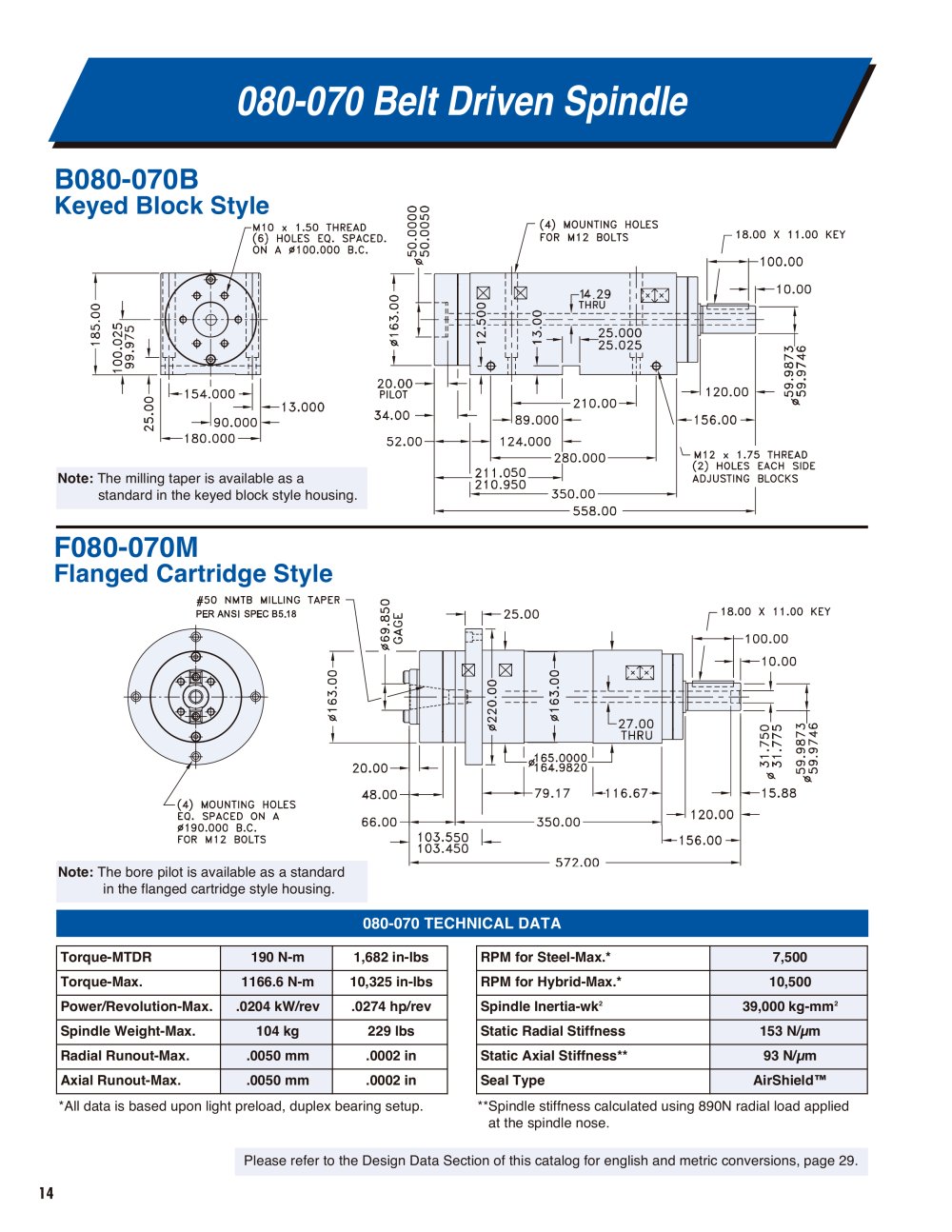

080-070 Belt Driven Spindle

B080-070B

Keyed Block Style

Note: The milling taper is available as astandard in the keyed block style housing.

F080-070M

Flanged Cartridge Style

Note: The bore pilot is available as a standardin the flanged cartridge style housing.

080-070 TECHNICAL DATA

Torque-MTDR 190 N-m 1,682 in-lbs RPM for Steel-Max.* 7,500 Torque-Max. 1166.6 N-m 10,325 in-lbs RPM for Hybrid-Max.* 10,500 Power/Revolution-Max. .0204 kW/rev .0274 hp/rev Spindle Inertia-wk
2 39,000 kg-mm
2 Spindle Weight-Max. 104 kg 229 lbs Static Radial Stiffness 153 N/µm Radial Runout-Max. .0050 mm .0002 in Static Axial Stiffness** 93 N/µm Axial Runout-Max. .0050 mm .0002 in Industrial seal Type AirShield™ *All data is based upon light preload, duplex bearing setup. **Spindle stiffness calculated using 890N radial load applied at the spindle nose. Please refer to the Design Data Section of this catalog for english and metric conversions, page 29.

14
