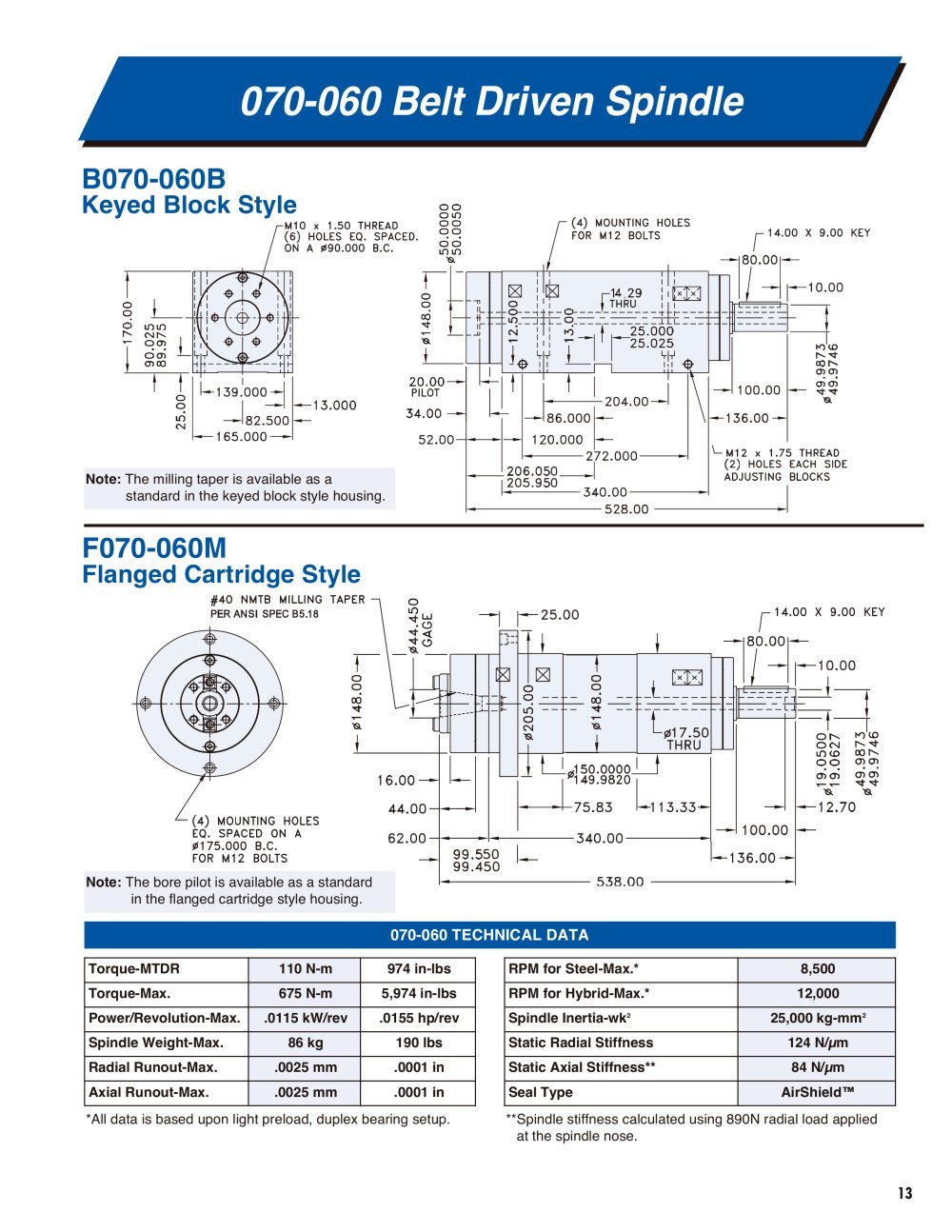

070-060 Belt Driven Spindle

B070-060B

Keyed Block Style

Note: The milling taper is available as astandard in the keyed block style housing.

F070-060M

Flanged Cartridge Style

Note: The bore pilot is available as a standardin the flanged cartridge style housing.

070-060 TECHNICAL DATA

Torque-MTDR 110 N-m 974 in-lbs RPM for Steel-Max.* 8,500 Torque-Max. 675 N-m 5,974 in-lbs RPM for Hybrid-Max.* 12,000 Power/Revolution-Max. .0115 kW/rev .0155 hp/rev Spindle Inertia-wk
2 25,000 kg-mm
2 Spindle Weight-Max. 86 kg 190 lbs Static Radial Stiffness 124 N/µm Radial Runout-Max. .0025 mm .0001 in Static Axial Stiffness** 84 N/µm Axial Runout-Max. .0025 mm .0001 in Industrial seal Type AirShield™ *All data is based upon light preload, duplex bearing setup. **Spindle stiffness calculated using 890N radial load applied at the spindle nose.

13
