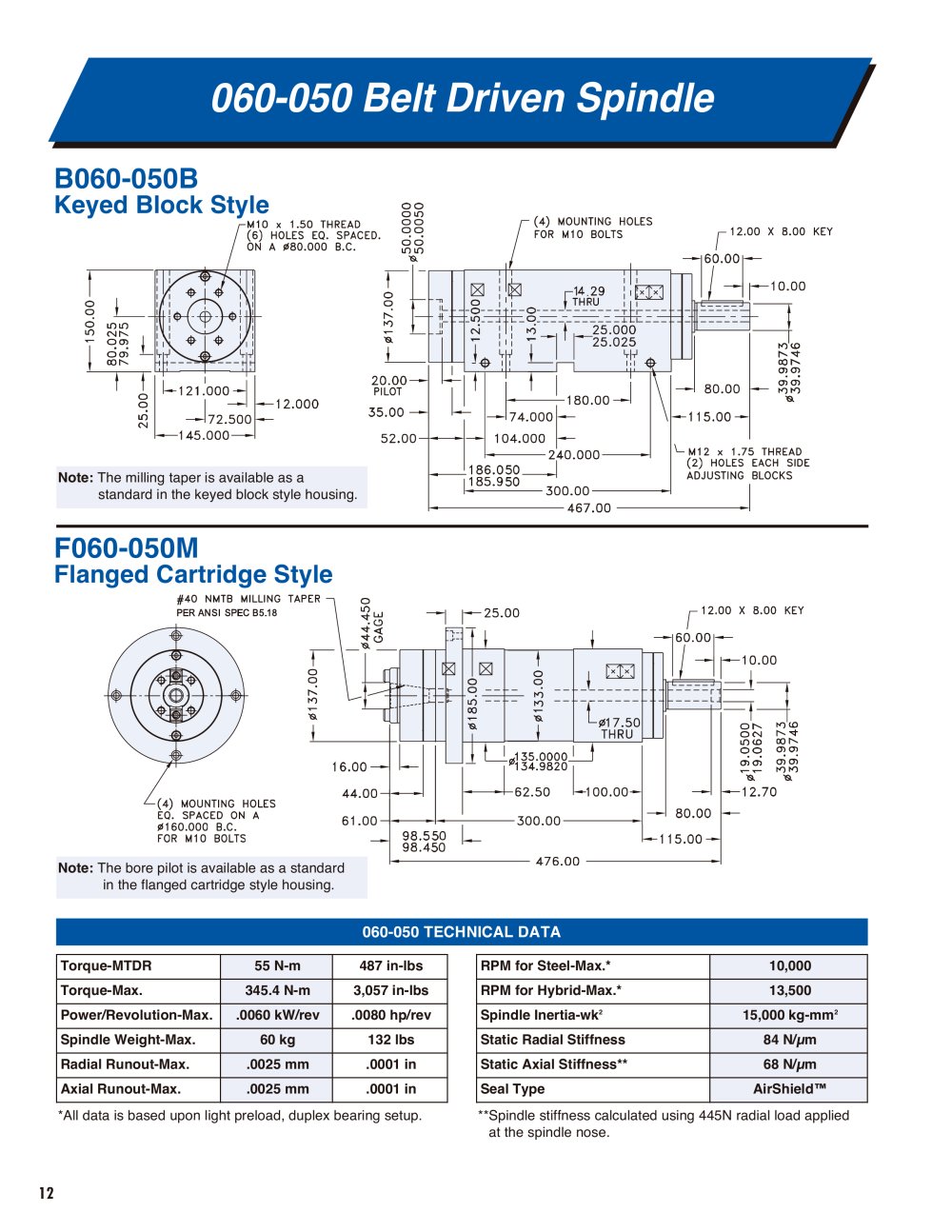

060-050 Belt Driven Spindle

B060-050B

Keyed Block Style

Note: The milling taper is available as astandard in the keyed block style housing.

F060-050M

Flanged Cartridge Style

Note: The bore pilot is available as a standardin the flanged cartridge style housing.

060-050 TECHNICAL DATA

Torque-MTDR 55 N-m 487 in-lbs RPM for Steel-Max.* 10,000 Torque-Max. 345.4 N-m 3,057 in-lbs RPM for Hybrid-Max.* 13,500 Power/Revolution-Max. .0060 kW/rev .0080 hp/rev Spindle Inertia-wk
2 15,000 kg-mm
2 Spindle Weight-Max. 60 kg 132 lbs Static Radial Stiffness 84 N/µm Radial Runout-Max. .0025 mm .0001 in Static Axial Stiffness** 68 N/µm Axial Runout-Max. .0025 mm .0001 in Industrial seal Type AirShield™ *All data is based upon light preload, duplex bearing setup. **Spindle stiffness calculated using 445N radial load applied at the spindle nose.

12
