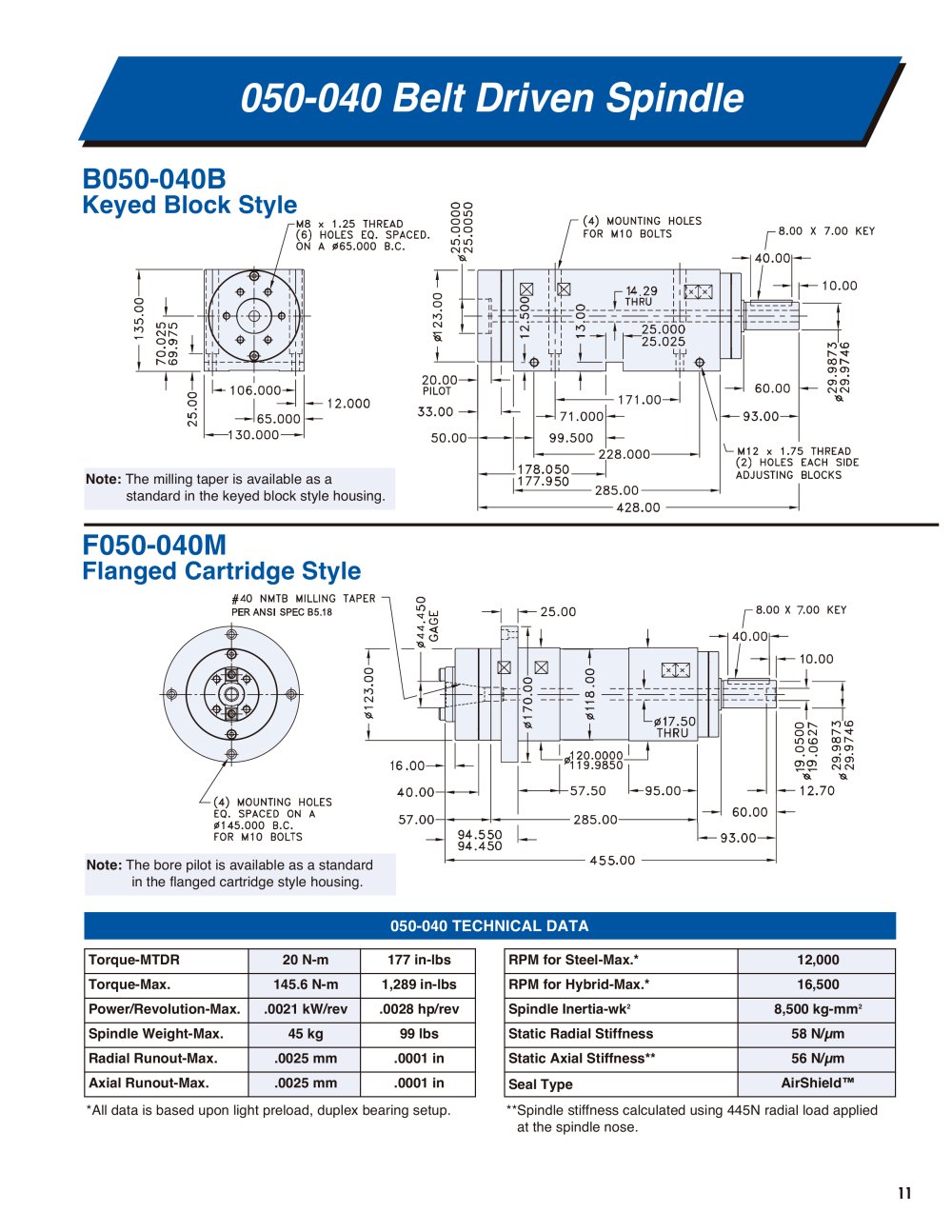

050-040 Belt Driven Spindle

B050-040B

Keyed Block Style

Note: The milling taper is available as astandard in the keyed block style housing.

F050-040M

Flanged Cartridge Style

Note: The bore pilot is available as a standardin the flanged cartridge style housing.

050-040 TECHNICAL DATA

Torque-MTDR 20 N-m 177 in-lbs RPM for Steel-Max.* 12,000 Torque-Max. 145.6 N-m 1,289 in-lbs RPM for Hybrid-Max.* 16,500 Power/Revolution-Max. .0021 kW/rev .0028 hp/rev Spindle Inertia-wk
2 8,500 kg-mm
2 Spindle Weight-Max. 45 kg 99 lbs Static Radial Stiffness 58 N/µm Radial Runout-Max. .0025 mm .0001 in Static Axial Stiffness** 56 N/µm Axial Runout-Max. .0025 mm .0001 in Industrial seal Type AirShield™ *All data is based upon light preload, duplex bearing setup. **Spindle stiffness calculated using 445N radial load applied at the spindle nose.
