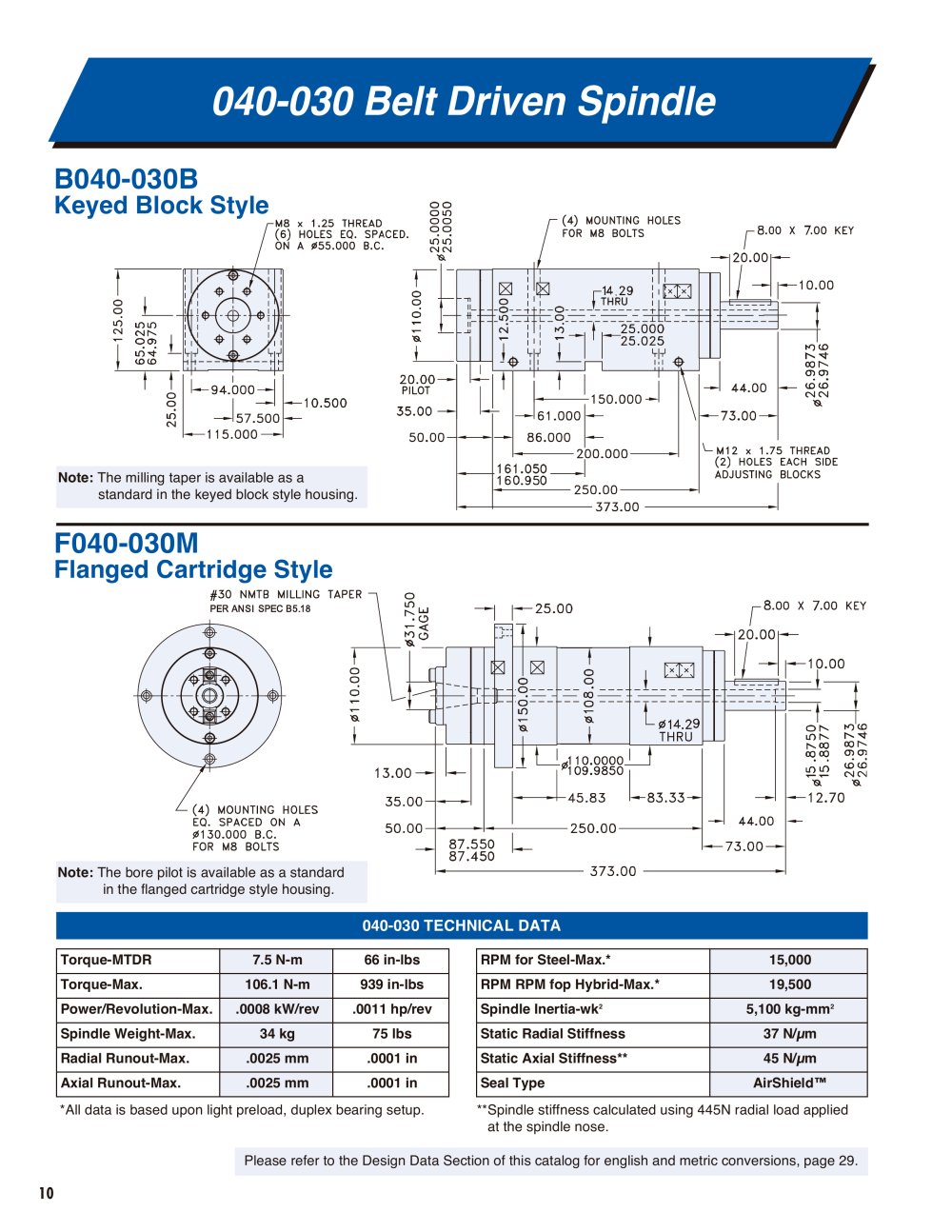

040-030 Belt Driven Spindle

B040-030B

Keyed Block Style

Note: The milling taper is available as astandard in the keyed block style housing.

F040-030M

Flanged Cartridge Style

Note: The bore pilot is available as a standardin the flanged cartridge style housing.

040-030 TECHNICAL DATA

Torque-MTDR 7.5 N-m 66 in-lbs RPM for Steel-Max.* 15,000 Torque-Max. 106.1 N-m 939 in-lbs RPM RPM fop Hybrid-Max.* 19,500 Power/Revolution-Max. .0008 kW/rev .0011 hp/rev Spindle Inertia-wk
2 5,100 kg-mm
2 Spindle Weight-Max. 34 kg 75 lbs Static Radial Stiffness 37 N/µm Radial Runout-Max. .0025 mm .0001 in Static Axial Stiffness** 45 N/µm Axial Runout-Max. .0025 mm .0001 in Seal Type AirShield™ *All data is based upon light preload, duplex bearing setup. **Spindle stiffness calculated using 445N radial load applied at the spindle nose. Please refer to the Design Data Section of this catalog for english and metric conversions, page 29.
