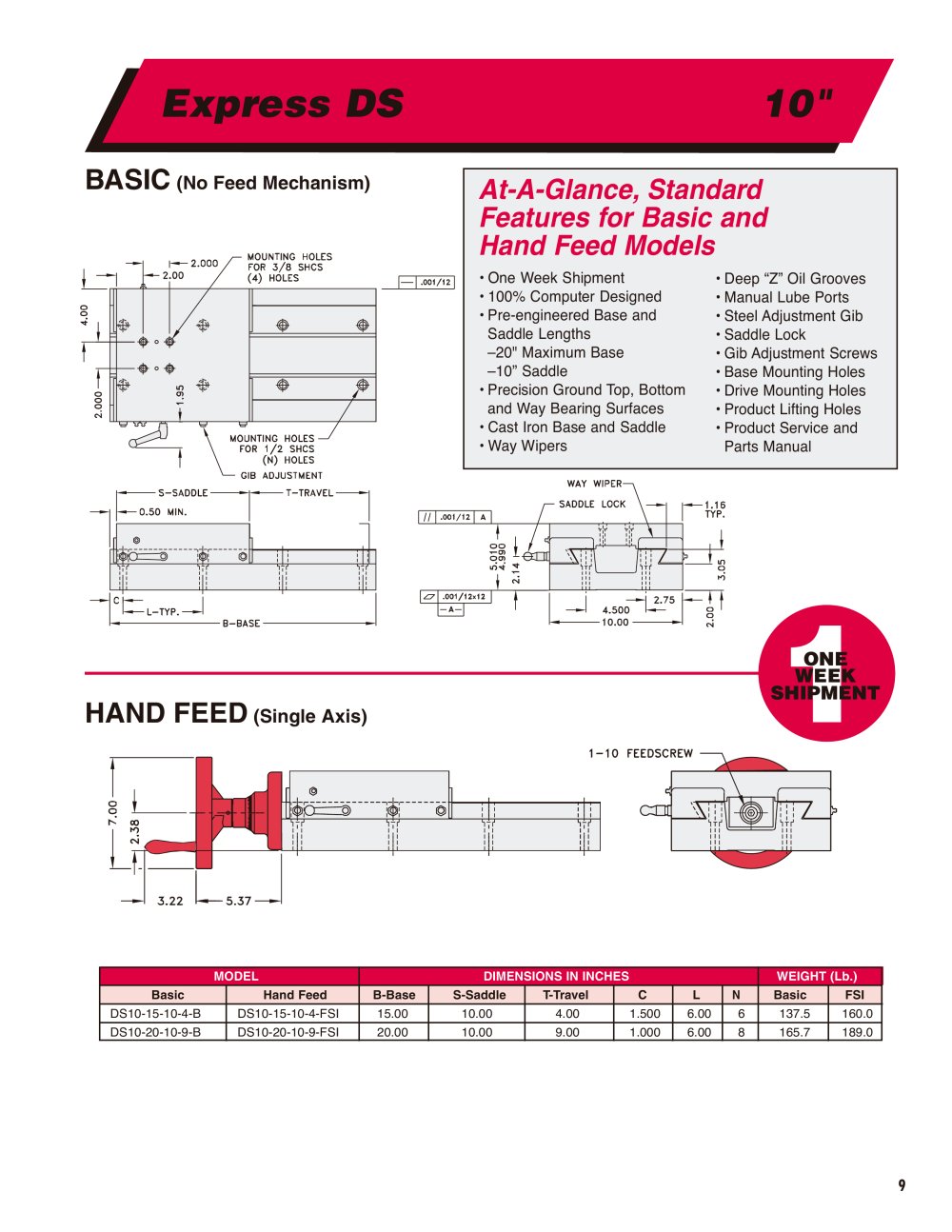

Express DS10"

BASIC

(No Feed Mechanism)

At-A-Glance,Standard Features for Basic and Hand Feed Models

• One Week Shipment• 100% Computer Designed • Pre-engineered Base andSaddle Lengths –20" Maximum Base –10” Saddle• Precision Ground Top, Bottom and Way Bearing Surfaces• Cast Iron Base and Saddle • Way Wipers • Deep “Z” Oil Grooves• Manual Lube Ports • Steel Adjustment Gib • Saddle Lock • Gib Adjustment Screws • Base Mounting Holes • Drive Mounting Holes • Product Lifting Holes • Product Service andParts Manual

ONE WEEKSHIPMENT

HANDFEED

(Single Axis)

1

MODELDIMENSIONS IN INCHESWEIGHT (Lb.) BasicHand Feed B-BaseS-Saddle T-Travel C L N BasicFSI DS10-15-10-4-BDS10-15-10-4-FSI 15.0010.004.001.500 6.00 6 137.5160.0DS10-20-10-9-BDS10-20-10-9-FSI 20.0010.009.001.000 6.00 8 165.7189.0
