How To Order

INDEX

Express & Select

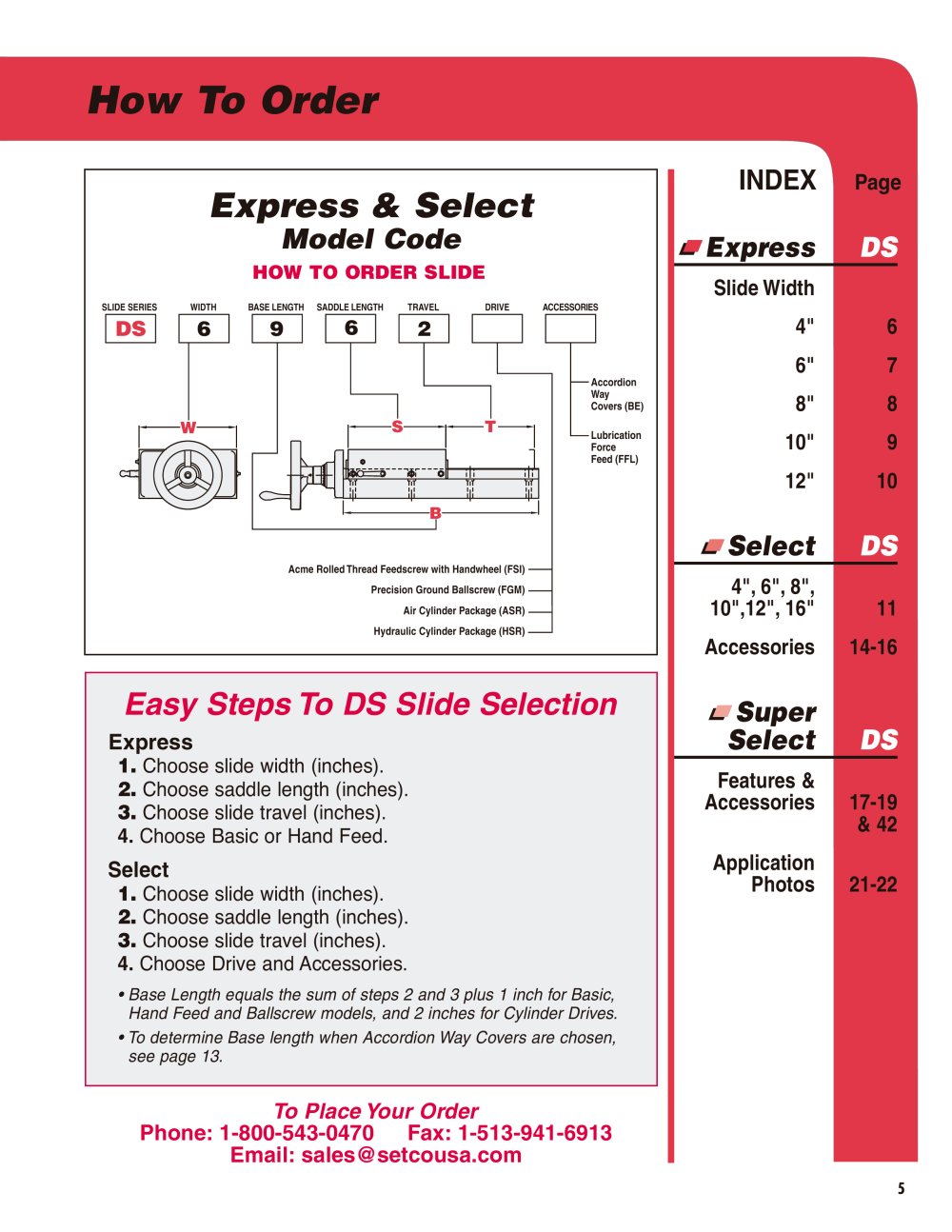

Model Code Express DS

HOW TO ORDER INDUSTRIAL SLIDE SLIDE SERIESWIDTHBASE LENGTHSADDLE LENGTHTRAVELDRIVEACCESSORIES

Slide Width4"6 6"7 8"810"9 12"10

DS6962

Accordion Way Covers (BE)Lubrication Force Feed (FFL) WSTB Acme Rolled Thread Feedscrew with Handwheel (FSI)Precision Ground Ballscrew (FGM)Air cylinder Package (ASR)Hydraulic cylinder Package (HSR)

Select DS

4",6",8",10",12",16"11Accessories14-16

Easy Steps To DS Slide Selection

Super

Express

Select DS

1. Choose slide width (inches). 2. Choose saddle length (inches).

Features & Accessories17-19& 42Application Photos21-22

3. Choose slide travel (inches). 4. Choose Basic or Hand Feed.

Select

1. Choose slide width (inches). 2. Choose saddle length (inches). 3. Choose slide travel (inches). 4. Choose Drive and Accessories.
• Base Length equals the sum of steps 2 and 3 plus 1 inch for Basic,Hand Feed and Ballscrew models, and 2 inches for Cylinder Drives.• To determine Base length when Accordion Way Covers are chosen, see page 13.

To Place Your Order Phone:1-800-543-0470 Fax:1-513-941-6913Email:sales@setcousa.com
