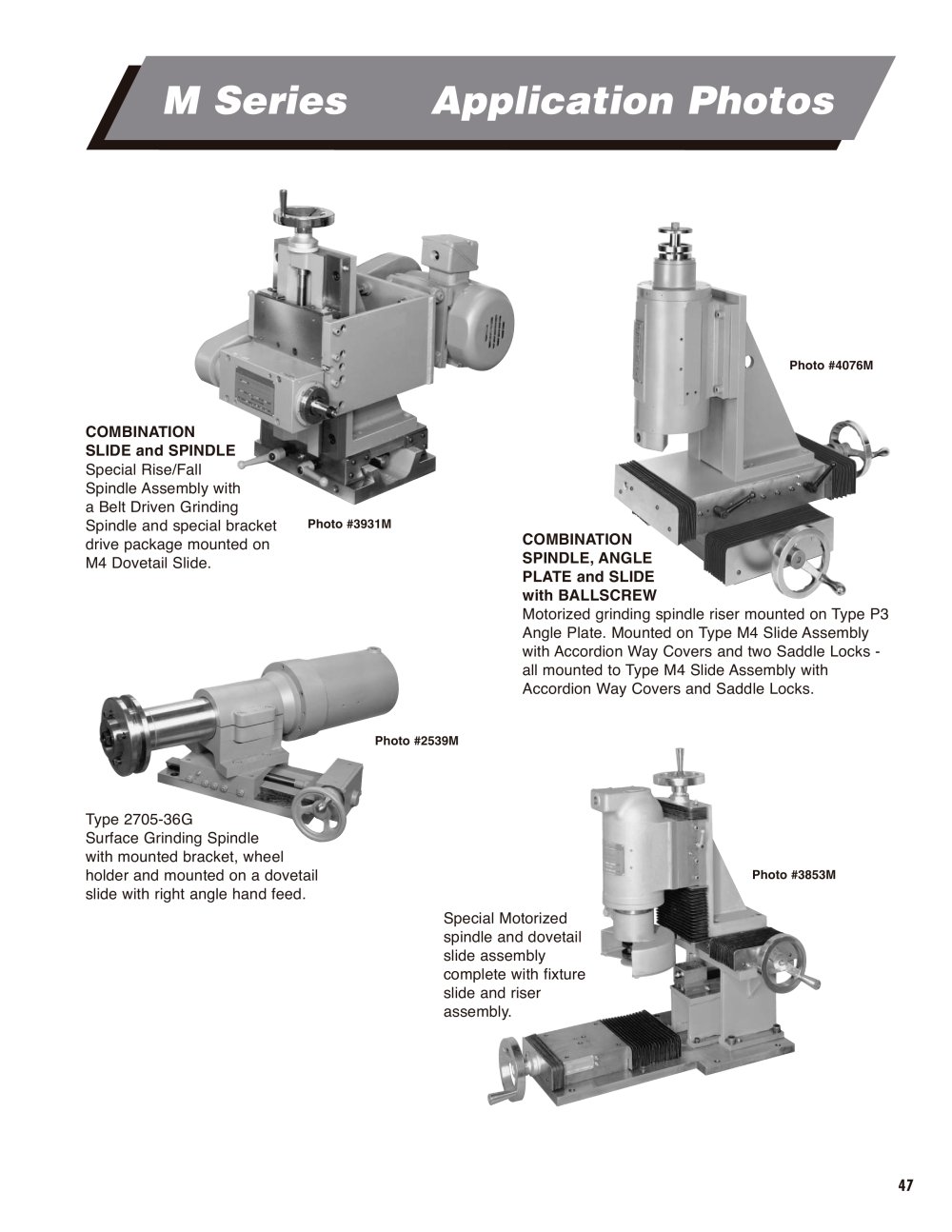

M SeriesApplication Photos

COMBINATIONSPINDLE,ANGLE PLATE and SLIDE with BALLSCREW Motorized grinding spindle riser mounted on Type P3Angle Plate. Mounted on Type M4 Slide Assembly with Accordion Way Covers and two Saddle Locks - all mounted to Type M4 Slide Assembly with Accordion Way Covers and Saddle Locks. COMBINATION SLIDE and SPINDLE Special Rise/Fall Spindle Assembly with a Belt Driven Grinding Spindle and special bracket drive package mounted on M4 Dovetail Slide.
Photo #3931M Photo #2539M Photo #3853M Photo #4076M Type 2705-36G Surface Grinding Spindle with mounted bracket, wheel holder and mounted on a dovetail slide with right angle hand feed. Special Motorized spindle and dovetail slide assembly complete with fixture slide and riser assembly. 47
