Series
iccessories

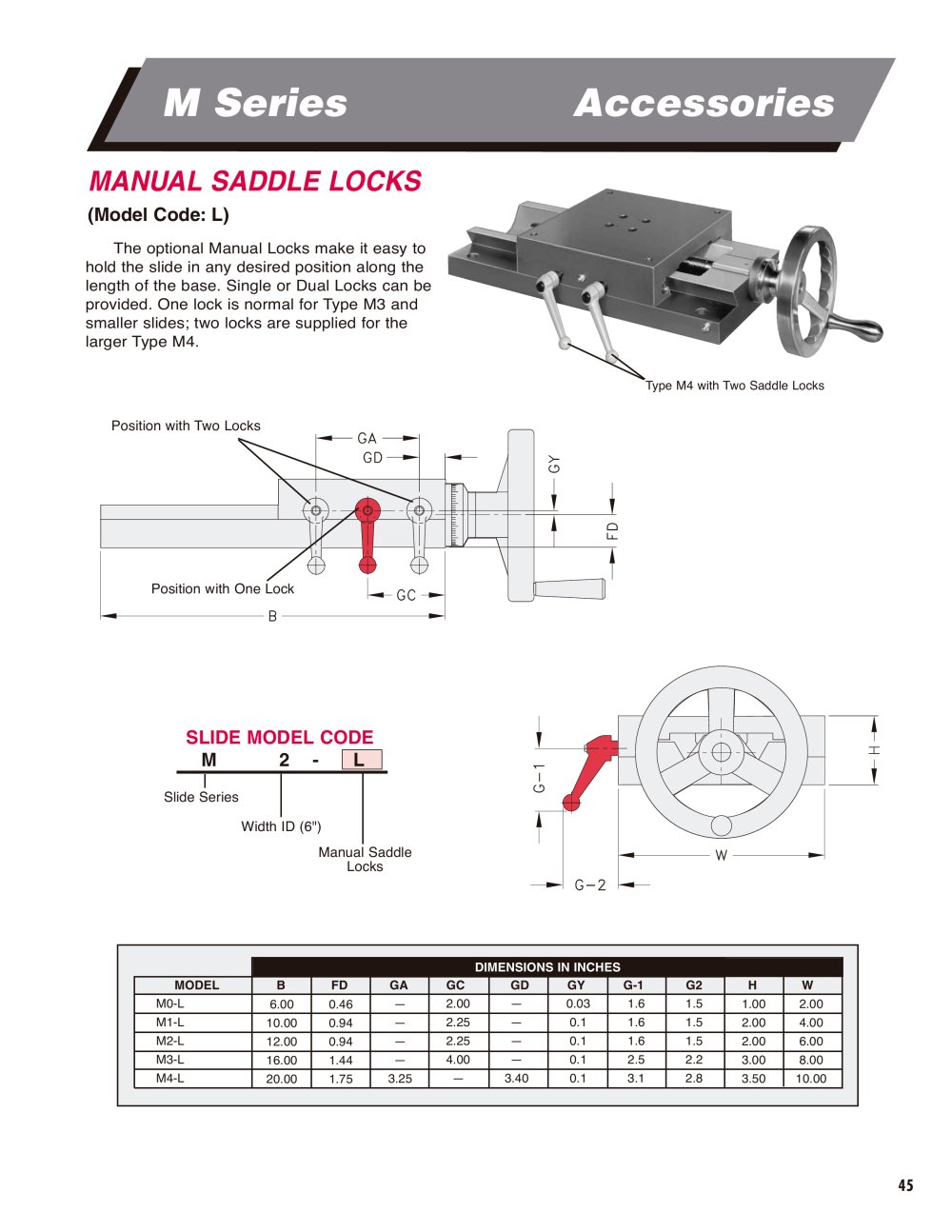

MANUAL SADDLE LOCKS
(Model Code: L)
The optional Manual Locks make it easy to hold the slide in any desired position along the length of the base. Single or Dual Locks can be provided. One lock is normal for Type M3 and smaller slides; two locks are supplied for the larger Type M4.
Type M4 with Two Saddle Locks
Position with Two Locks
Position with One
SLIDE MODEL CODE
L
M
2
1-
Series
Slide
Width ID (6")
Manual Saddle Locks
G-2
DIMENSIONS IN INCHES
MODEL
B
FD
GA
GC
GD
GY
G-1
G2
H
W
M0-L
0.46
—
2.00
—
0.03
1.6
1.5
1.00
2.00
M1-L
10.00
0.94
—
2.25
—
0.1
1.6
1.5
2.00
4.00
M2-L
12.00
0.94
—
2.25
—
0.1
1.6
1.5
2.00
6.00
M3-L
16.00
1.44
—
4.00
—
0.1
2.5
2.2
3.00
8.00
M4-L
3.25
—
3.40
0.1
3.1
2.8
3.50
10.00
45
