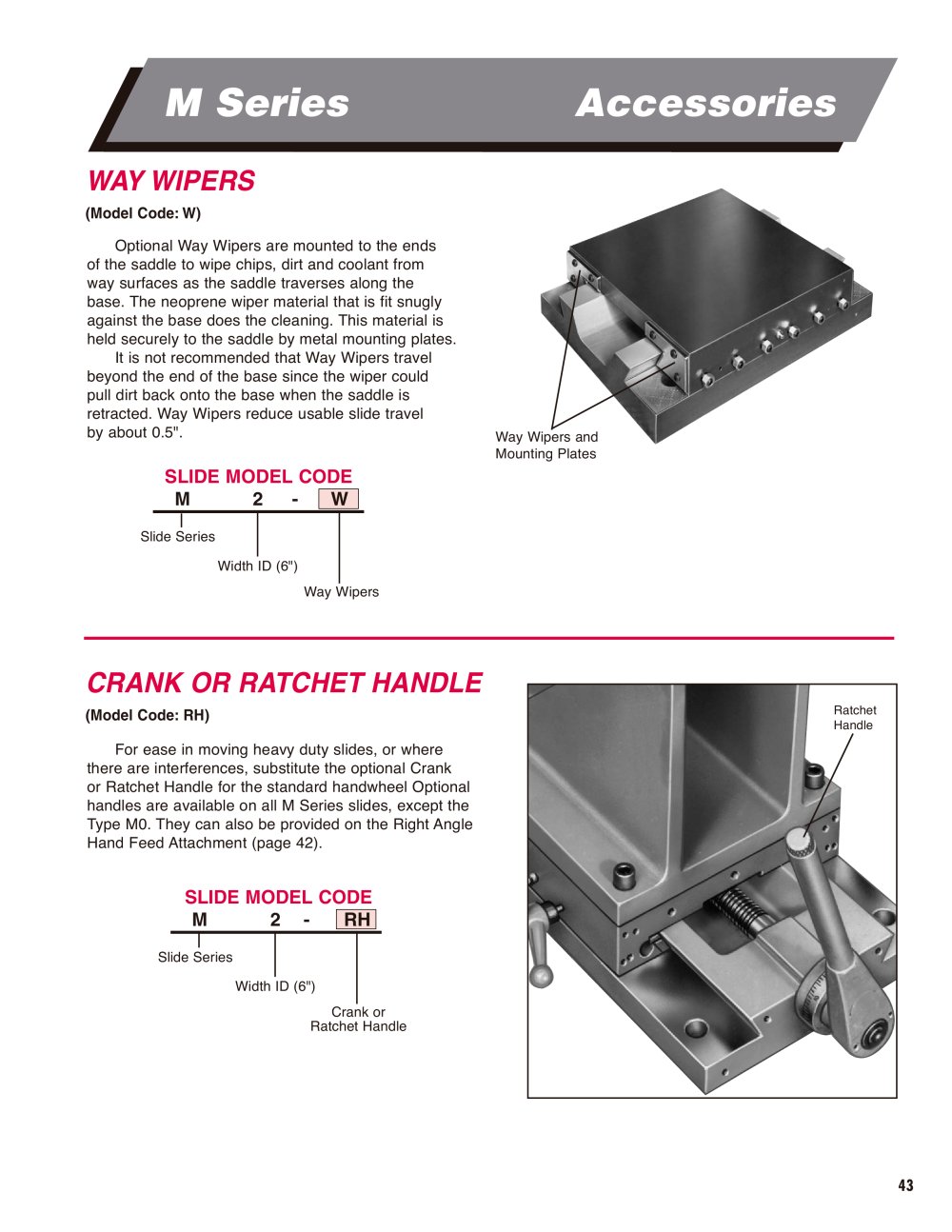

M SeriesAccessories

WAY WIPERS

(Model Code:W) Optional Way Wipers are mounted to the ends of the saddle to wipe chips, dirt and coolant from way surfaces as the saddle traverses along the base. The neoprene wiper material that is fit snugly against the base does the cleaning. This material is held securely to the saddle by metal mounting plates.It is not recommended that Way Wipers travelbeyond the end of the base since the wiper could pull dirt back onto the base when the saddle is retracted. Way Wipers reduce usable slide travel by about 0.5".

Way Wipers and Mounting Plates

SLIDE MODEL CODEM 2 - W

Slide SeriesWay Wipers Width ID (6")

CRANK OR RATCHET HANDLE

(Model Code:RH)

Ratchet Handle

For ease in moving heavy duty slides, or wherethere are interferences, substitute the optional Crank or Ratchet Handle for the standard handwheel Optional handles are available on all M Series slides, except the Type M0. They can also be provided on the Right Angle Hand Feed Attachment (page 42).

SLIDE MODEL CODEM 2 - RH

Slide SeriesCrank orRatchet Handle Width ID (6")

43
