| | | ACCORDION WAY COVERS* (Model Code: B) | | |
| | | |

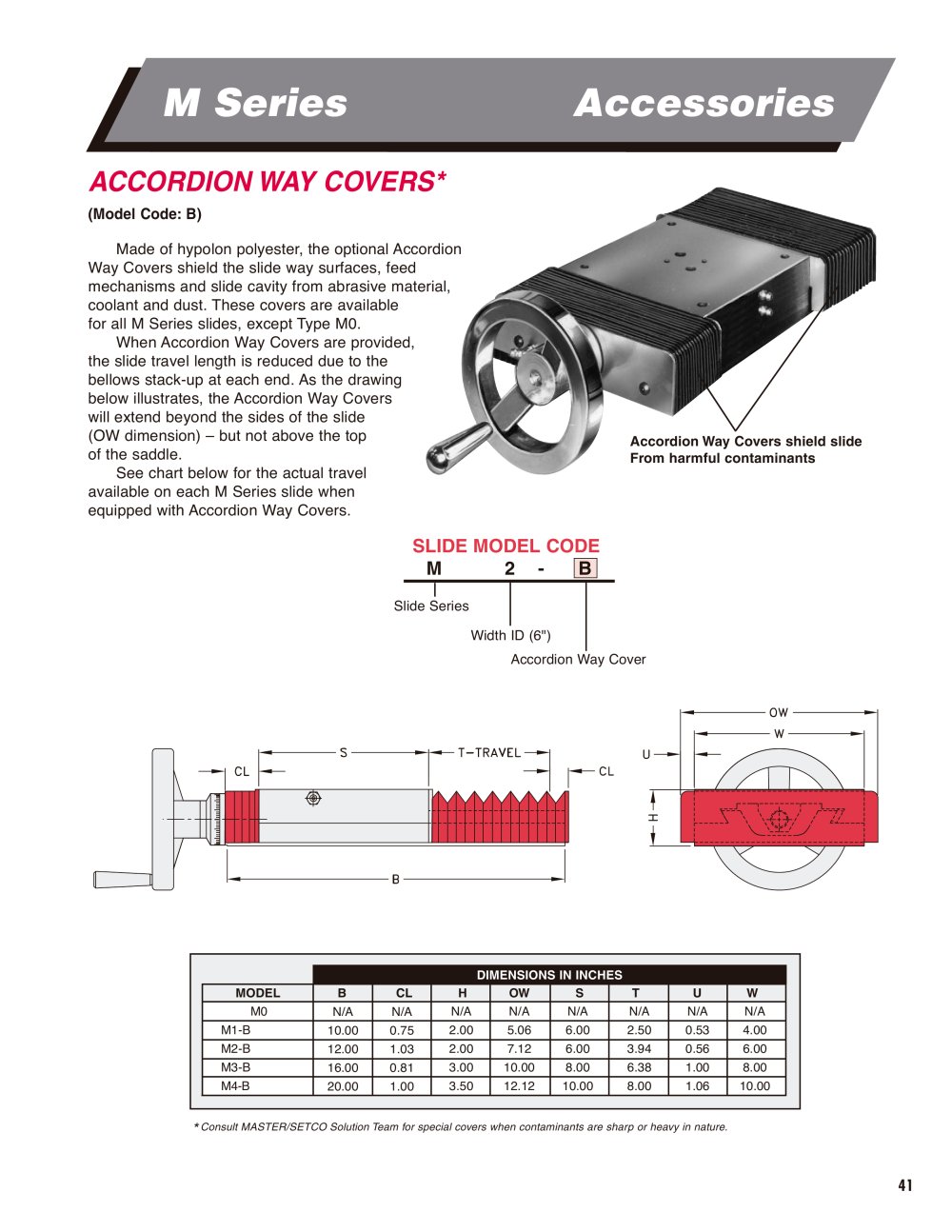

| | | Made of hypolon polyester, the optional Accordion Way Covers shield the slide way surfaces, feed mechanisms and slide cavity from abrasive material, coolant and dust. These covers are available for all M Series slides, except Type M0. When Accordion Way Covers are provided, the slide travel length is reduced due to the | | |
| | | |
| | | bellows stack-up at each end. As thebelow illustrates, the Accordion Way | | urawini Covers | | | |
| | | |
| | | extend beyond the sides of the slide | |
| | | Wl | | |
| | | |
| | | |
| | | (OW dimension) - but not above the top of the saddle. See chart below for the actual travel available on each M Series slide when equipped with Accordion Way Covers. | | |
| | | |
| | | SLIDE MODEL CODE M 2 -_[E | | |
| | | |
| | | Slide | | Series | | |
| | | |
| | | Width ID (6") Accordion Way Cover | | |
| | | |
| | | | | | | | | | | | | | | | | MODEL | B | CL | H | OW | S | T | U | W | | | | M0 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | | | | M1-B | 10.00 | 0.75 | 2.00 | 5.06 | 6.00 | 2.50 | 0.53 | 4.00 | | | | M2-B | 12.00 | 1.03 | 2.00 | 7.12 | 6.00 | 3.94 | 0.56 | 6.00 | | | | M3-B | 16.00 | 0.81 | 3.00 | 10.00 | 8.00 | 6.38 | 1.00 | 8.00 | | | | M4-B | 20.00 | 1.00 | 3.50 | 12.12 | 10.00 | 8.00 | 1.06 | 10.00 | | | | | | | | | | | | | | | | |
| | | |
| | | *Consult MASTER/SETCO Solution Team for special covers when contaminants are sharp or heavy in nature. | | |
| | | |
