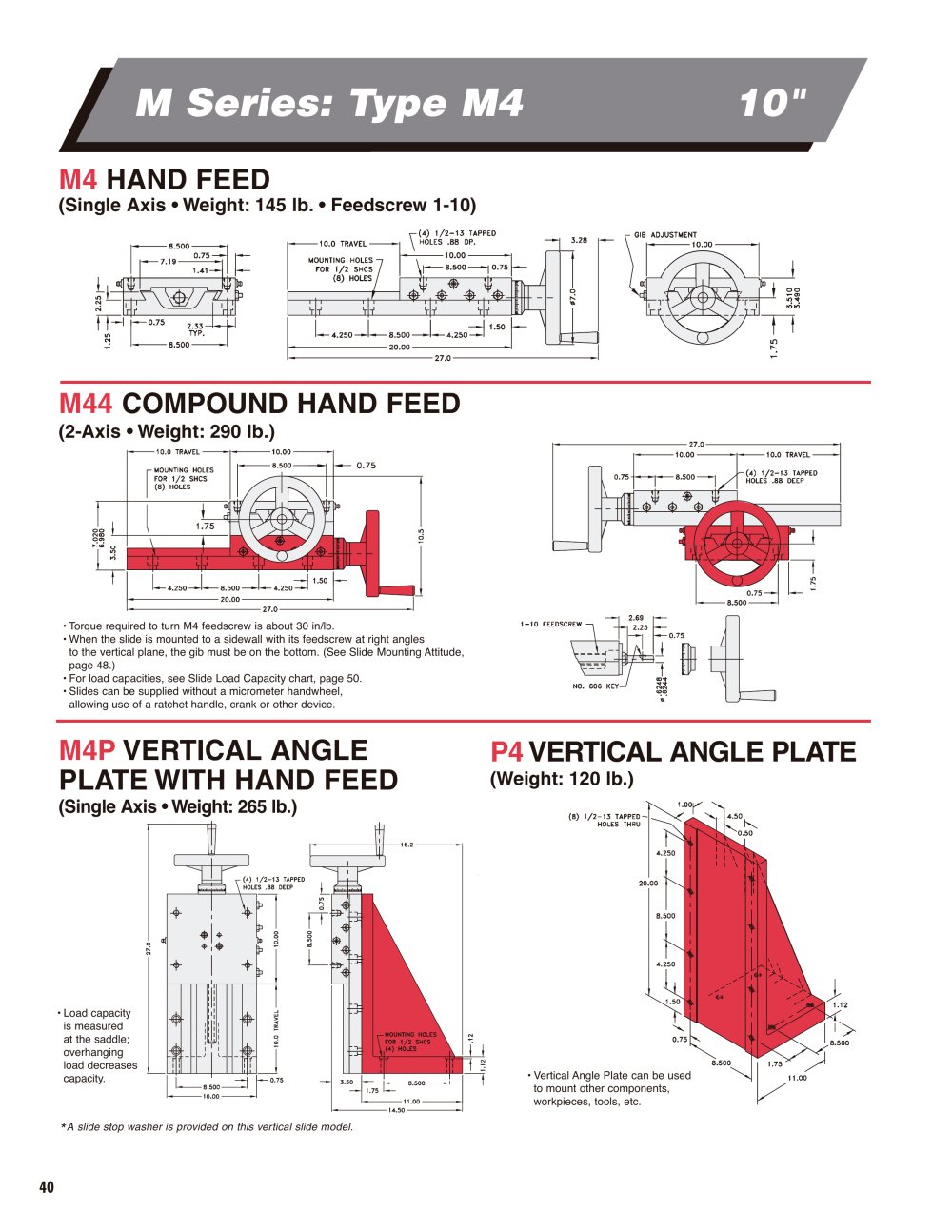

M Series: Type M410"

M4HAND FEED
(Single Axis • Weight:145 lb.• Feedscrew 1-10) M44COMPOUND HAND FEED
(2-Axis • Weight:290 lb.) • Torque required to turn M4 feedscrew is about 30 in/lb.• When the slide is mounted to a sidewall with its feedscrew at right angles to the vertical plane, the gib must be on the bottom. (See Slide Mounting Attitude, page 48.)• For load capacities, see Slide Load Capacity chart, page 50. • Slides can be supplied without a micrometer handwheel, allowing use of a ratchet handle, crank or other device. • Load capacity is measured at the saddle; overhanging load decreases capacity. M4PVERTICAL ANGLEPLATE WITH HAND FEED P4VERTICAL ANGLE PLATE
(Weight:120 lb.) (Single Axis • Weight:265 lb.) • Vertical Angle Plate can be used to mount other components, workpieces, tools, etc. * A slide stop washer is provided on this vertical slide model. 40
