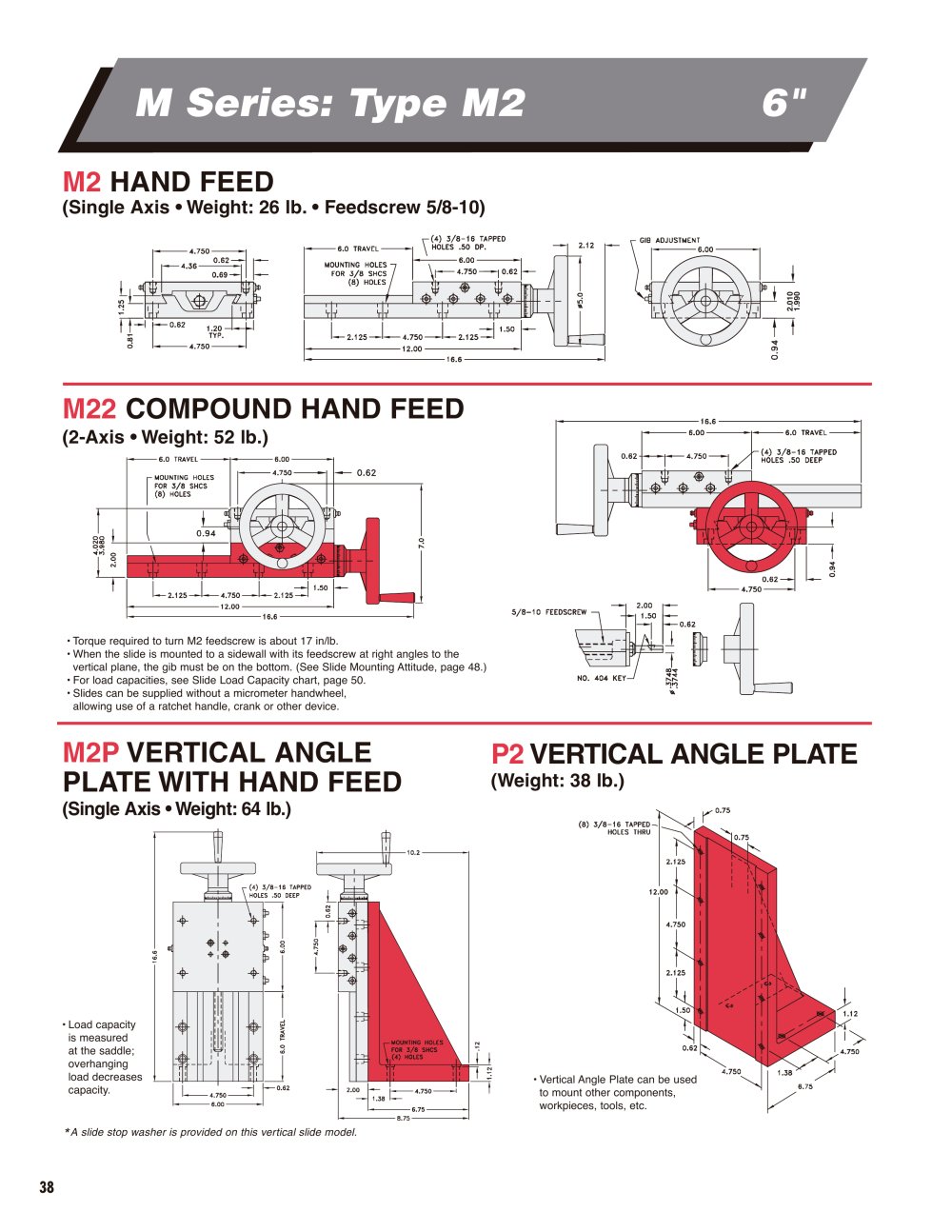

M Series: Type M26"

M2HAND FEED

(Single Axis • Weight:26 lb.• Feedscrew 5/8-10)

2.0101.990

M22COMPOUND HAND FEED

(2-Axis • Weight:52 lb.)

• Torque required to turn M2 feedscrew is about 17 in/lb. • When the slide is mounted to a sidewall with its feedscrew at right angles to the vertical plane, the gib must be on the bottom. (See Slide Mounting Attitude, page 48.)• For load capacities, see Slide Load Capacity chart, page 50. • Slides can be supplied without a micrometer handwheel, allowing use of a ratchet handle, crank or other device.

M2PVERTICAL ANGLEPLATE WITH HAND FEED P2VERTICAL ANGLE PLATE

(Weight:38 lb.) (Single Axis • Weight:64 lb.)

• Load capacity is measured at the saddle; overhanging load decreases capacity. • Vertical Angle Plate can be usedto mount other components, workpieces, tools, etc.

*

A slide stop washer is provided on this vertical slide model.
