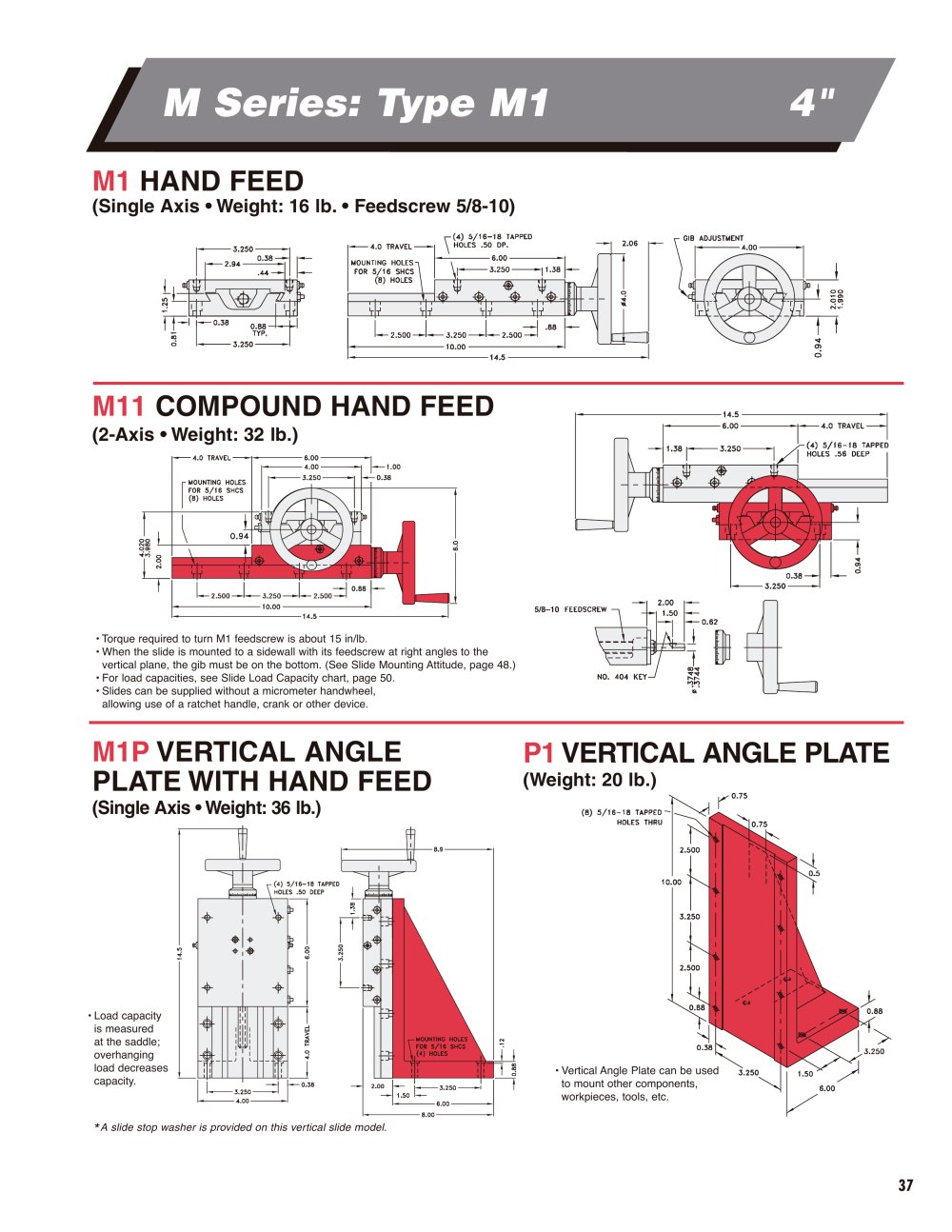

M Series: Type M14"

M1HAND FEED
(Single Axis • Weight:16 lb.• Feedscrew 5/8-10) M11COMPOUND HAND FEED
(2-Axis • Weight:32 lb.) 5/8–10 • Torque required to turn M1 feedscrew is about 15 in/lb.• When the slide is mounted to a sidewall with its feedscrew at right angles to the vertical plane, the gib must be on the bottom. (See Slide Mounting Attitude, page 48.)• For load capacities, see Slide Load Capacity chart, page 50. • Slides can be supplied without a micrometer handwheel, allowing use of a ratchet handle, crank or other device. • Load capacity is measured at the saddle; overhanging load decreases capacity. M1PVERTICAL ANGLEPLATE WITH HAND FEED P1VERTICAL ANGLE PLATE
(Weight:20 lb.) (Single Axis • Weight:36 lb.) • Vertical Angle Plate can be used to mount other components, workpieces, tools, etc. * A slide stop washer is provided on this vertical slide model. 37
