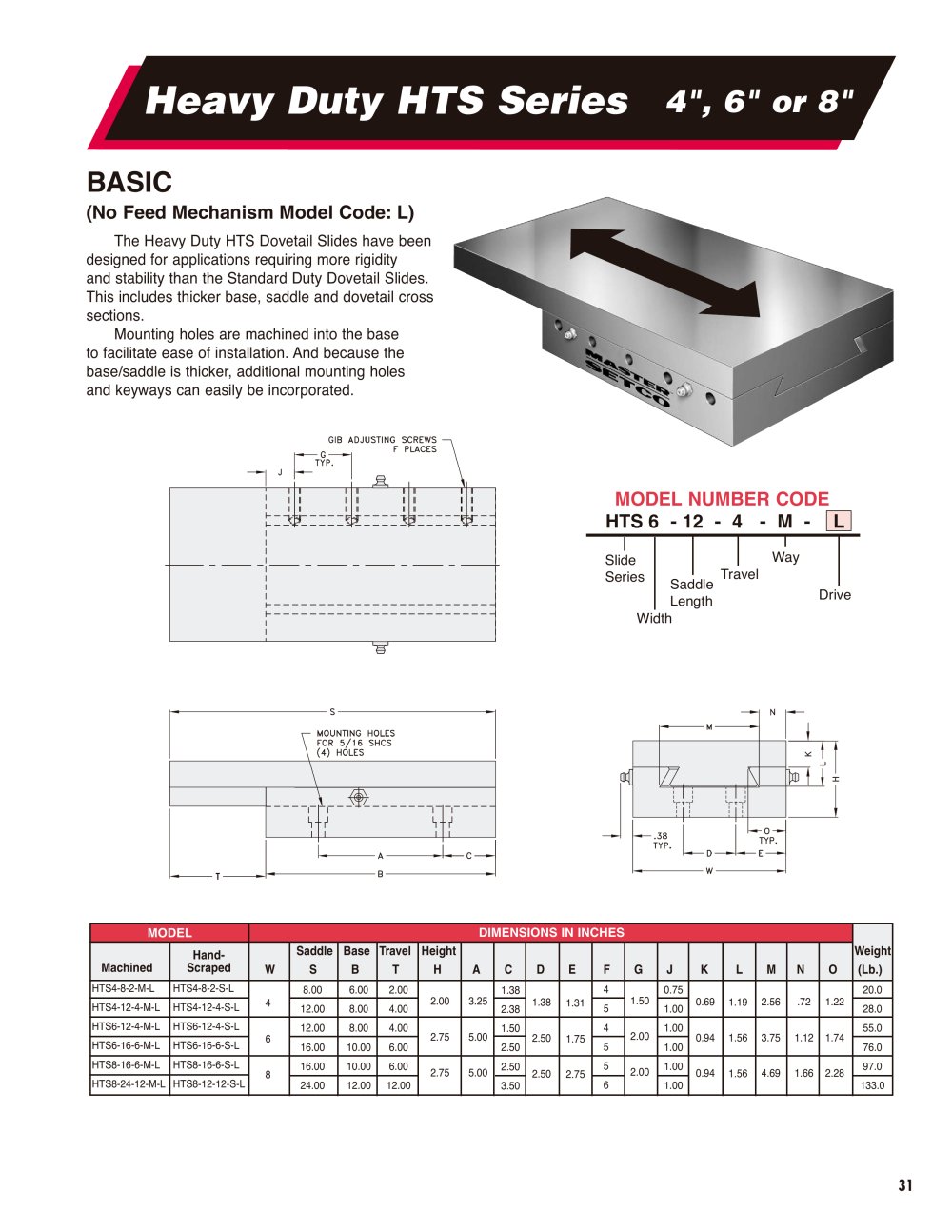

Heavy Duty HTS Series 4", 6" or 8"

BASIC

(No Feed Mechanism Model Code: L)

The Heavy Duty HTS Dovetail Slides have been designed for applications requiring more rigidity and stability than the Standard Duty Dovetail Slides. This includes thicker base, saddle and dovetail cross sections.

Mounting holes are machined into the base to facilitate ease of installation. And because the base/saddle is thicker, additional mounting holes and keyways can easily be incorporated.

MODEL NUMBER CODE HTS 6 - 12 - 4 - M - [L]

Slide Series

Way

Travel

Saddle Length

Drive

Width


	—-M-»	1 ^N	\ ₁
			«I ■
	*77.* F
ili ill S-r-H S-T-r¹ il! ! 1 !


—-s-— v- MOUNTING HOLES \ FOR 5/16 SHCS \ (4) HOLES
\

—-T-—	I I	I I -r H" 1 1	1 "I¹1
—-T-—		—-A-— -B-

U-o-TYP E —


MODEL		DI						MENSIONS IN INCHES											Weight (Lb.)
Machined	Hand-Scraped	W	Saddle S	Base B	Travel T	Height H	A	C	D	E	F	G	J	K	L	M	N	O	Weight (Lb.)
HTS4-8-2-M-L	HTS4-8-2-S-L	4	8.00	6.00	2.00	2.00	3.25	1.38 2.38	1.38	1.31	4	1.50	0.75	0.69	1.19	2.56	.72	1.22	20.0
HTS4-12-4-M-L	HTS4-12-4-S-L	4	12.00	8.00	4.00	2.00	3.25	1.38 2.38	1.38	1.31	5	1.50	1.00	0.69	1.19	2.56	.72	1.22	28.0
HTS6-12-4-M-L	HTS6-12-4-S-L	6	12.00	8.00	4.00	2.75	5.00	1.50	2.50	1.75	4	2.00	1.00	0.94	1.56	3.75	1.12	1.74	55.0
HTS6-16-6-M-L	HTS6-16-6-S-L	6	16.00	10.00	6.00	2.75	5.00	2.50	2.50	1.75	5	2.00	1.00	0.94	1.56	3.75	1.12	1.74	76.0
HTS8-16-6-M-L	HTS8-16-6-S-L	8	16.00	10.00	6.00	2.75	5.00	2.50	2.50	2.75	5	2.00	1.00	0.94	1.56	4.69	1.66	2.28	97.0
HTS8-24-12-M-L	HTS8-12-12-S-L	8	24.00	12.00	12.00	2.75	5.00	3.50	2.50	2.75	6	2.00	1.00	0.94	1.56	4.69	1.66	2.28	133.0
