| | | Heavy Duty HTS Series | | |
| | | |
| | | • HTS Slide Widths 4", 6" or 8" • Thicker Base, Saddle and Dovetail Cross-Section | | |
| | | |
| | | Extended Saddle provides increased reach with reduced interference. | | |

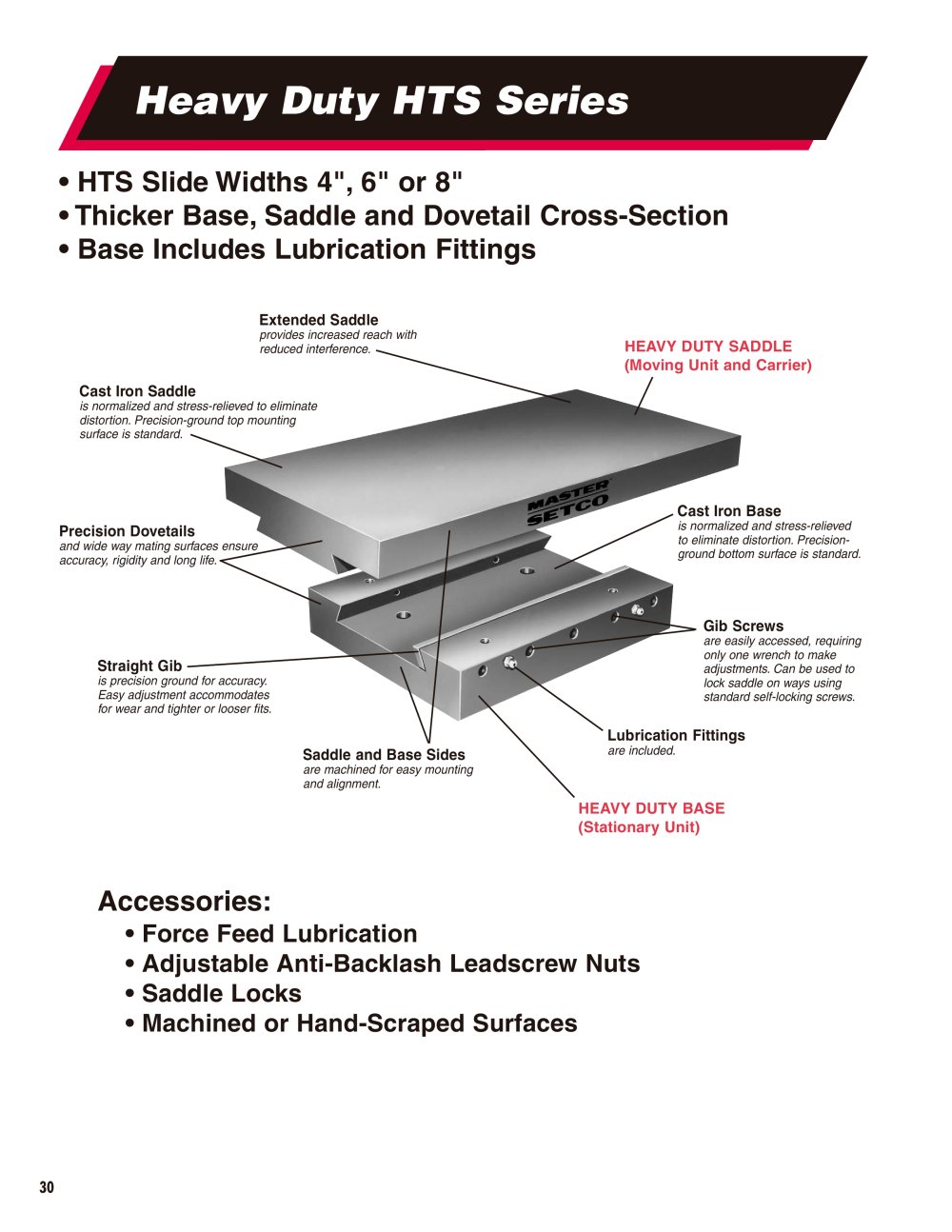

| | | HEAVY DUTY SADDLE (Moving Unit and Carrier) | | |
| | | |
| | | |
| | | Cast Iron Saddle is normalized and stress-relieved to eliminate distortion.Precision-ground top mounting surface is standard. | | |
| | | |
| | | Cast Iron Base is normalized and stress-relieved to eliminate distortion.Precision-ground bottom surface is standard. | | |
| | | Precision Dovetails and wide way mating surfaces ensure accuracy, rigidity and long life. | | |
| | | |
| | | |
| | | Gib Screws are easily accessed, requiring only one wrench to make adjustments.Can be used to lock saddle on ways using standard self-locking screws. | | |
| | | Straight Gib is precision ground for accuracy. Easy adjustment accommodates for wear and tighter or looser fits. | | |
| | | |
| | | |
| | | Lubrication Fittings are included. | | |
| | | Saddle and Base Sides are machined for easy mounting and alignment. | | |
| | | |
| | | |
| | | IEAVY DUTY BASE Stationary Unit) | | |
| | | |
| | | Accessories: • Force Feed Lubrication • Saddle Locks • Machined or Hand-Scraped Surfaces | | |
| | | |
