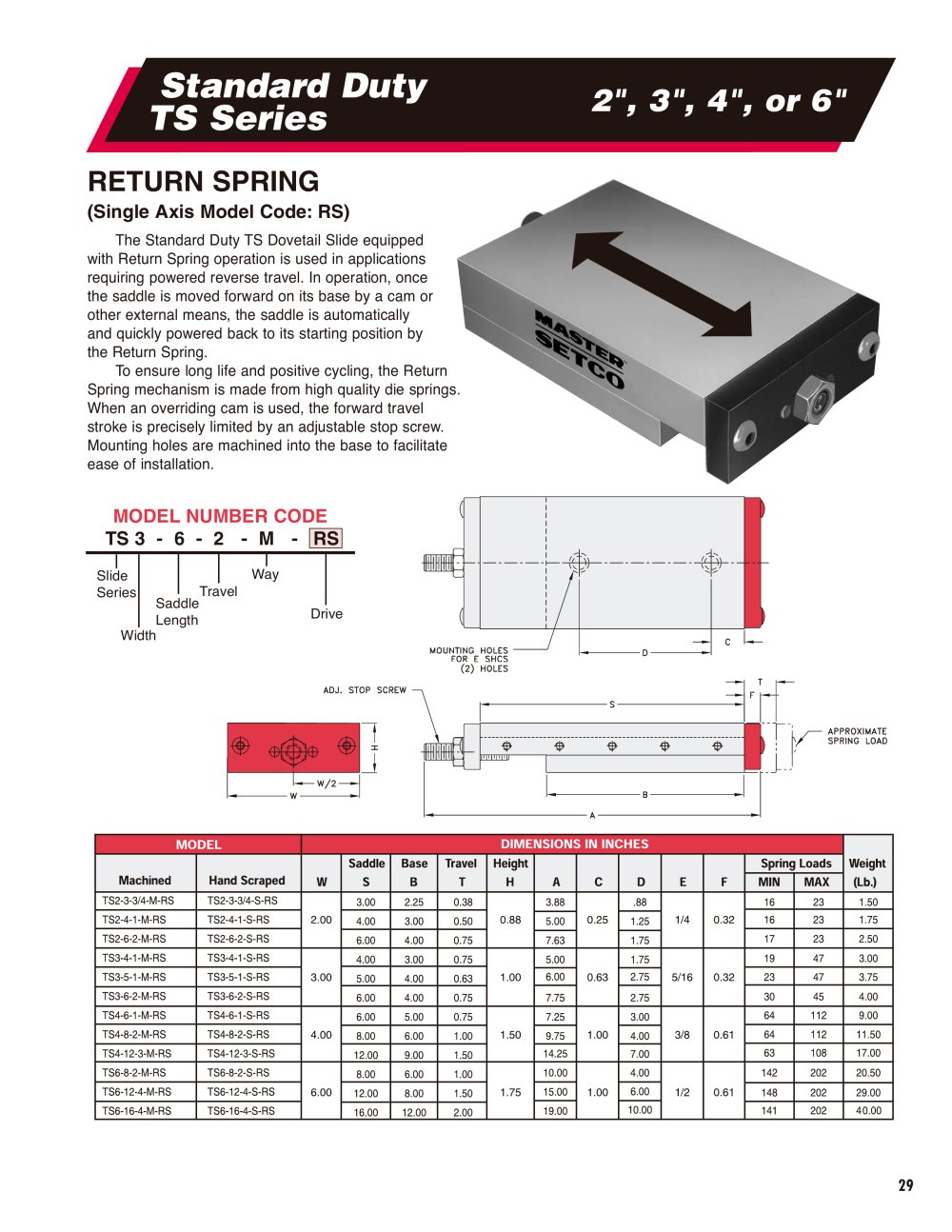

Standard Duty TS Series

2", 3", 4", or 6"

RETURN SPRING

(Single Axis Model Code:RS)

The Standard Duty TS Dovetail Slide equippedwith Return Spring operation is used in applications requiring powered reverse travel. In operation, once the saddle is moved forward on its base by a cam or other external means, the saddle is automatically and quickly powered back to its starting position by the Return Spring.To ensure long life and positive cycling, the ReturnSpring mechanism is made from high quality die industrial springs. When an overriding cam is used, the forward travel stroke is precisely limited by an adjustable stop screw. Mounting holes are machined into the base to facilitate ease of installation.

MODEL NUMBER CODE TS 3 - 6 - 2 - M - RS
