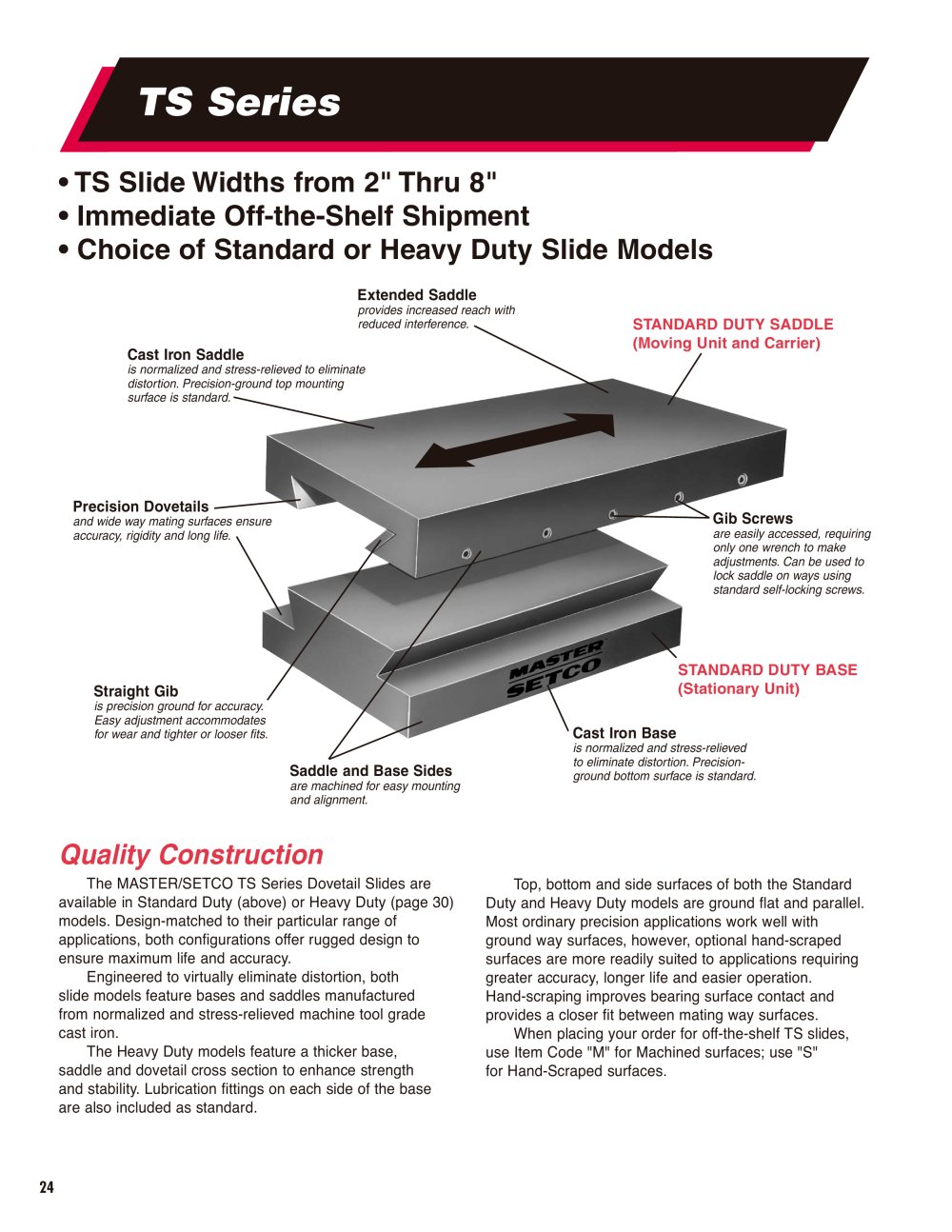

| | | TS Series | | |
| | | |
| | | • TS Slide Widths from 2" Thru 8" • Immediate Off-the-Shelf Shipment • Choice of Standard or Heavy Duty Slide Models | | |
| | | |
| | | Extended Saddle provides increased reach with reduced interference. | | |
| | | STANDARD DUTY SADDLE (Moving Unit and Carrier) | | |
| | | |
| | | Cast Iron Saddle is normalized and stress-relieved to eliminate distortion.Precision-ground top mounting surface is standard. | | |
| | | |
| | | |
| | | Precision Dovetails and wide way mating surfaces ensure accuracy, rigidity and long life. | | |
| | | Gib Screws are easily accessed, requiring only one wrench to make adjustments.Can be used to lock saddle on ways using standard self-locking screws. | | |
| | | |
| | | |
| | | STANDARD DUTY BASE (Stationary Unit) | | |
| | | Straight Gib is precision ground for accuracy. Easy adjustment accommodates for wear and tighter or looser fits. | | |
| | | |
| | | Cast Iron Base is normalized and stress-relieved to eliminate distortion.Precision-ground bottom surface is standard. | | |
| | | |
| | | Saddle and Base Sides are machined for easy mounting and alignment. | | |
| | | |
| | | |
| | | Quality Construction The MASTER/SETCO TS Series Dovetail Slides are available in Standard Duty (above) or Heavy Duty (page 30) models. Design-matched to their particular range of applications, both configurations offer rugged design to ensure maximum life and accuracy. Engineered to virtually eliminate distortion, both slide models feature bases and saddles manufactured from normalized and stress-relieved machine tool grade cast iron. The Heavy Duty models feature a thicker base, saddle and dovetail cross section to enhance strength and stability. Lubrication fittings on each side of the base are also included as standard. | | |
| | | Top, bottom and side surfaces of both the Standard and Heavy Duty models are ground flat and parallel. t ordinary precision applications work well with -------surfaces, however, optional hand-scraped more readily suited to applications requiring | | |
| | | yiuu surfa | |
| | | |
| | | |
| | | greater accuracy, longer life and easier operation. | | |
| | | |
| | | Hand-scraping improves industrial bearing surface contact and a closer fit between mating n placing your order for off-the-sh use Item Code "M" for Machined surfaces; | | |
| | | s, | |
| | | |
| | | |
| | | for Hand-Scraped surfaces. | |
| | | |
| | | |
