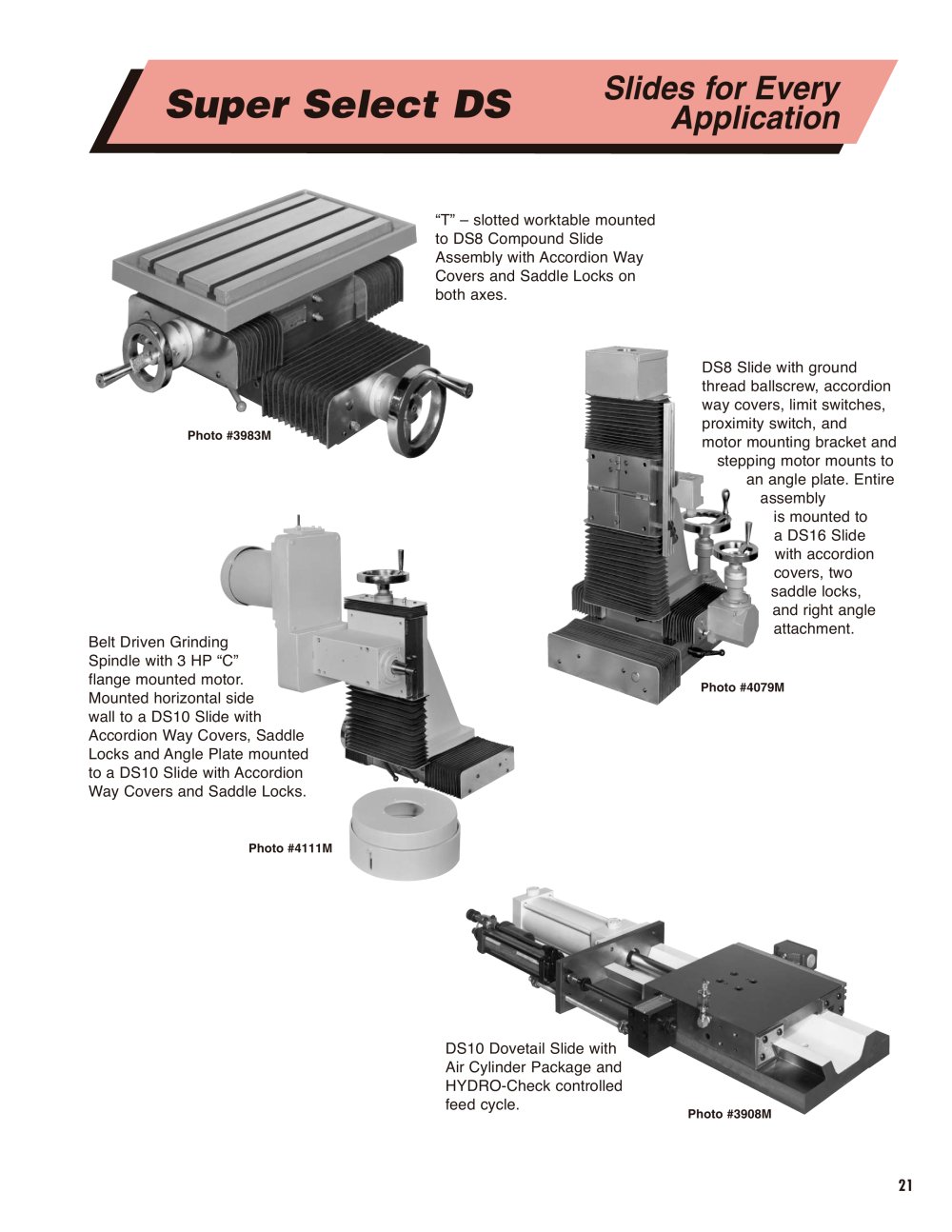

Super Select DS

Slides for EveryApplication

“T” – slotted worktable mountedto DS8 Compound Slide Assembly with Accordion Way Covers and Saddle Locks on both axes.DS8 Slide with groundthread ballscrew, accordion way covers, limit switches, proximity switch, and motor mounting bracket andstepping motor mounts toan angle plate. Entireassembly is mounted to a DS16 Slidewith accordioncovers, two saddle locks, and right angleattachment.Belt Driven Grinding Spindle with 3 HP“C” flange mounted motor. Mounted horizontal side wall to a DS10 Slide with Accordion Way Covers, Saddle Locks and Angle Plate mounted to a DS10 Slide with AccordionWay Covers and Saddle Locks. DS10 Dovetail Slide with Air cylinder Package and HYDRO-Check controlled feed cycle.
Photo #3983M Photo #4111M Photo #3908M Photo #4079M 21
