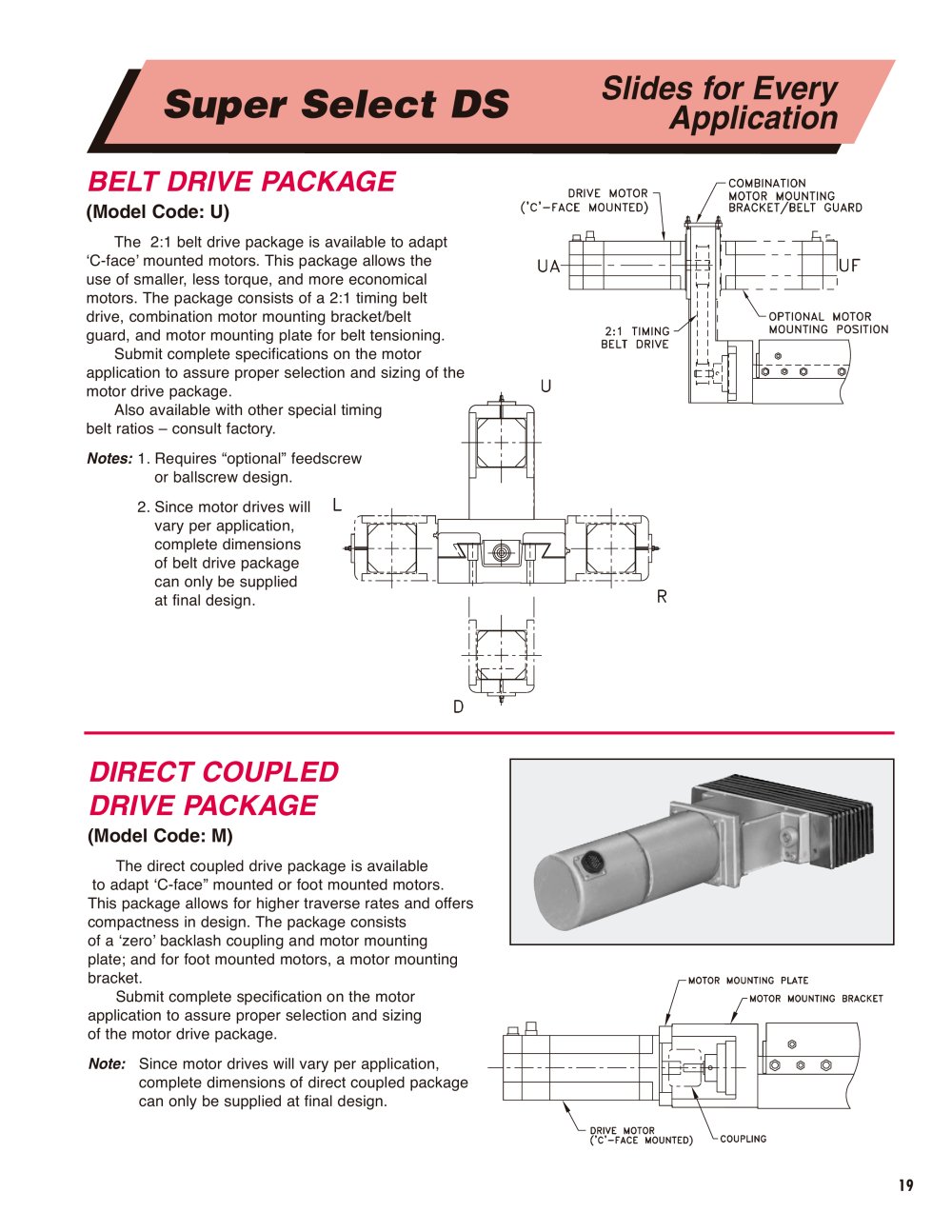

Super Select DS

Slides for EveryApplication

BELT DRIVE PACKAGE

(Model Code:U)

The 2:1 belt drive package is available to adapt ‘C-face’mounted motors. This package allows the use of smaller, less torque, and more economical motors. The package consists of a 2:1 timing belt manufacturer drive, combination motor mounting bracket/belt guard, and motor mounting plate for belt tensioning.Submit complete specifications on the motor application to assure proper selection and sizing of the motor drive package.Also available with other special timing belt ratios – consult factory. Notes: 1.Requires “optional” feedscrew or ballscrew design. 2.Since motor drives will vary per application, complete dimensions of belt drive package can only be supplied at final design.

DIRECT COUPLED DRIVE PACKAGE

(Model Code:M)

The direct coupled drive package is availableto adapt ‘C-face” mounted or foot mounted motors. This package allows for higher traverse rates and offers compactness in design. The package consists of a ‘zero’backlash coupling and motor mounting plate; and for foot mounted motors, a motor mounting bracket.Submit complete specification on the motor application to assure proper selection and sizing of the motor drive package. Note: Since motor drives will vary per application, complete dimensions of direct coupled package can only be supplied at final design. 19
