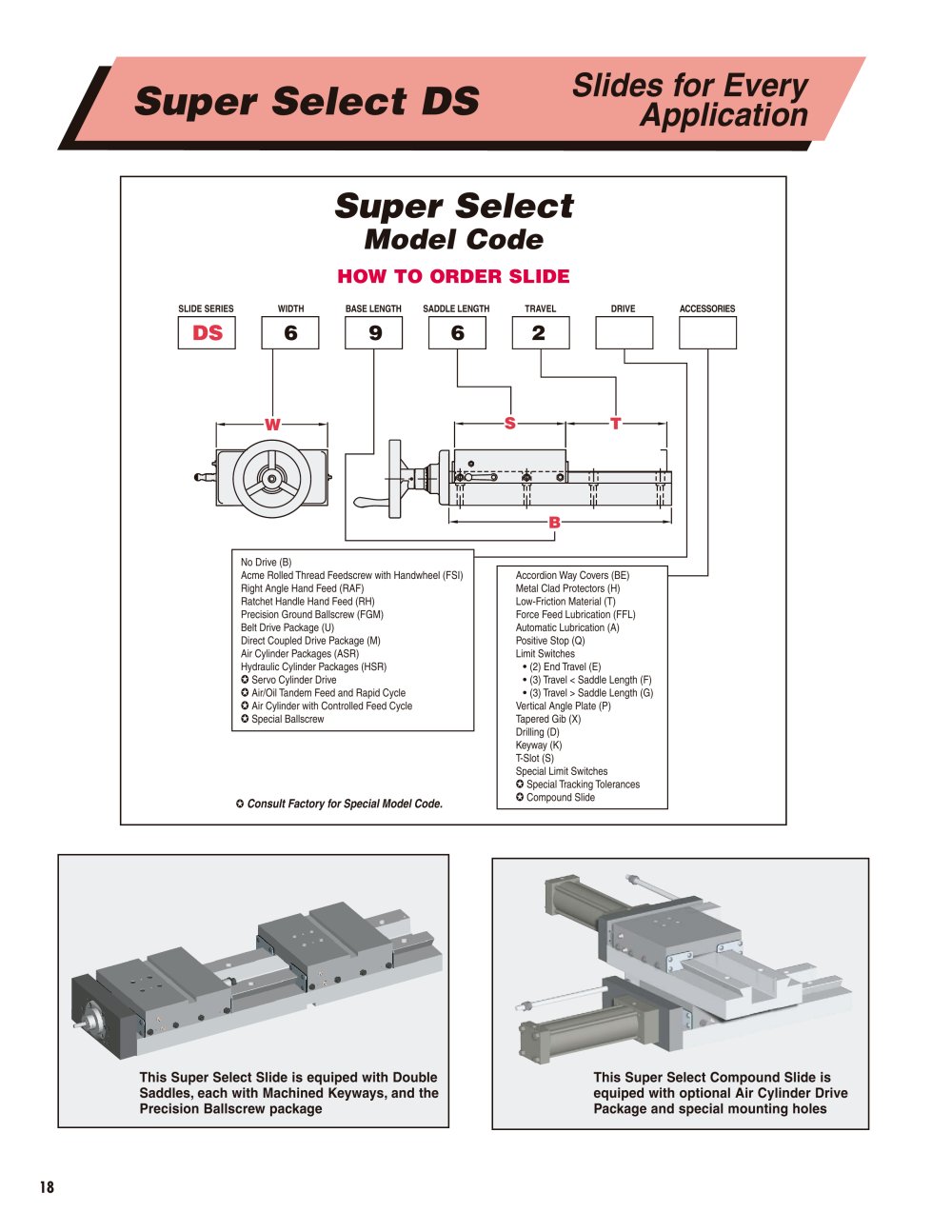

Super Select DS

Slides for EveryApplication

Super Select

Model Code

HOW TO ORDER SLIDE

SLIDE SERIESWIDTHBASE LENGTHSADDLE LENGTHTRAVELDRIVEACCESSORIES

DS6962

WSTB

No Drive (B)Acme Rolled Thread Feedscrew with Handwheel (FSI) Right Angle Hand Feed (RAF) Ratchet Handle Hand Feed (RH) Precision Ground Ballscrew (FGM) Belt Drive Package (U) Direct Coupled Drive Package (M) Air cylinder Packages (ASR) Hydraulic cylinder Packages (HSR) Accordion Way Covers (BE) Metal Clad Protectors (H) Low-Friction Material (T) Force Feed Lubrication (FFL) Automatic lubrication (A) Positive Stop (Q) Limit Switches • (2) End Travel (E)

✪

Servo cylinder Drive • (3) Travel < Saddle Length (F)

✪

Air/Oil Tandem Feed and Rapid Cycle • (3) Travel > Saddle Length (G)Vertical Angle Plate (P) Tapered Gib (X) Drilling (D) Keyway (K) T-Slot (S) Special Limit Switches

✪

Air Cylinder with Controlled Feed Cycle

✪

Special Ballscrew

✪

Special Tracking Tolerances

✪ Consult Factory for Special Model Code. ✪

Compound Slide

This Super Select Slide is equiped with DoubleSaddles,each with Machined Keyways,and the Precision Ballscrew package This Super Select Compound Slide isequiped with optional Air Cylinder Drive Package and special mounting holes
