Select DSAccessories

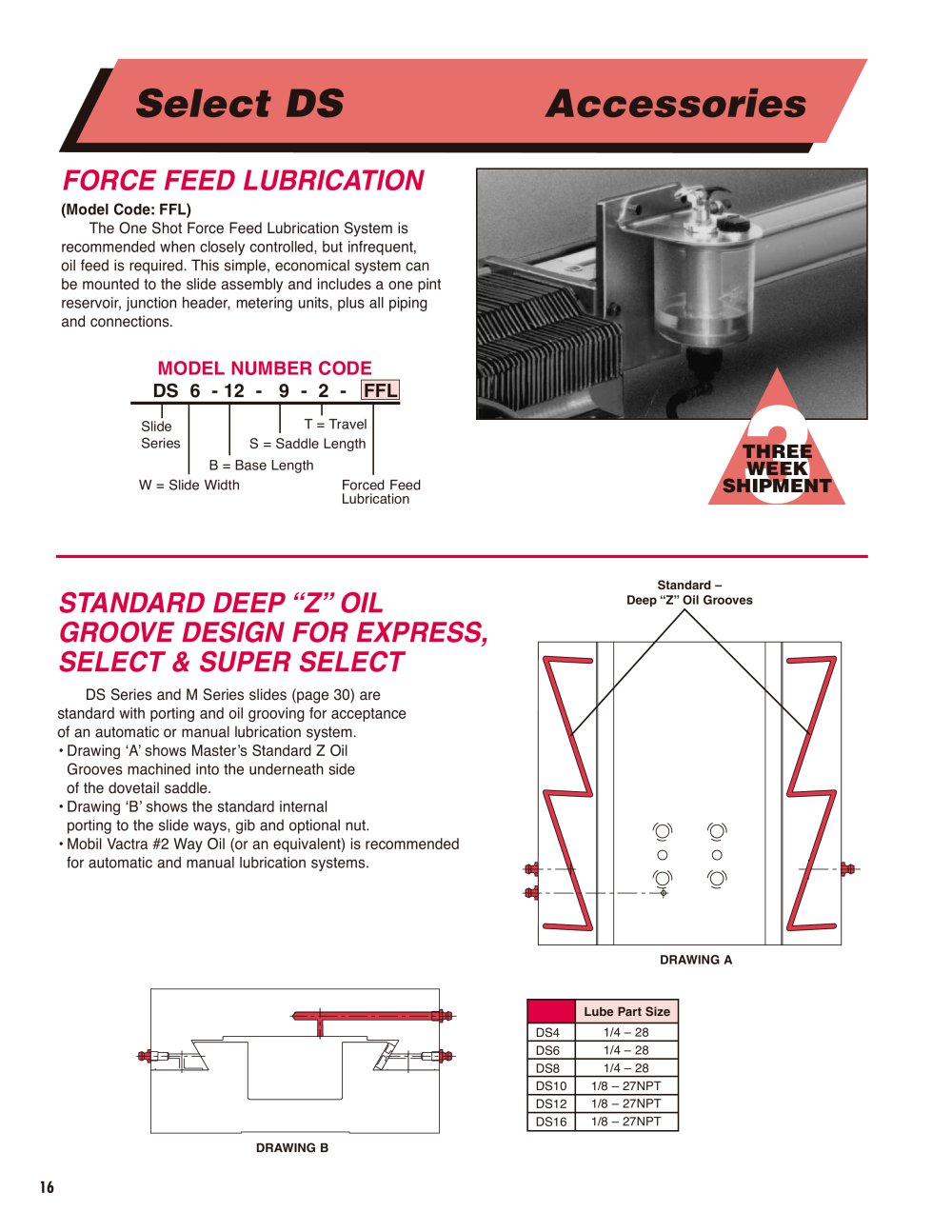

FORCE FEED LUBRICATION

(Model Code:FFL) The One Shot Force Feed Lubrication System is recommended when closely controlled, but infrequent, oil feed is required. This simple, economical system can be mounted to the industrial slide assembly and includes a one pint reservoir, junction header, metering units, plus all piping and connections.

MODEL NUMBER CODEDS 6 - 12 - 9 - 2 - FFL

Slide SeriesW = Slide WidthS = Saddle LengthB = Base LengthT= TravelForced FeedLubrication

3

THREE WEEKSHIPMENT

STANDARD DEEP “Z”OILGROOVE DESIGN FOR EXPRESS,SELECT & SUPER SELECT

DS Series and M Series slides (page 30) are standard with porting and oil grooving for acceptance of an automatic or manual lubrication system. • Drawing ‘A’shows Master’s Standard Z Oil Grooves machined into the underneath side of the dovetail saddle.• Drawing ‘B’shows the standard internal porting to the slide ways, gib and optional nut.• Mobil Vactra #2 Way Oil (or an equivalent) is recommended for automatic and manual lubrication systems.
Lube Part Size DRAWING A DRAWING B Standard –Deep “Z”Oil Grooves 1/4 – 281/4 – 281/4 – 281/8 – 27NPT1/8 – 27NPT 1/8 – 27NPTDS4DS6DS8DS10DS12 DS16 16
