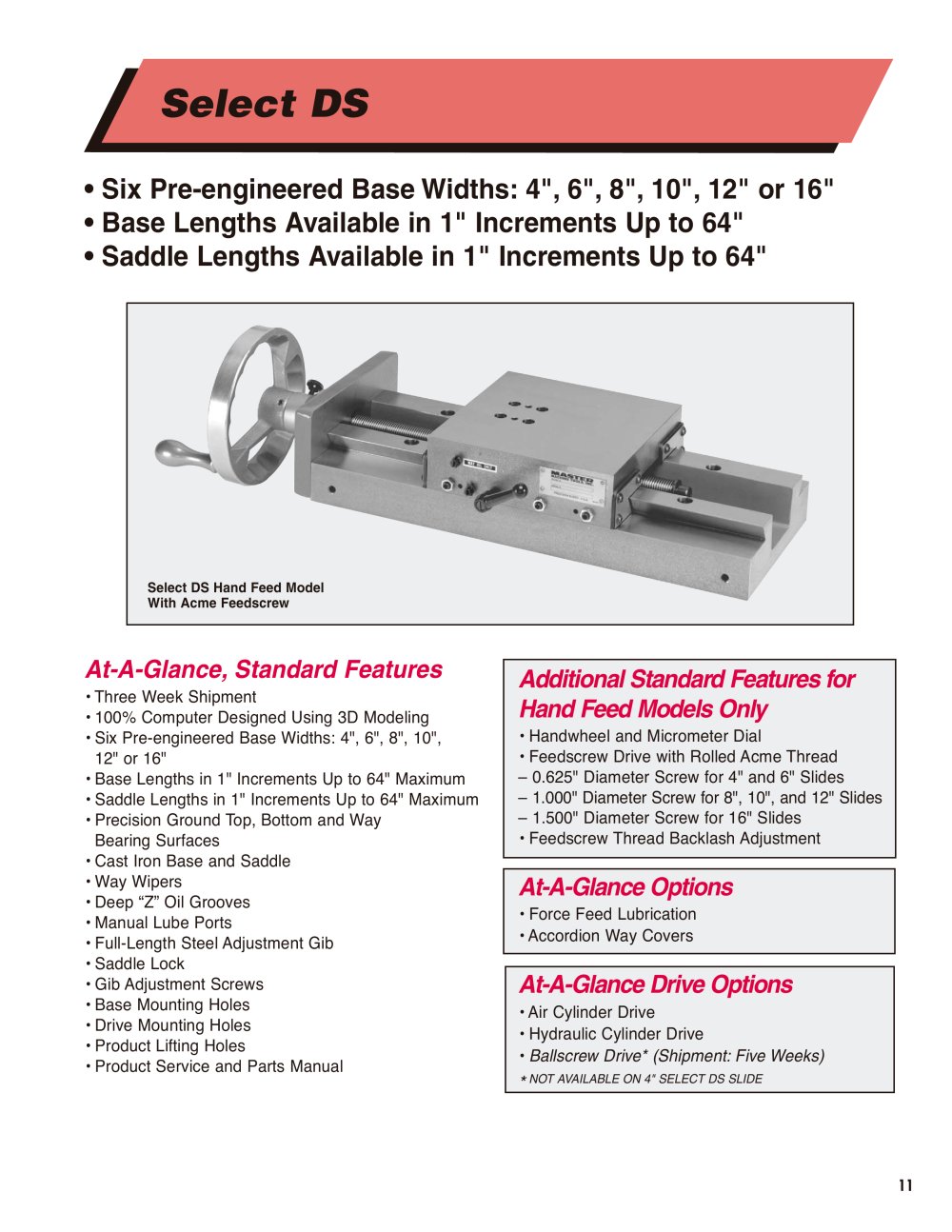

Select DS

• Six Pre-engineered Base Widths:4",6",8",10",12" or 16" • Base Lengths Available in 1" Increments Up to 64" • Saddle Lengths Available in 1" Increments Up to 64"

Select DS Hand Feed Model With Acme Feedscrew

At-A-Glance,Standard Features

• Three Week Shipment • 100% Computer Designed Using 3D Modeling • Six Pre-engineered Base Widths: 4", 6", 8", 10", 12" or 16" • Base Lengths in 1" Increments Up to 64" Maximum • Saddle Lengths in 1" Increments Up to 64" Maximum • Precision Ground Top, Bottom and Way Bearing Surfaces• Cast Iron Base and Saddle • Way Wipers • Deep “Z” Oil Grooves • Manual Lube Ports • Full-Length Steel Adjustment Gib • Saddle Lock • Gib Adjustment Screws • Base Mounting Holes • Drive Mounting Holes • Product Lifting Holes • Product Service and Parts Manual

Additional Standard Features forHand Feed Models Only

• Handwheel and Micrometer Dial • Feedscrew Drive with Rolled Acme Thread – 0.625" Diameter Screw for 4" and 6" Slides – 1.000" Diameter Screw for 8", 10", and 12" Slides– 1.500" Diameter Screw for 16" Slides • Feedscrew Thread Backlash Adjustment

At-A-Glance Options

• Force Feed Lubrication• Accordion Way Covers

At-A-Glance Drive Options

• Air cylinder Drive • Hydraulic cylinder manufacturer Drive • Ballscrew Drive* (Shipment:Five Weeks)

*

NOT AVAILABLE ON 4" SELECT DS INDUSTRIAL SLIDE 11
