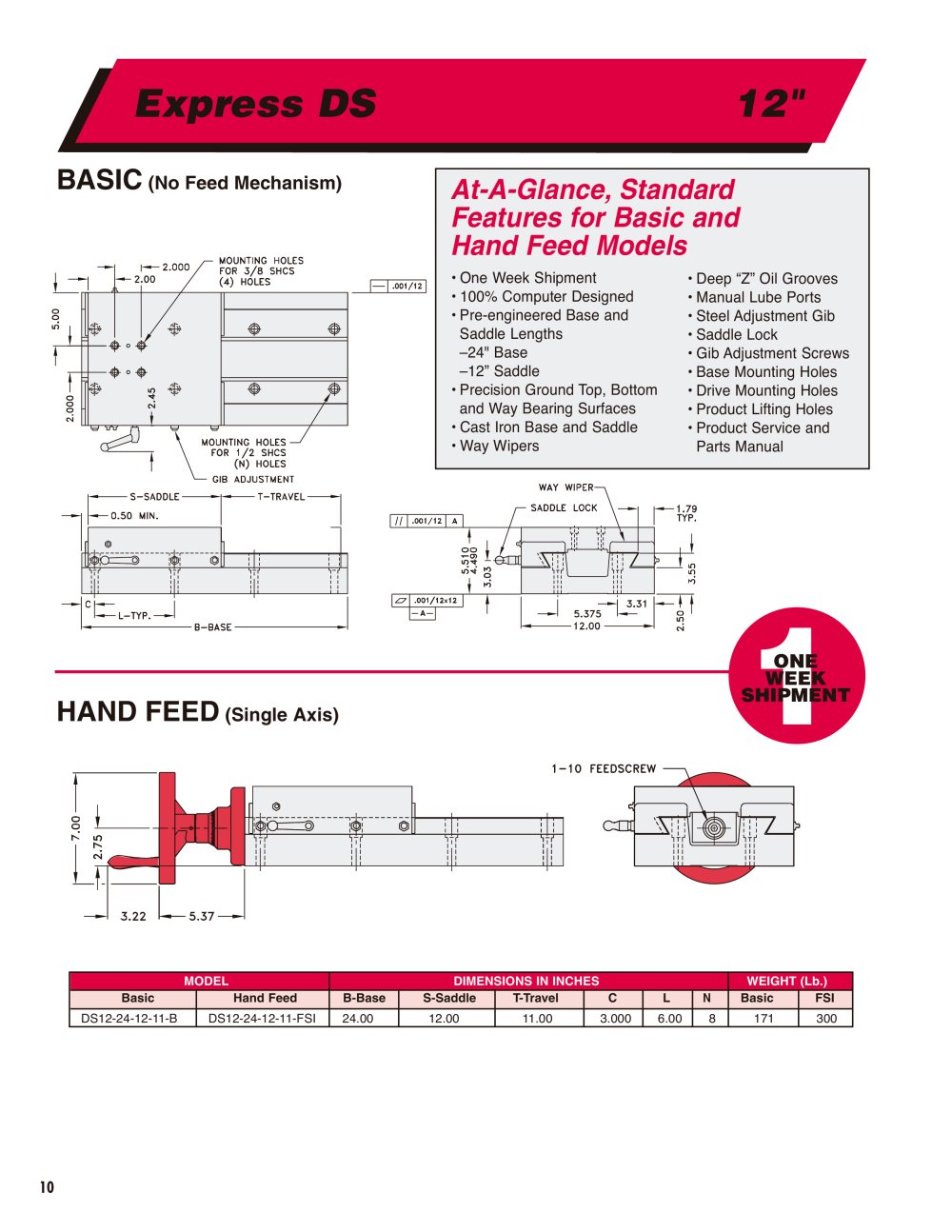

Express DS12"

BASIC

(No Feed Mechanism)

At-A-Glance,Standard Features for Basic and Hand Feed Models

• One Week Shipment• 100% Computer Designed • Pre-engineered Base andSaddle Lengths –24" Base –12” Saddle • Precision Ground Top, Bottom and Way Bearing Surfaces• Cast Iron Base and Saddle • Way Wipers • Deep “Z” Oil Grooves• Manual Lube Ports • Steel Adjustment Gib • Saddle Lock • Gib Adjustment Screws • Base Mounting Holes • Drive Mounting Holes • Product Lifting Holes • Product Service andParts Manual

ONE WEEKSHIPMENT

HANDFEED

(Single Axis)

1

MODELDIMENSIONS IN INCHESWEIGHT (Lb.) BasicHand Feed B-BaseS-Saddle T-Travel C L N BasicFSI DS12-24-12-11-BDS12-24-12-11-FSI 24.0012.0011.003.000 6.00 8 171300

10
