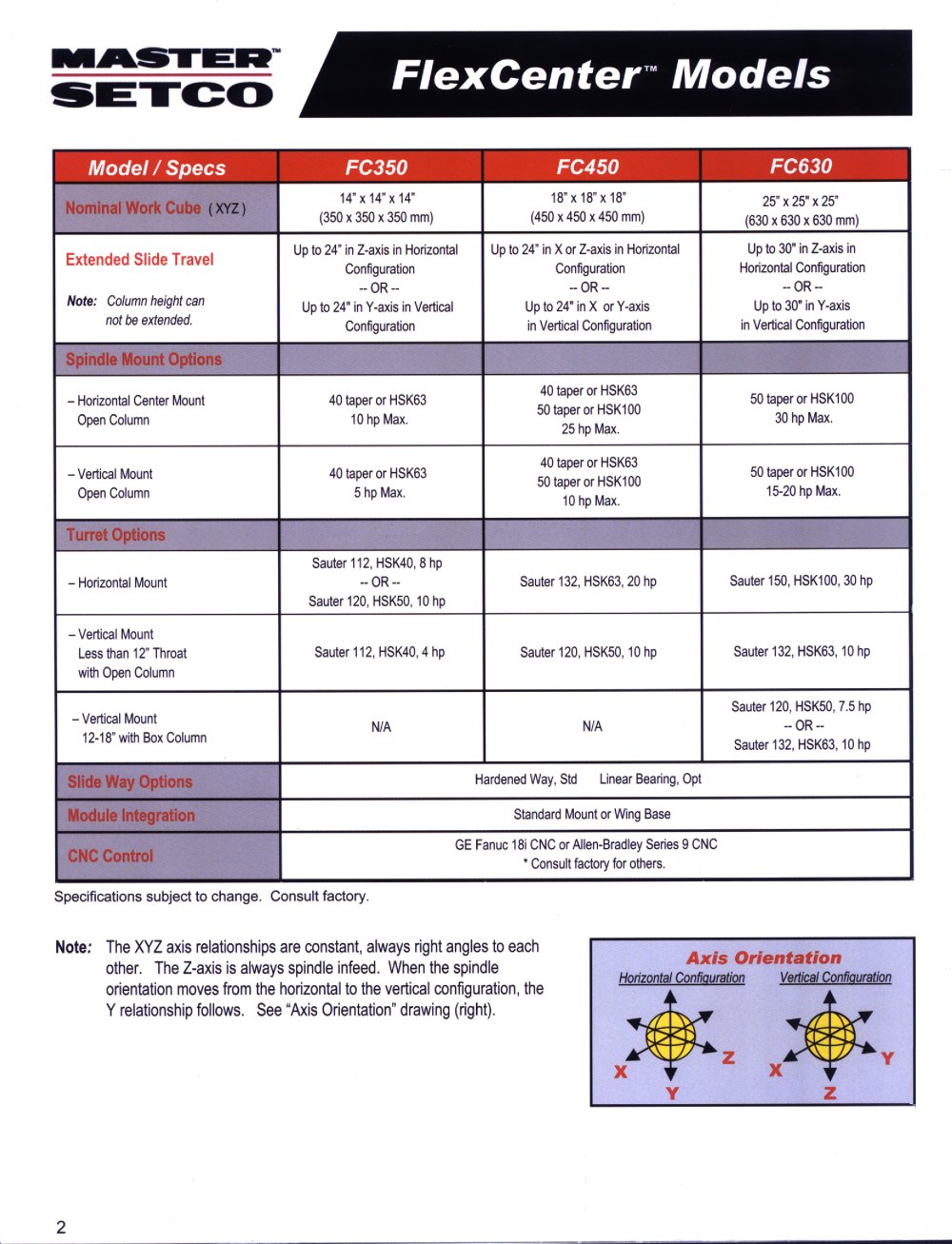

FlexCenter Models


*Model / Specs*	*FC350*	*FC450*	*FC630*
Nominal Work Cube ( xyz )	14" x 14" x 14" (350 x 350 x 350 mm)	18" x 18" x 18" (450x450x450 mm)	25" x 25" x 25" (630 x 630 x 630 mm)
Extended Slide Travel *Note:* Column height can not be extended.	Up to 24" in Z-axis in Horizontal Configuration -- OR --Up to 24" in Y-axis in Vertical Configuration	Up to 24" in X or Z-axis in Horizontal Configuration -- OR --Up to 24" in X or Y-axis in Vertical Configuration	Up to 30" in Z-axis in Horizontal Configuration - OR --Up to 30" in Y-axis in Vertical Configuration
Spindle Mount Options
- Horizontal Center mount Open Column	40 taper or HSK63 10 hp Max.	40 taper or HSK63 50taperorHSK100 25 hp Max.	50 taper or HSK100 30 hp Max.
- Vertical Mount Open Column	40 taper or HSK63 5 hp Max.	40 taper or HSK63 50 taper orHSK100 10 hp Max.	50 taper orHSK100 15-20 hp Max.
Turret Options
- Horizontal Mount	Sauter 112. HSK40,8hp -- OR -Sauter 120, HSK50,10 hp	Sauter 132, HSK63,20 hp	Sauter 150, HSK100,30 hp
- Vertical Mount Less than 12" Throat with Open Column	Sauter 112, HSK40,4hp	Sauter 120, HSK50,10 hp	Sauter 132, HSK63,10hp
- Vertical Mount 12-18" with Box Column	N/A	N/A	Sauter 120, HSK50, 7.5 hp - OR -Sauter 132, HSK63,10 hp
Slide Way Options	Hardened Way, Std Linear bearing, Opt
Module Integration	Standard Mount or Wing Base
CNC Control	GE Fanuc 18i CNC or Allen-Bradley Series 9 CNC * Consult factory for others.

Specifications subject to change. Consult factory.


	*Axis Orientation*
Horizontal ConfiQuration		Vertical ConfiQuration
à	i	à	i

X 1	r	X i	t
Y		Z

Note: The XYZ axis relationships are constant, always right angles to each other. The Z-axis is always spindle infeed. When the spindle orientation moves from the horizontal to the vertical configuration, the Y relationship follows. See "Axis Orientation" drawing (right).
