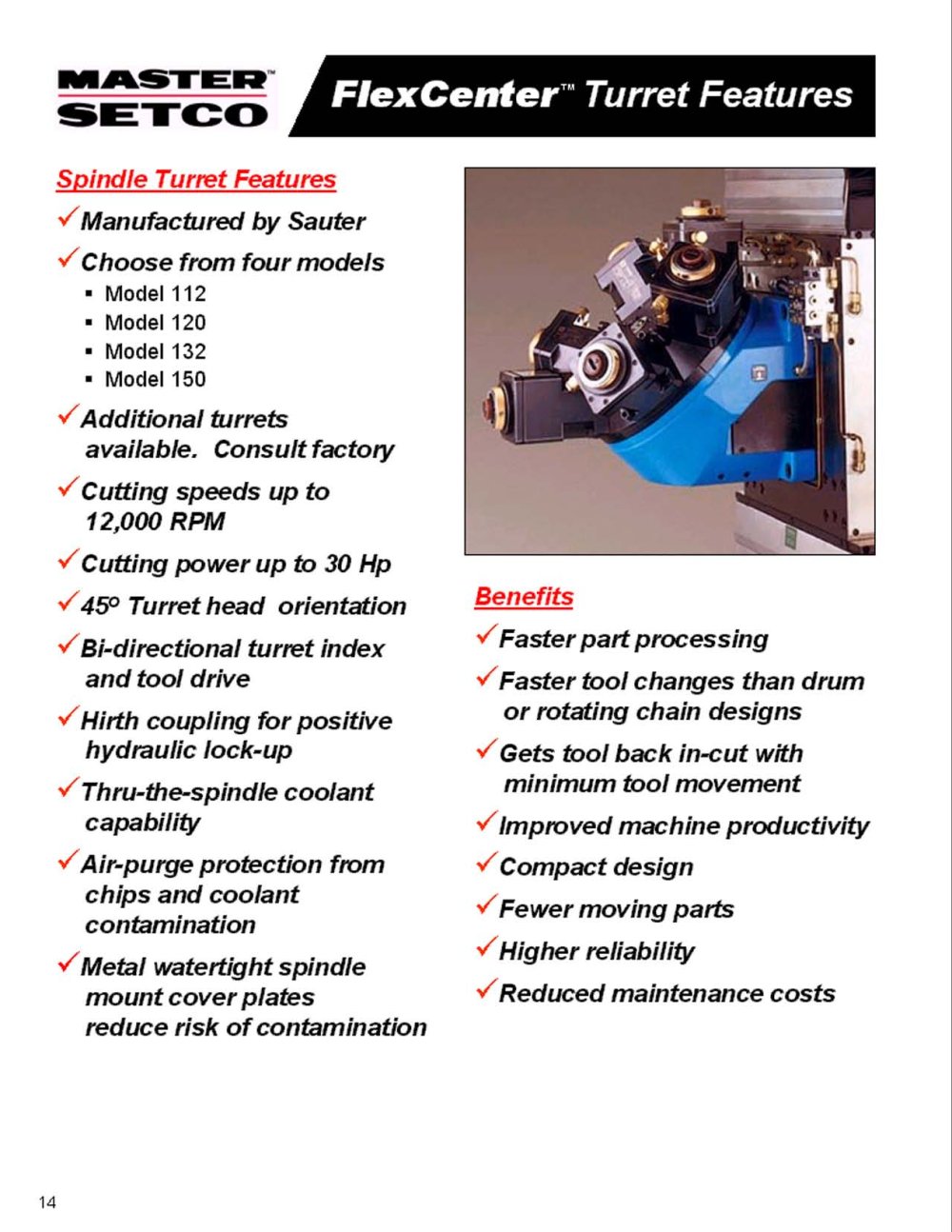

F/ex Center Turret Features
Spindle Turret Features
J Manufactured by Sauter
^Choose from four models - Model 112 * Model 120
■ Model 132
■ Model 150
^Additional turrets
available. Consult factory
S Cutting speeds up to 12,000 RPM
S Cutting power up to 30 Hp
* 45° Turret head orientation
^ Bi-directional turret index and tool drive
^Hirth coupling for positive hydraulic lock-up
^Thru-the-spindle coolant capability
* Air-purge protection from chips and coolant contamination
^ Metal watertight spindle mount cover plates reduce risk of contamination
Benefits
/ Faster part processing
^Faster tool changes than drum or rotating chain designs
w Gets tool back in-cut with minimum tool movement
^ improved machine productivity
^Compact design
^Fewer moving parts
^ Higher reliability
^ Reduced maintenance costs
14
